Brumberg 41444653 LED recessed light LED (monochrome) 6 W Brown

Recessed LED downlight kit with square bronze trim, white driver, and black junction box connected by cables.<br>
Recessed LED downlight with square trim, connected to black control box and white driver module.

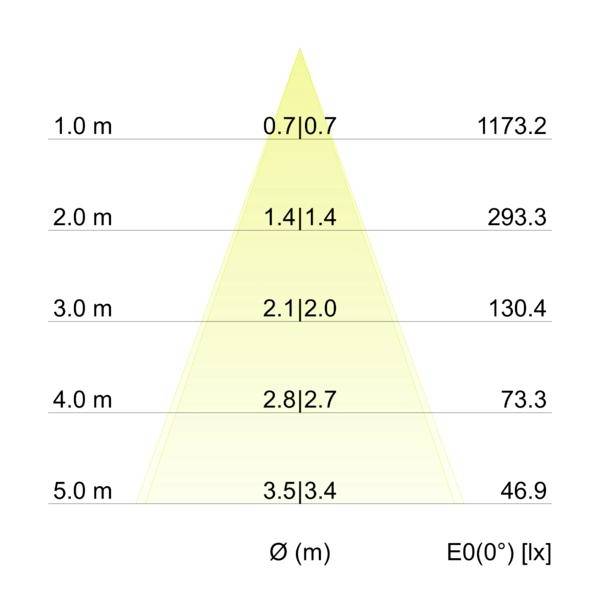

Illuminance chart showing light spread versus distance: at 1-5 m, beam diameter grows from 0.7 to 3.5 m and E0(0°) drops from 1173.2 to 46.9 lx.<br>
Polar light-distribution diagram showing a narrow, symmetric yellow beam centered vertically, with angle markings and intensity labels from 460 to 1840 cd/klm.<br>
Technical drawing of a square recessed light fixture, showing mounting dimensions: 68 wide, 50 high, 82 x 82 opening, max 15, and 3 clearance.
Technical dimension drawing of a recessed light fixture, showing 68 mm width, 42 mm height, 82 x 82 mm cutout, and max. 15 mm mounting depth.
1/6
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

  • Power= 6 W Total luminous flux= 730 lm Colour temperature= 3000 K White

Technical specifications

Product type

LED recessed light

Operating voltage

230 V AC

No. of bulbs

1

Bulb type

LED (monochrome)

Rating per bulb

6 W

6 W

Total luminous flux

730 lm

3000 K

Colour

White

Protection screen

Clear

Radiation angle

40°

Light features

Recess mount option

Ceiling mount option

Swivelling

Incl. ballast

Dimmable

Direct light emission

Recess diameter

68 mm

Recess depth

42 mm

Protection class

II

Factory colour

Brown

Material

Aluminium

Glass

n.rel.

Dim

(L x W x H) 82 x 82 x 3 mm

Yes

Light bulb included

Yes

Colour temperature range

3000 K

Width

82 mm

Height

3 mm

Length

82 mm

Type

powder-coated

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3830880 Brumberg 41444653 LED recessed light LED (monochrome) 6 W Brown

Datasheet 3830880 Brumberg 41444653 LED recessed light LED (monochrome) 6 W Brown

User & Safety Instructions

User & Safety Instructions 3830880 Brumberg 41444653 LED recessed light LED (monochrome) 6 W Brown

User & Safety Instructions 3830880 Brumberg 41444653 LED recessed light LED (monochrome) 6 W Brown

User & Safety Instructions 3830880 Brumberg 41444653 LED recessed light LED (monochrome) 6 W Brown

Description

LED spotlight set, DALI dimmable, with connection box, brown metallic matt, square. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminium / glass / plastic, protection class: On the room side: According to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 6 3,000 W, number of lights / sockets: 38 piece, light current: 730 lm, color temperature: White, radiation angle: 1°, Adjustability: swiveling, With operating device: yes, dimmable: yes, type of dimming: DALI-2.

This text is machine translated.

Accessories

(*All information is plus legal VAT)

The necessary accessories are required to use the article as described.
