Brumberg 41644164DA 41644164DA LED recessed light
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Width 205 mm
- Protection class (IP) IP20
- Mounting width 190 mm
- Surface protection: Powder-coated
- Protection class: II
- Material of housing: Aluminium
- Length 205 mm
- Nominal voltage: 230 V
- Voltage type AC
- Bulb: LED not replaceable
- Radiation angle: Wide radiation 41-80°
- Operating device: LED operating device current-controlled
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 90-100
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Type of wiring: Finish
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on a panel: No.
- Suitable for panel mounting: Yes
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: No.
- Suitable for traverse installation: No.
- Suitable for cable system: No.
- Adjustable: Not adjustable
- With motion detector: No.
- With light sensor: No.
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Housing color: Silver
- Surface brushed: No.
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: Other

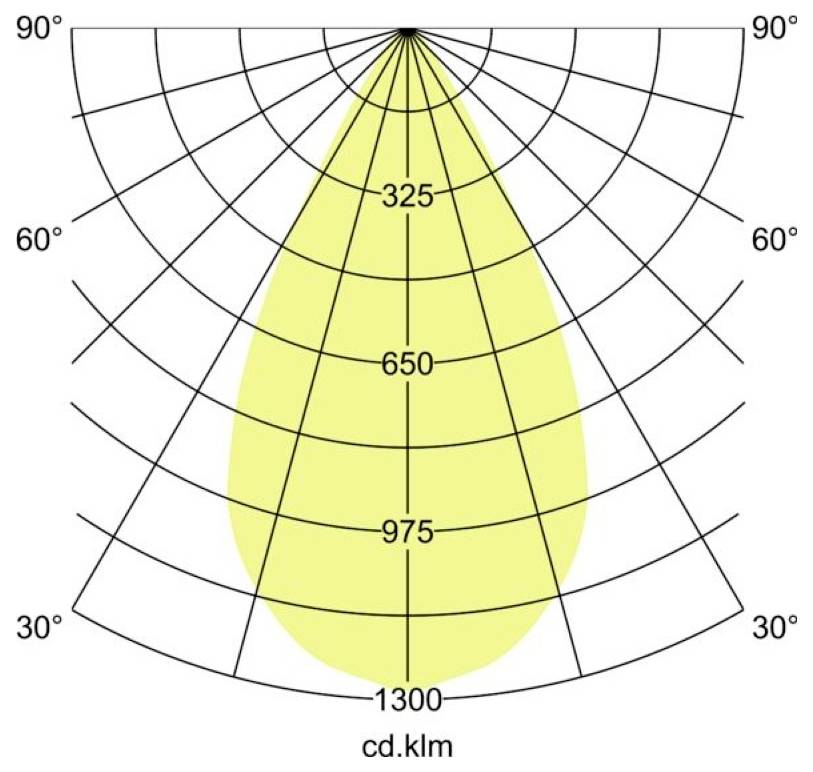

- Light distribution: Symmetric
- Light emission: Direct
- Suitable for lamp output 20.5 W
- Max. System power 20.5 W
- Luminous flux: 2618 lm
- Rated light current according to IEC 62722-2-1: 2618 lm

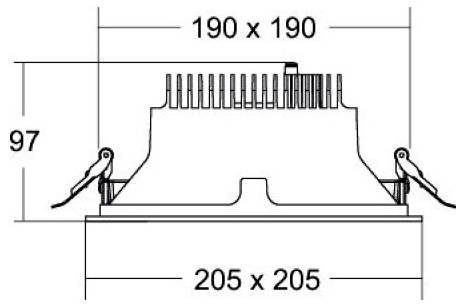

- Installation height/depth 97 mm
- Covering of the lamp with thermal insulation material is possible: No.
- Operation via Bluetooth: No.
- Cover material: Transparent plastic
- Suitable for pedestal-/floor mounting: No.
- Suitable for rail mounting: No.
- Socket: Without
- Mounting length 190 mm
- Product type
LED recessed light
n.rel.
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3544100 Brumberg 41644164DA 41644164DA LED recessed light
User & Safety Instructions
User & Safety Instructions 3544100 Brumberg 41644164DA 41644164DA LED recessed light
Description

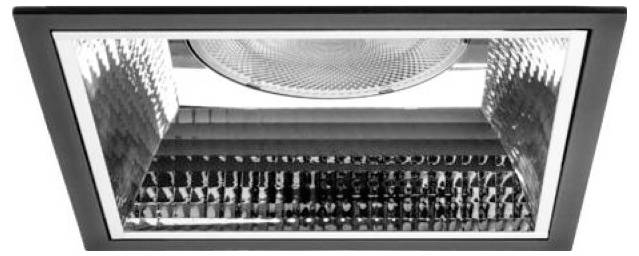

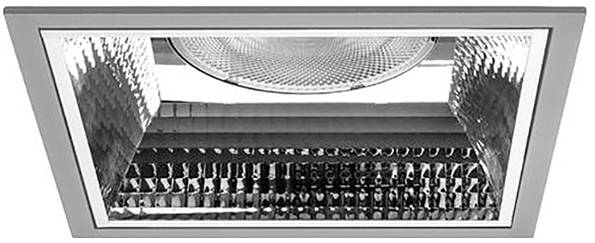

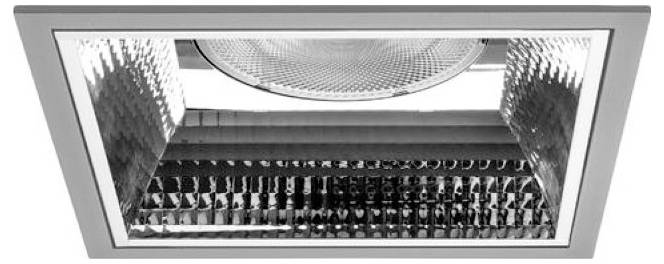

LED recessed downlight, DALI dimmable, reflector silver, faceted, structural silver, square. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Design: Without socket, mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminium / glass / plastic, protection class: Space side: According to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 20.5 4,000 W, number of bulbs / sockets: 55 piece, light current: 2,618 lm, color temperature: White, angle of radiation: 1°, Adjustable: not adjustable, with operating device: yes, type of dimming: DALI-2.
