Brumberg 49060073TW LED panel 31 W White White

White square ceiling light panel on a plain white background, shown in perspective.<br>

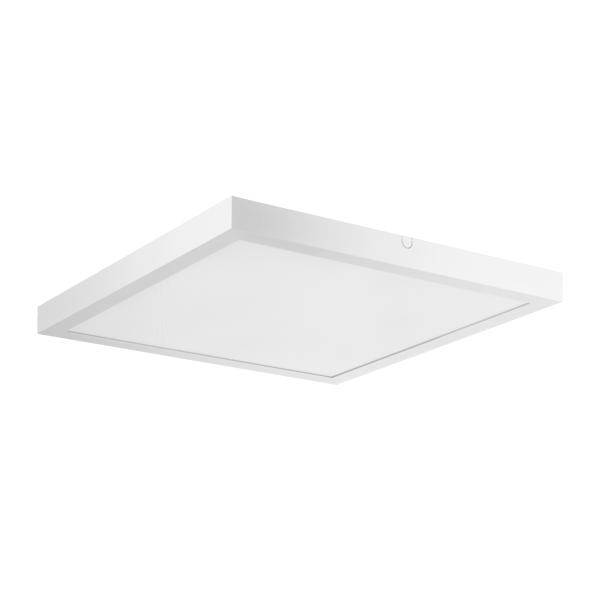

White square ceiling light panel with a slim frame, shown against a plain white background.
Table showing beam diameter Ø (m) and illuminance E0(0°) [lx]: 1.0 m, 2037.0 lx; 2.0 m, 510.0 lx; 3.0 m, 227.0 lx; 4.0 m, 128.0 lx; 5.0 m, 82.0 lx.

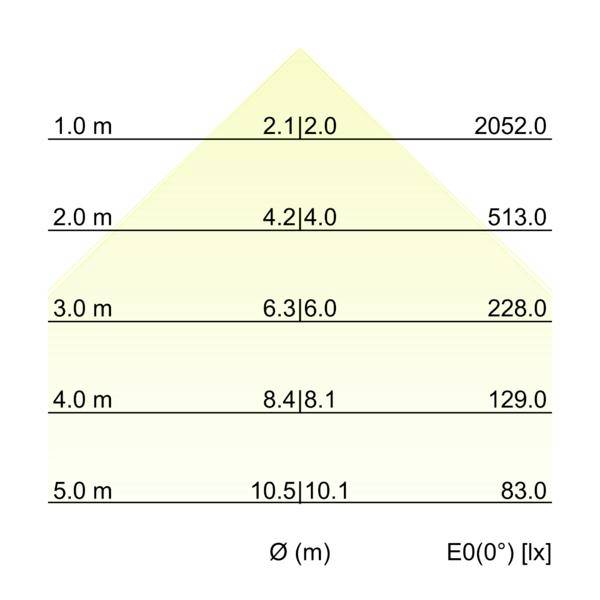

Table showing illuminance E0(0°) [lx] by distance Ø (m): 1.0 m 2052.0, 2.0 m 513.0, 3.0 m 228.0, 4.0 m 129.0, 5.0 m 83.0, with paired Ø values in the center.<br>
Polar light distribution diagram showing a near-symmetrical beam pattern, with angle markings 30°-90° and intensity rings labeled 120 to 480 cd.klm.<br>

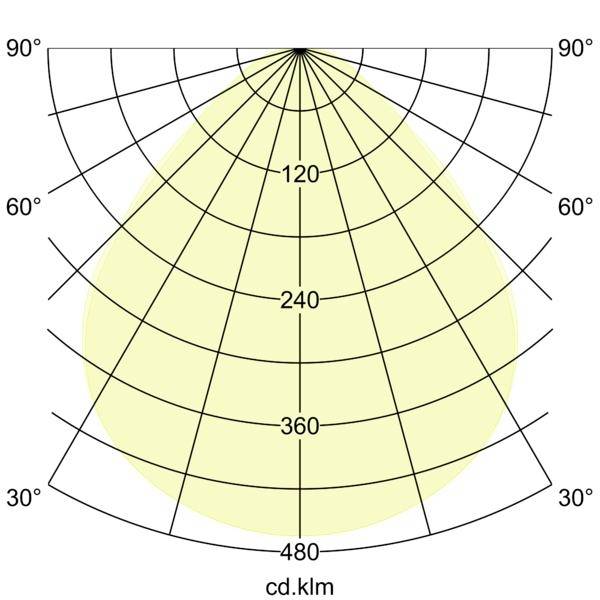

Polar light distribution chart with a nearly symmetrical yellow beam pattern; intensity marked 120, 240, 360, 480 cd.klm and angles 30° to 90°.<br>

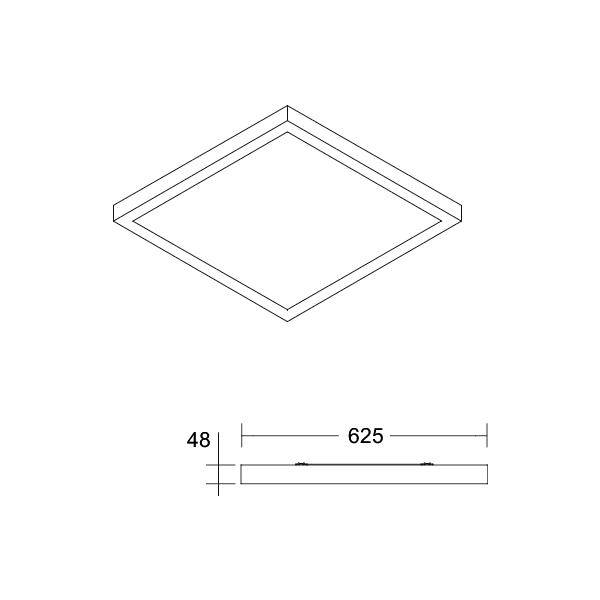

Technical drawing of a diamond-shaped frame with a side view showing 625 length and 48 height dimensions.

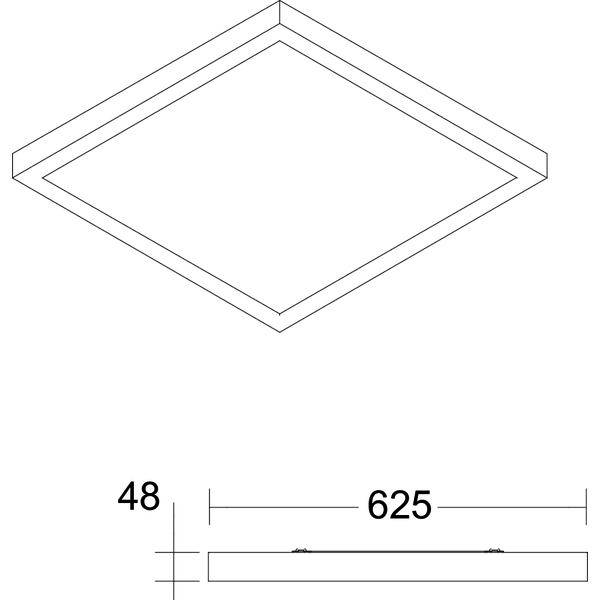

Dimensioned line drawing of a diamond-shaped frame, labeled 48 high and 625 wide.<br>
1/8
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

  • Power= 31 W
  • Total luminous flux= 4160 lm
  • Colour temperature= 6500 K
  • White

Technical specifications

Product type

LED panel

Type

Square

Operating voltage

220 V DC/AC

240 V DC/AC

No. of bulbs

1

Bulb type

LED (monochrome)

Rating per bulb

31 W

31 W

6500 K

Colour

White

Total luminous flux

4160 lm

Light features

Ceiling mount option

Incl. ballast

Dimmable

Direct light emission

Selectable luminous flux

Radiation angle

80°

Protection class

I

IP20 (Front)

IK03

Factory colour

White

Material

Aluminium

Width

625 mm

Height

48 mm

Length

625 mm

n.rel.

Type

Structure, powder coated

Yes

Light bulb included

Yes

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3832540 Brumberg 49060073TW LED panel 31 W White White

Datasheet 3832540 Brumberg 49060073TW LED panel 31 W White White

User & Safety Instructions

User & Safety Instructions 3832540 Brumberg 49060073TW LED panel 31 W White White

Description

LED panel 625 x 625 mm, TunableWhite, micro-prismatic cover, matt white, square. Design in a compact design for the harmonious implementation in an architectural space concept. Design: Without socket, mounting type: Mounting installation, mounting location: Ceiling mounting, material: Aluminium / PMMA, protection class of room: According to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 31 W, number of light bulbs/sockets: 1 piece, light current: From 4,150 lm to 4,160 lm, color temperature: from 2,700 K to 6,500 K, light color: white, angle of radiation: 85°, adjustable: not adjustable, with operating device: yes, Dimmable: Yes, type of dimming: DALI-2.

This text is machine translated.
