Brumberg 49120073DA LED panel 34 W White White

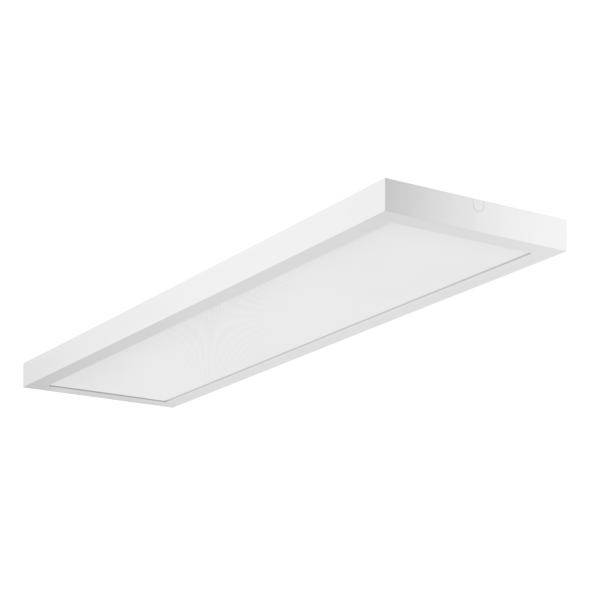

A slim rectangular white LED ceiling light fixture on a plain white background.<br>
Rectangular white LED ceiling light fixture shown on a plain background.

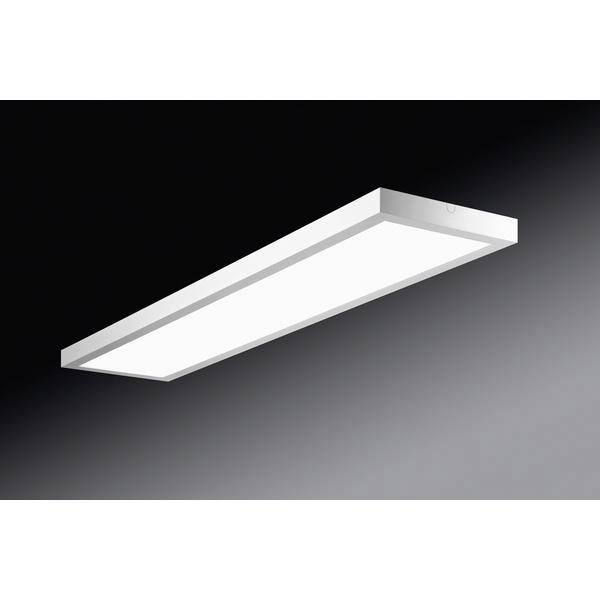

Rectangular white LED ceiling light fixture shown at an angle against a dark background.

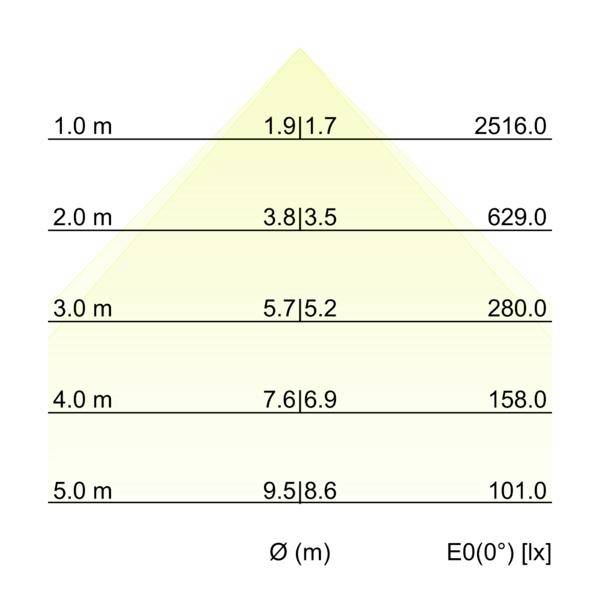

Diagram of a room or area with a triangular light spread, showing illuminance E0(0°) in lux decreasing from 2516.0 at 1.0 m to 101.0 at 5.0 m, with Ø in meters.

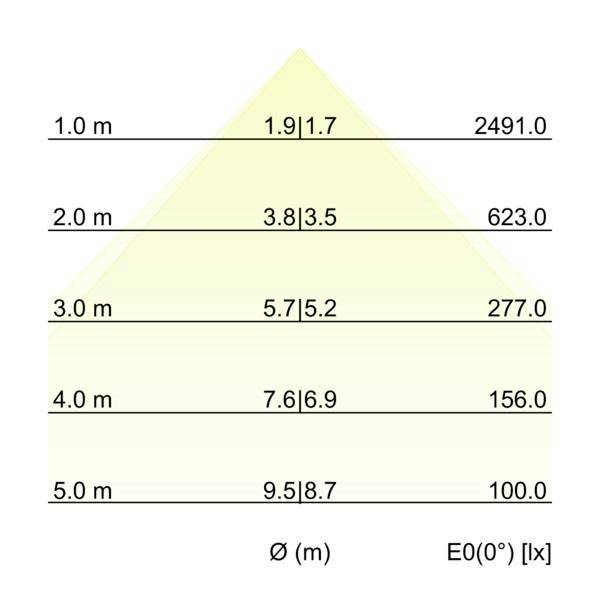

Table on a pyramid-shaped light distribution plot showing mounting height from 1.0 m to 5.0 m, beam diameter Ø in meters, and E0(0°) illuminance in lux, decreasing from 2491.0 to 100.0.

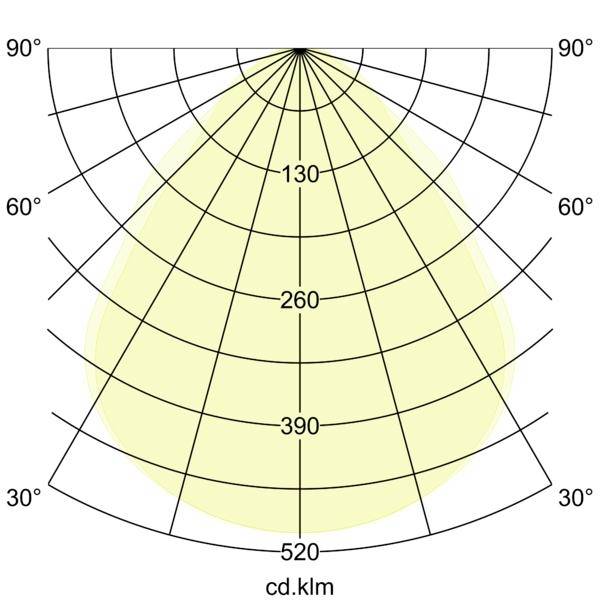

Polar light distribution chart with a pale yellow symmetric beam, angle markings from 30° to 90°, and intensity labels 130, 260, 390, 520 cd.klm.

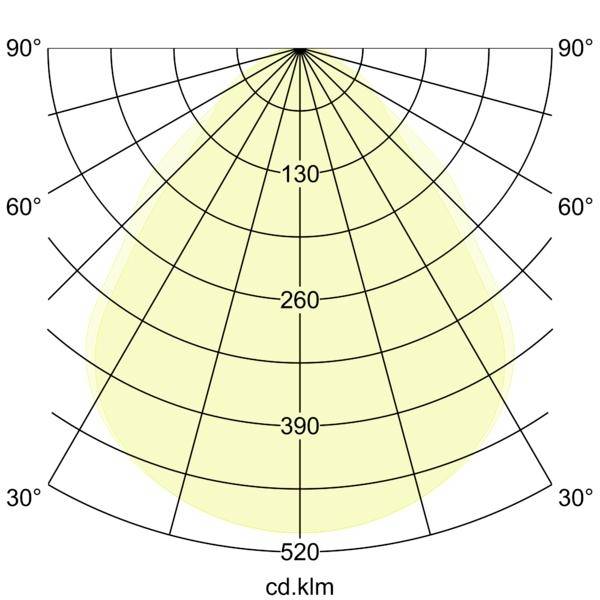

Polar light distribution diagram showing a symmetrical beam with intensity values from 130 to 520 cd.klm and angle markings from 30° to 90°.<br>

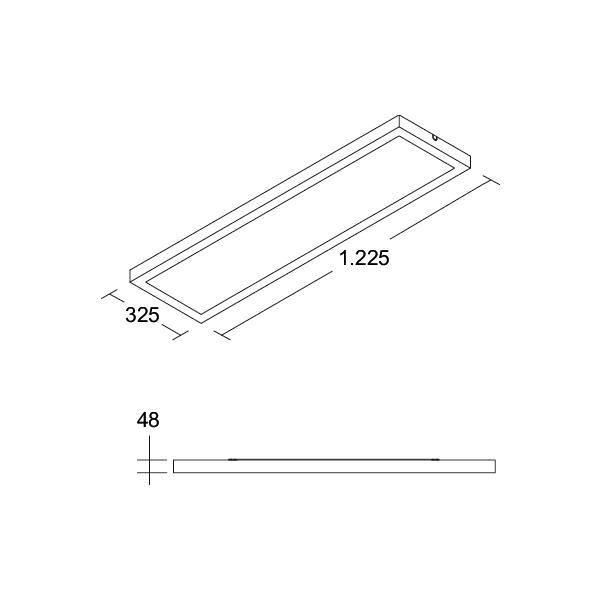

Technical drawing of a long rectangular tray or frame, showing dimensions 1.225 length, 325 width, and 48 height.<br>

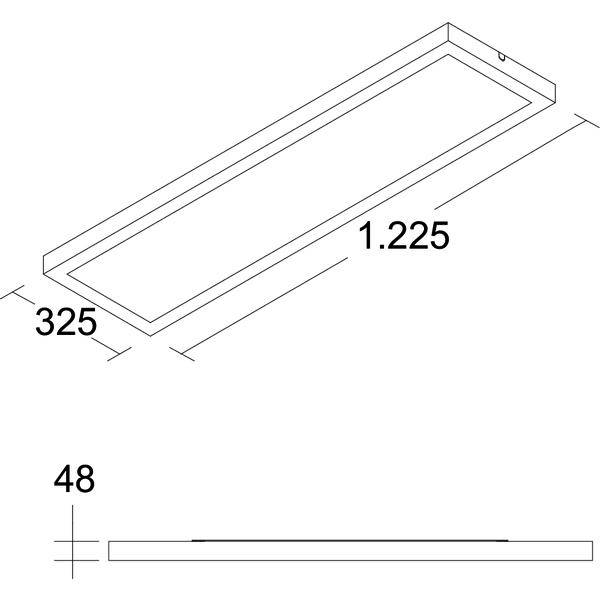

Dimensioned drawing of a long rectangular tray or panel, 1.225 by 325 with 48 height shown in side view.
1/9
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

  • Power= 34 W
  • Total luminous flux= 4950 lm
  • Colour temperature= 4000 K
  • White

Technical specifications

Product type

LED panel

Type

Rectangular

Operating voltage

220 V DC/AC

240 V DC/AC

No. of bulbs

1

Bulb type

LED (monochrome)

Rating per bulb

34 W

34 W

4000 K

Colour

White

Total luminous flux

4950 lm

Light features

Ceiling mount option

Incl. ballast

Dimmable

Direct light emission

Selectable luminous flux

Radiation angle

80°

Protection class

I

IP20 (Front)

IK03

Factory colour

White

Material

Aluminium

Width

325 mm

Height

48 mm

Length

1225 mm

n.rel.

Type

Structure, powder coated

Yes

Light bulb included

Yes

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3832541 Brumberg 49120073DA LED panel 34 W White White

Datasheet 3832541 Brumberg 49120073DA LED panel 34 W White White

User & Safety Instructions

User & Safety Instructions 3832541 Brumberg 49120073DA LED panel 34 W White White

Description

LED-mounting panel 1,225 x 325 mm, DALI dimmable, 2CCT, microprismatic cover, matt white, rectangular Design in a compact design for the harmonious implementation in an architectural space concept. Design: Without socket, mounting type: Mounting installation, mounting location: Ceiling mounting, material: Aluminium / polycarbonate, protection class: At room side: According to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 34 W, number of lights / sockets: 1 piece, light current: From 4,850 lm to 4,950 lm, color temperature: from 3,000 K to 4,000 K, light color: white, angle of radiation: 85°, adjustable: not adjustable, with operating device: yes, Dimmable: Yes, type of dimming: DALI-2.

This text is machine translated.
