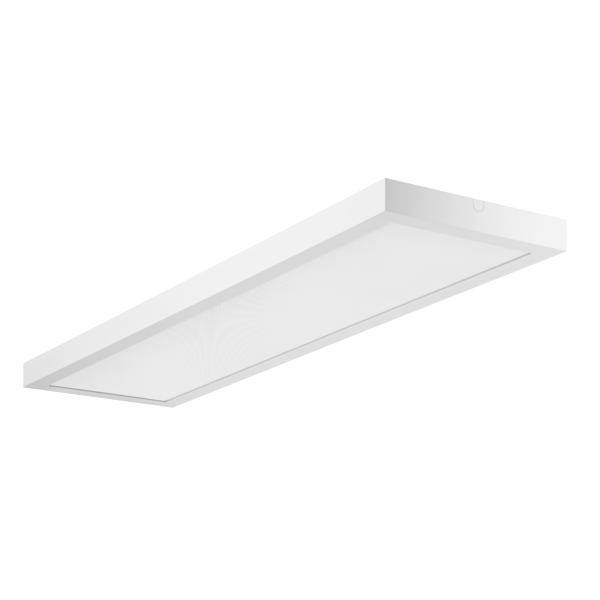

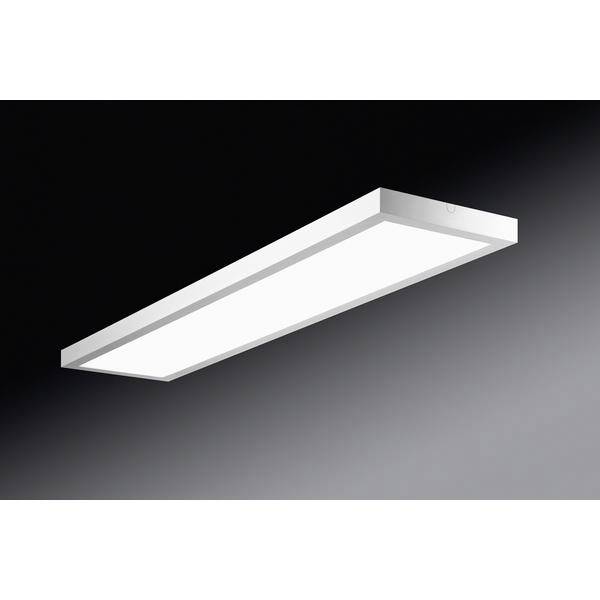

Brumberg 49120073TW LED panel 34 W White White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Power= 34 W
- Total luminous flux= 4750 lm
- Colour temperature= 6500 K
- White
Technical specifications
- Product type
LED panel
- Type
Rectangular
- Operating voltage
220 V DC/AC
240 V DC/AC
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
34 W
34 W
6500 K
- Colour
White
- Total luminous flux
4750 lm
- Light features
Ceiling mount option
Incl. ballast
Dimmable
Direct light emission
Selectable luminous flux
- Protection class
I
IP20 (Front)
IK03
- Factory colour
White
- Material
Aluminium

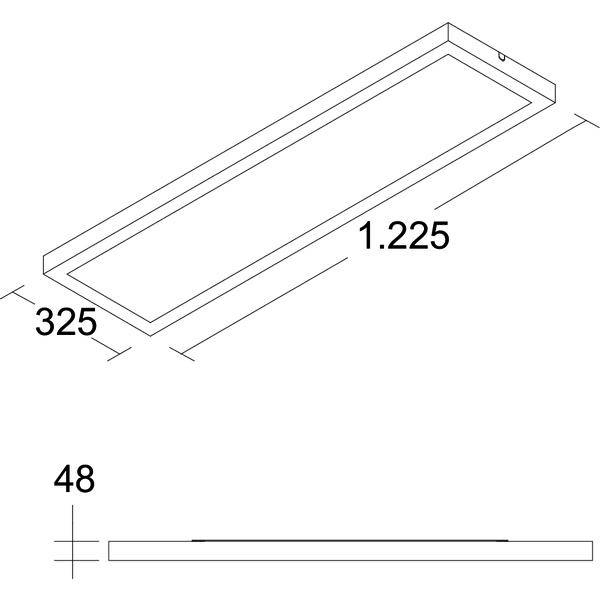

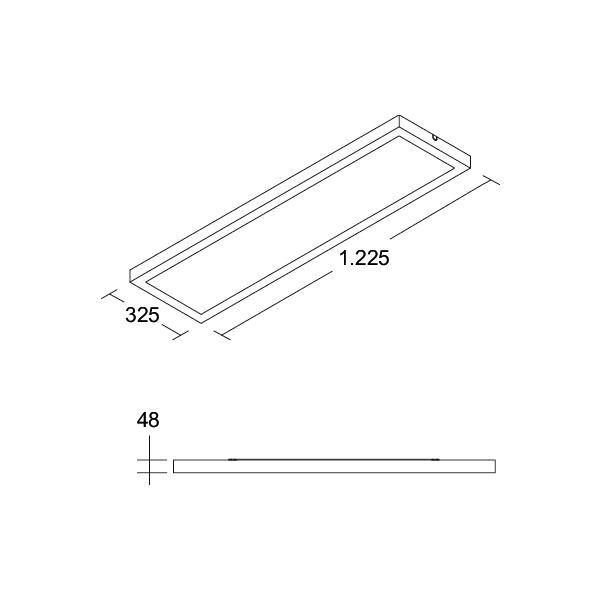

- Width
325 mm
- Height
48 mm
- Length
1225 mm
n.rel.
- Type
Structure, powder coated
Yes
- Light bulb included
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3832542 Brumberg 49120073TW LED panel 34 W White White
Datasheet 3832542 Brumberg 49120073TW LED panel 34 W White White
User & Safety Instructions
User & Safety Instructions 3832542 Brumberg 49120073TW LED panel 34 W White White
Description
LED-attachment panel 1,225 x 325 mm, TunableWhite, micro-prismatic cover, white matt, rectangular. Design in a compact design for the harmonious implementation in an architectural space concept. Design: Without socket, mounting type: Mounting installation, mounting location: Ceiling mounting, material: Aluminium / polycarbonate, protection class: At room side: According to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 34 W, number of lights / sockets: 1 piece, light current: From 4,500 lm to 4,750 lm, color temperature: from 2,700 K to 6,500 K, light color: white, angle of radiation: 85°, adjustable: not adjustable, with operating device: yes, Dimmable: Yes, type of dimming: DALI-2.
