Brumberg 49150073DA LED panel 49 W White White

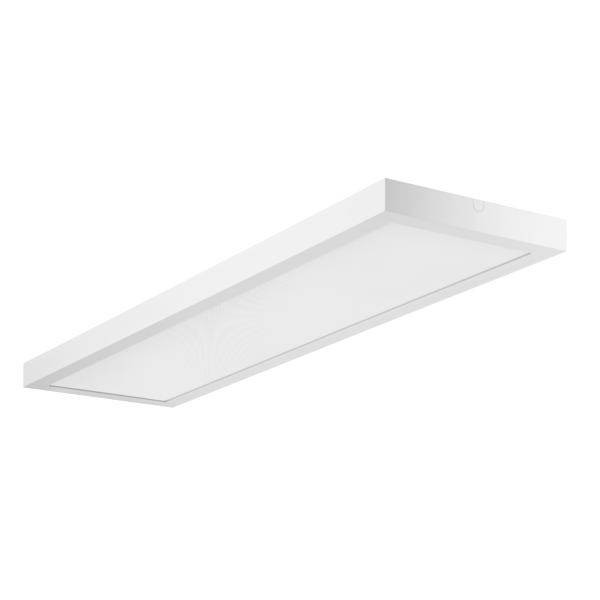

Slim rectangular white LED ceiling panel light on a plain background.
Slim rectangular white LED ceiling light fixture on a plain white background.

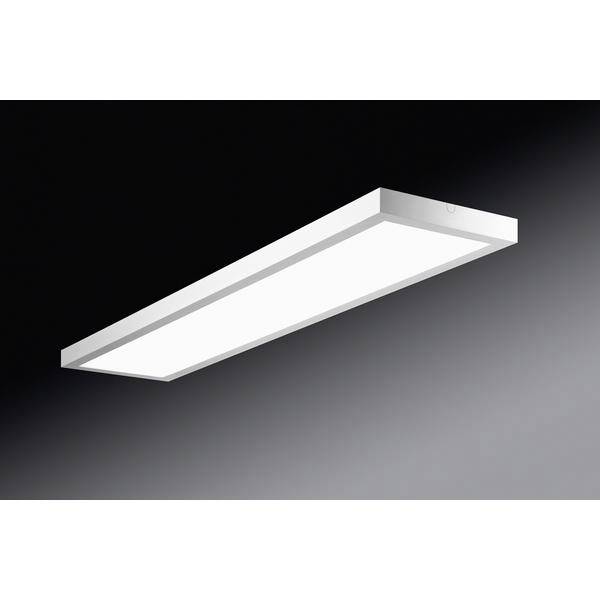

Rectangular white LED ceiling light panel on a dark gray background.<br>

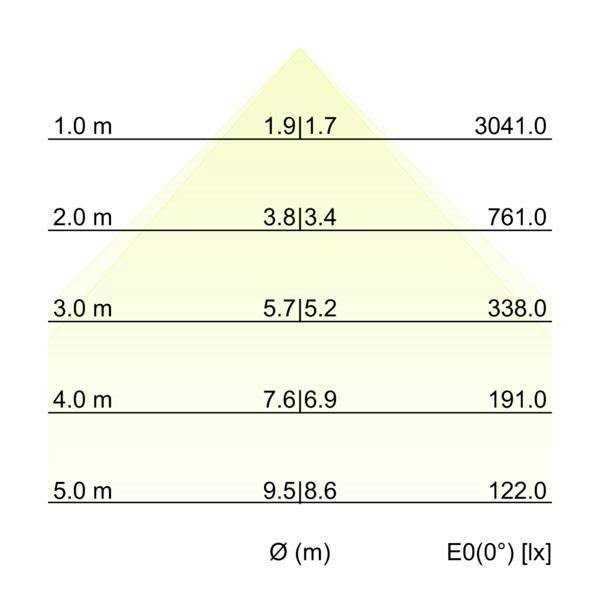

Diagram of illumination over a triangular area, showing measurements at 1.0 to 5.0 m: diameter Ø (m) and E0(0°) [lx] values decreasing from 3041.0 to 122.0.<br>

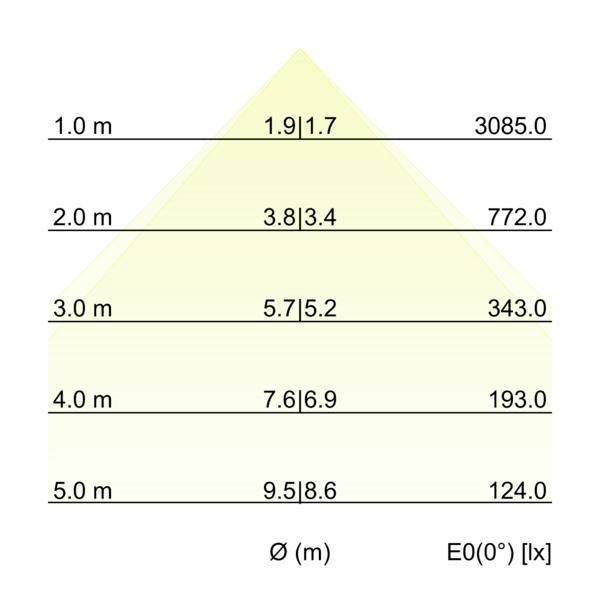

Lighting distribution chart for a downlight, showing beam diameter Ø(m) and illuminance E0(0°) in lux at 1.0 to 5.0 m distances.<br>

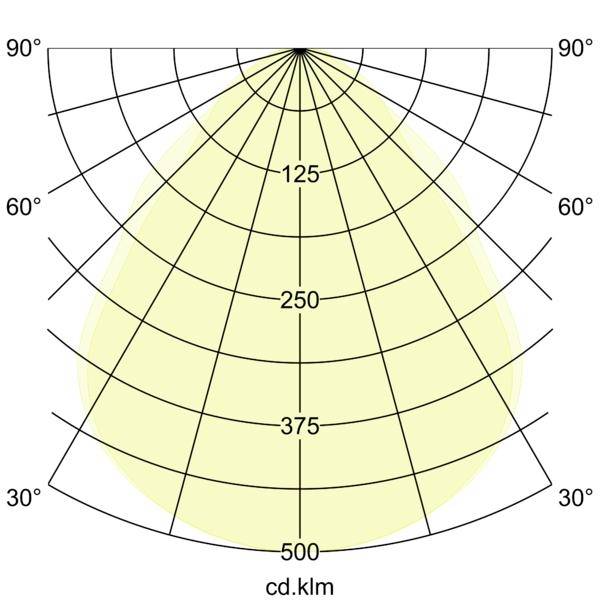

Polar photometric distribution chart showing a broad downward light beam, with intensity marked 125, 250, 375, and 500 cd.klm.

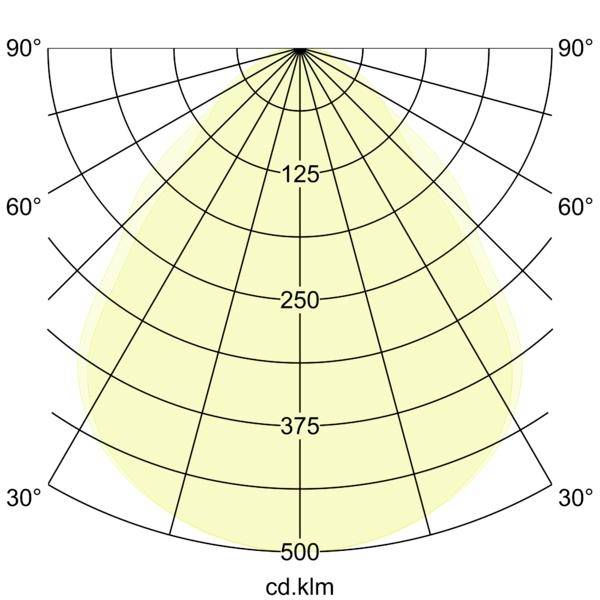

Polar light distribution chart showing a broad, symmetrical beam with intensity increasing toward the center; radial scale marked 125, 250, 375, 500 cd.klm and angles 30°-90°.<br>

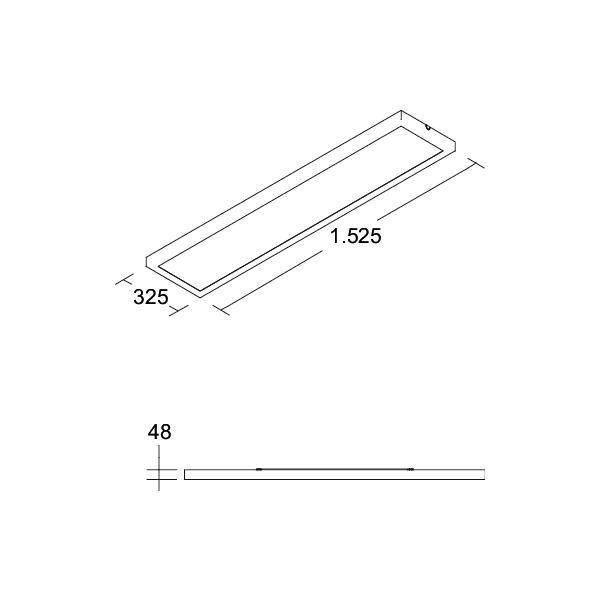

Technical drawing of a long rectangular tray or panel, labeled 1.525 long, 325 wide, and 48 high, shown in isometric and side views.

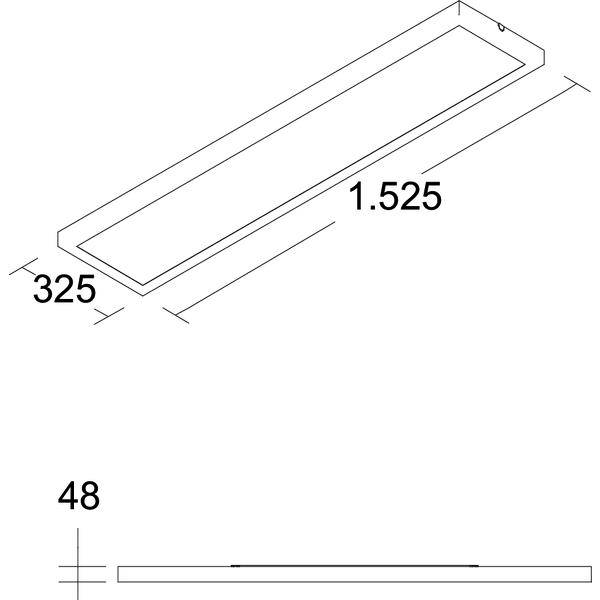

Isometric and side-view technical drawing of a long rectangular tray, labeled 1.525 length, 325 width, and 48 height.<br>
1/9
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

  • Power= 49 W
  • Total luminous flux= 7300 lm
  • Colour temperature= 4000 K
  • White

Technical specifications

Product type

LED panel

Type

Rectangular

Operating voltage

220 V DC/AC

240 V DC/AC

No. of bulbs

1

Bulb type

LED (monochrome)

Rating per bulb

49 W

49 W

4000 K

Colour

White

Total luminous flux

7300 lm

Light features

Ceiling mount option

Incl. ballast

Dimmable

Direct light emission

Selectable luminous flux

Radiation angle

80°

Protection class

I

IP20 (Front)

IK03

Factory colour

White

Material

Aluminium

Width

325 mm

Height

48 mm

Length

1525 mm

n.rel.

Type

Structure, powder coated

Yes

Light bulb included

Yes

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3832543 Brumberg 49150073DA LED panel 49 W White White

Datasheet 3832543 Brumberg 49150073DA LED panel 49 W White White

User & Safety Instructions

User & Safety Instructions 3832543 Brumberg 49150073DA LED panel 49 W White White

Description

LED-mounting panel 1,525 x 325 mm, DALI dimmable, 2CCT, microprismatic design, matt white, rectangular Design in a compact design for the harmonious implementation in an architectural space concept. Design: Without socket, mounting type: Mounting installation, mounting location: Ceiling mounting, material: Aluminium / polycarbonate, protection class: At room side: According to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 49 W, number of lights / sockets: 1 piece, light current: From 6,900 lm to 7,300 lm, color temperature: from 3,000 K to 4,000 K, light color: white, angle of radiation: 85°, adjustable: not adjustable, with operating device: yes, Dimmable: Yes, type of dimming: DALI-2.

This text is machine translated.
