Brumberg 49150073TW LED panel 49 W White White

White rectangular LED ceiling light fixture on a plain background.

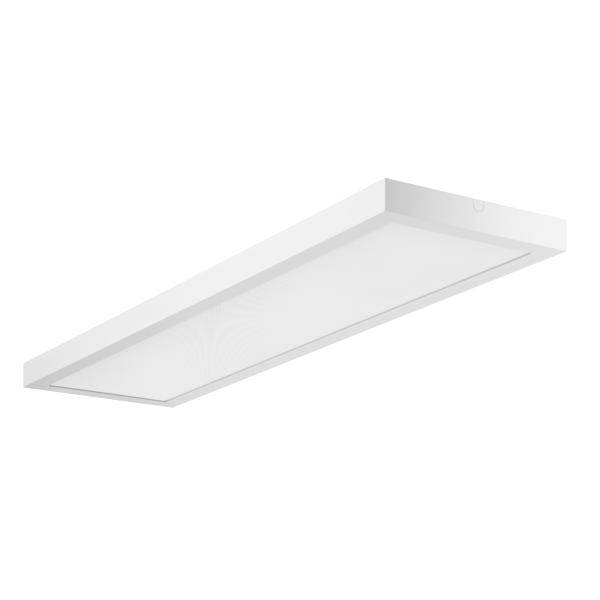

Slim white rectangular LED panel light fixture viewed at an angle on a plain white background.

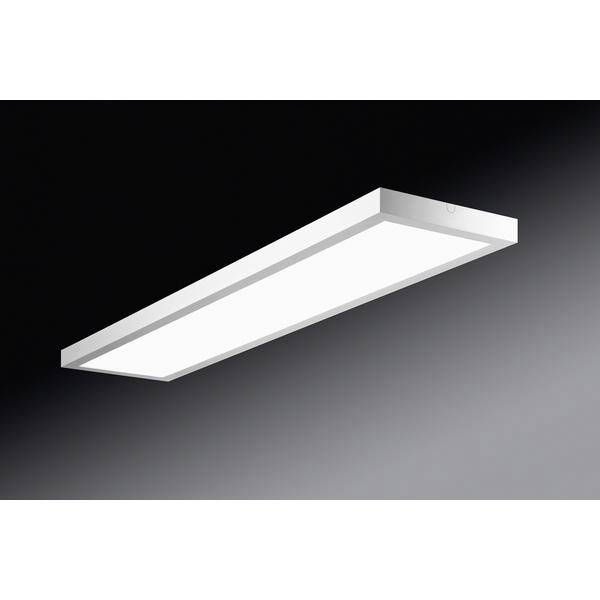

Modern rectangular ceiling light fixture with white panel and silver trim on a dark gradient background.

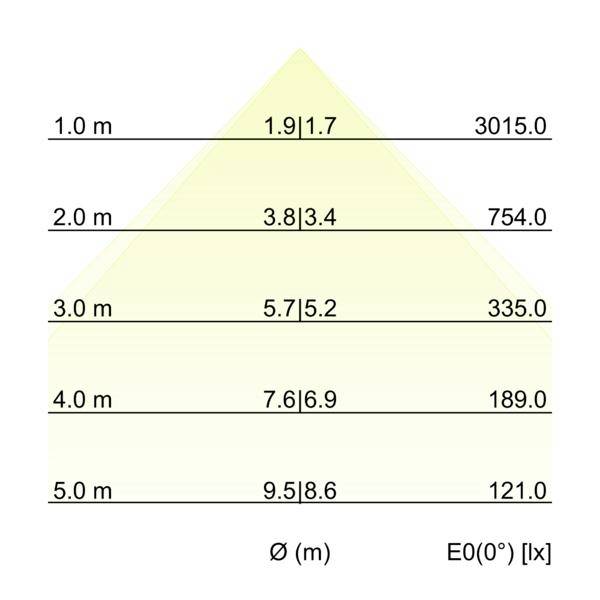

Lighting distribution chart with a triangular beam profile, showing distance 1.0–5.0 m, beam diameter Ø(m), and E0(0°) illuminance in lux values from 3015.0 to 121.0.

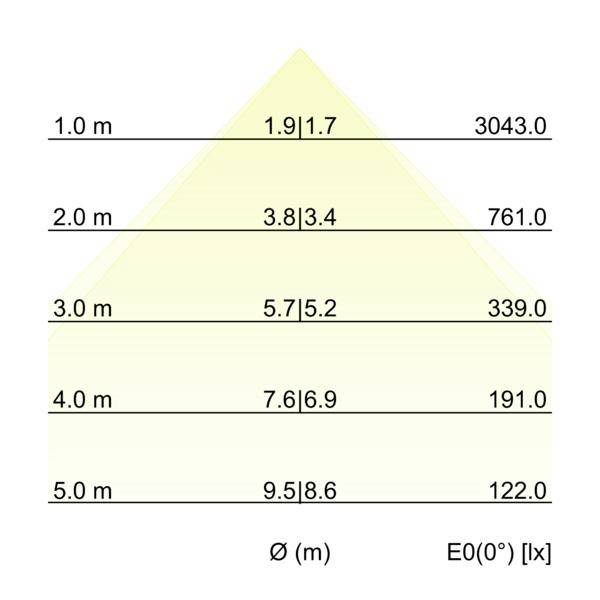

Diagram of lighting values over a triangular area, showing diameter Ø (m) and illuminance E0(0°) [lx] at 1.0 to 5.0 m: 3043.0, 761.0, 339.0, 191.0, 122.0.

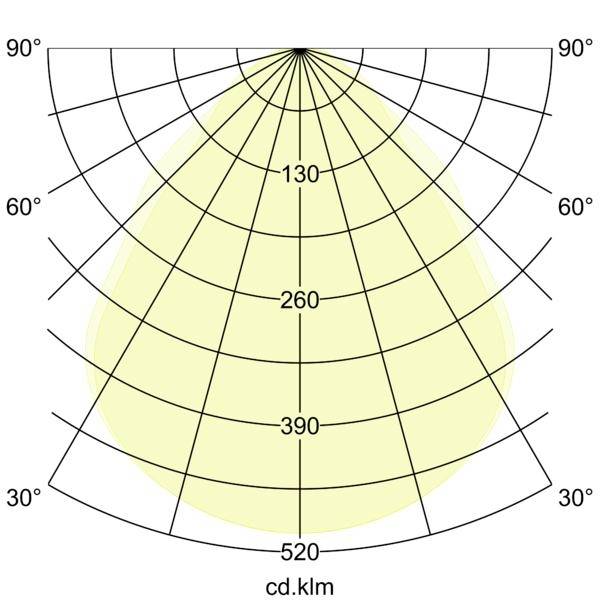

Polar light distribution diagram showing a yellow symmetric beam pattern, labeled angles 30° to 90° and intensity scale 130 to 520 cd.klm

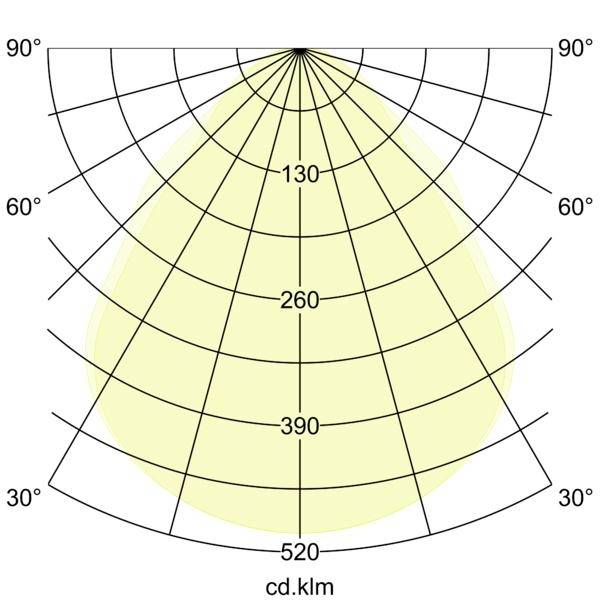

Polar candela distribution chart showing a symmetric light beam, with intensity peaking near 520 cd/klm at the center and decreasing outward.

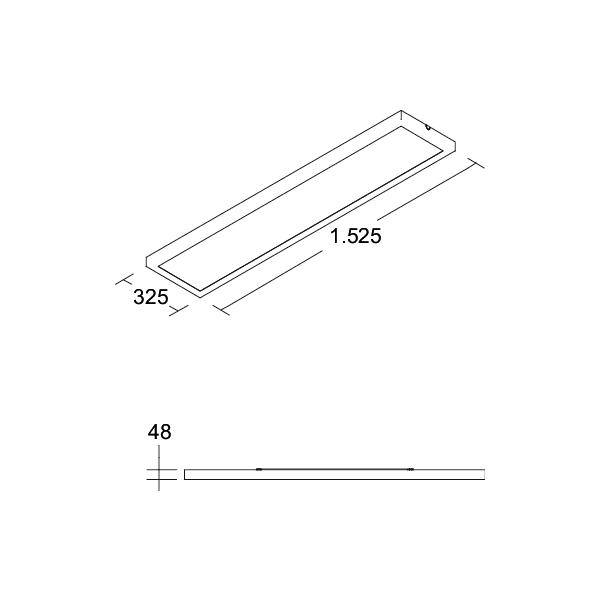

Isometric and side-view technical drawing of a long rectangular tray or panel, labeled 1.525 long, 325 wide, and 48 high.

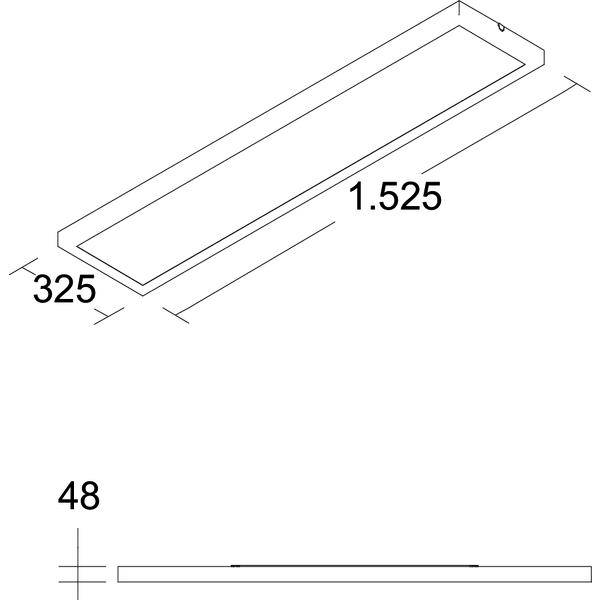

Line drawing of a rectangular tray or shallow pan, labeled 1.525 long, 325 wide, and 48 high.<br>
1/9
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

  • Power= 49 W
  • Total luminous flux= 6700 lm
  • Colour temperature= 6500 K
  • White

Technical specifications

Product type

LED panel

Type

Rectangular

Operating voltage

220 V DC/AC

240 V DC/AC

No. of bulbs

1

Bulb type

LED (monochrome)

Rating per bulb

49 W

49 W

6500 K

Colour

White

Total luminous flux

6700 lm

Light features

Ceiling mount option

Incl. ballast

Dimmable

Direct light emission

Selectable luminous flux

Radiation angle

80°

Protection class

I

IP20 (Front)

IK03

Factory colour

White

Material

Aluminium

Width

325 mm

Height

48 mm

Length

1525 mm

n.rel.

Type

Structure, powder coated

Yes

Light bulb included

Yes

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3832544 Brumberg 49150073TW LED panel 49 W White White

Datasheet 3832544 Brumberg 49150073TW LED panel 49 W White White

User & Safety Instructions

User & Safety Instructions 3832544 Brumberg 49150073TW LED panel 49 W White White

Description

LED-Add-on panel 1,525 x 325 mm, TunableWhite, micro-prismatic design, white matt, rectangular. Design in a compact design for the harmonious implementation in an architectural space concept. Design: Without socket, mounting type: Mounting installation, mounting location: Ceiling mounting, material: Aluminium / polycarbonate, protection class: At room side: According to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 49 W, number of lights / sockets: 1 piece, light current: From 6,400 lm to 6,700 lm, color temperature: from 2,700 K to 6,500 K, light color: white, angle of radiation: 85°, adjustable: not adjustable, with operating device: yes, Dimmable: Yes, type of dimming: DALI-2.

This text is machine translated.
