Brumberg 49220073DA LED pendant light LED (monochrome) w/o 39 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Power= 39 W Total luminous flux= 5290 lm Colour temperature= 4000 K White
Technical specifications
- Product type
LED pendant light
- Operating voltage
220 V DC/AC
240 V DC/AC
- No. of bulbs
1
- Bulb type
LED (monochrome)
w/o
- Rating per bulb
39 W
39 W
- Light features
Incl. ballast
Dimmable
Direct light emission
Indirect light emission
Selectable luminous flux
Incl. suspension
- Pendulum length (max.)
150 cm
- Protection class
I
IP20
IK03
- Factory colour
White
- Material
Aluminium
- Dim

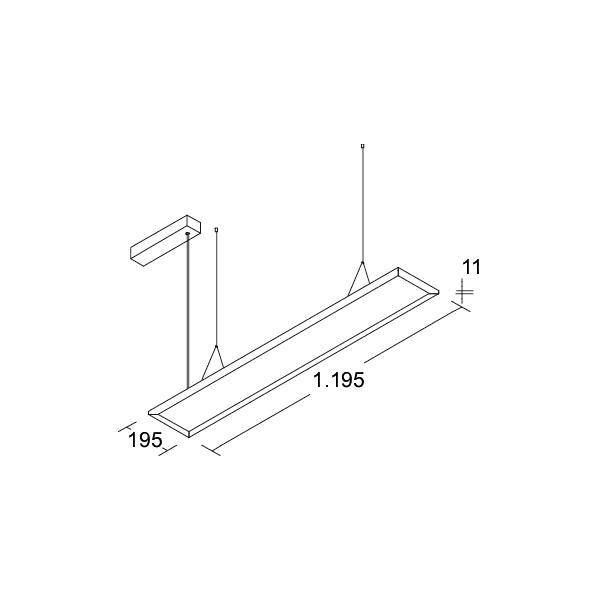

(L x W x H) 1195 x 195 x 12.5 mm
n.rel.
- Type
Rectangular
- Colour
White
- Light bulb included
Yes
4000 K
- Total luminous flux
5290 lm
- Width
195 mm
- Height
12.5 mm
- Length
1195 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3832545 Brumberg 49220073DA LED pendant light LED (monochrome) w/o 39 W White
Datasheet 3832545 Brumberg 49220073DA LED pendant light LED (monochrome) w/o 39 W White
User & Safety Instructions
User & Safety Instructions 3832545 Brumberg 49220073DA LED pendant light LED (monochrome) w/o 39 W White
Description
LED pendant lamp, 1,195 x 195 mm, DALI dimmable, 2CCT, microprismatic, matt white, rectangular Pendant mounting, ceiling mounting Design: Without socket, mounting type: Mounting location: Ceiling mounting, material: Aluminum / PMMA, protection class: Room side: According to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 39 W, number of light bulbs/sockets: 1 piece, light current: From 5,060 lm to 5,290 lm, color temperature: from 3,000 K to 4,000 K, light color: white, angle of radiation: 85°, adjustable: not adjustable, with operating device: yes, Dimmable: Yes, type of dimming: DALI-2.
