Brumberg 49260073DA LED pendant light LED (monochrome) w/o 46 W White

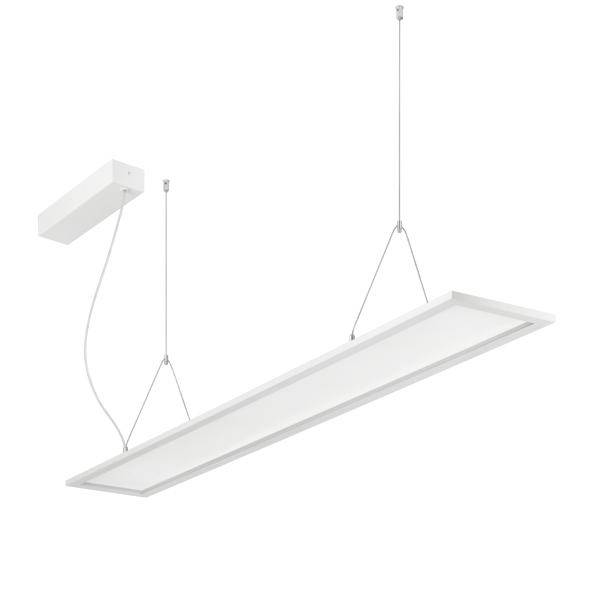

Minimalist white rectangular pendant LED light suspended by thin cables from a ceiling mount, shown on a plain white background.
White rectangular pendant LED light suspended by cables on a white background.

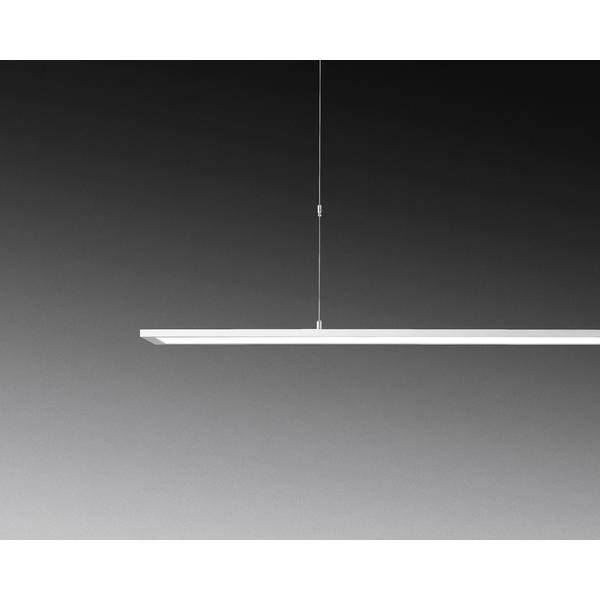

Minimalist suspended linear LED pendant light with a slim white bar on a thin cable against a dark gray gradient background.<br>
Slim rectangular white suspended LED light panel hanging by cables against a dark gray background.

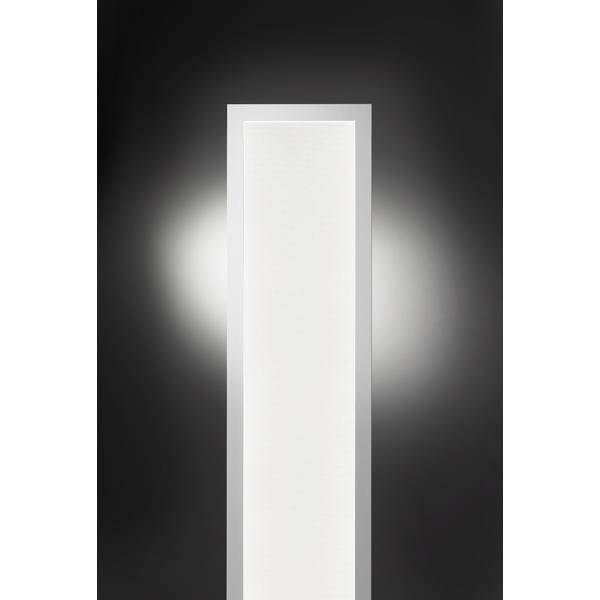

Tall white rectangular wall light with a soft circular glow on a dark background<br>
Tall white rectangular wall-mounted panel or vent centered against a dark background, illuminated by a bright spotlight.
Rectangular suspended LED ceiling panel light with slim white frame and textured diffuser, shown at an angle against a dark gray background.

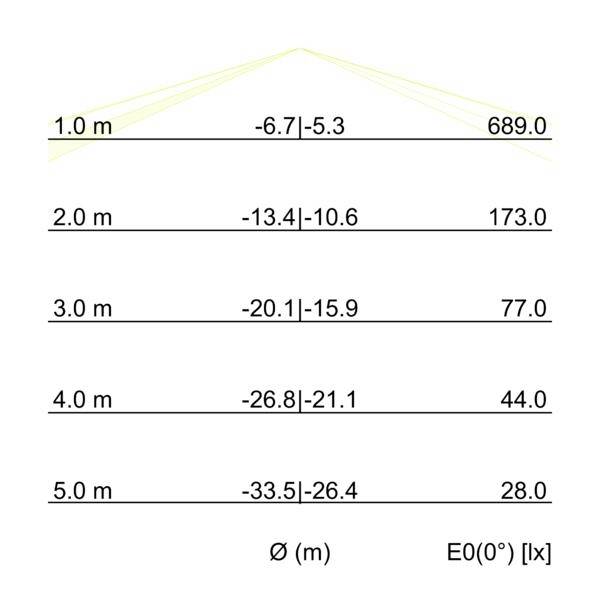

Table showing lighting values by distance: at 1.0 m, E0(0°) is 689.0 lx; at 2.0 m, 173.0; at 3.0 m, 77.0; at 4.0 m, 44.0; at 5.0 m, 28.0.

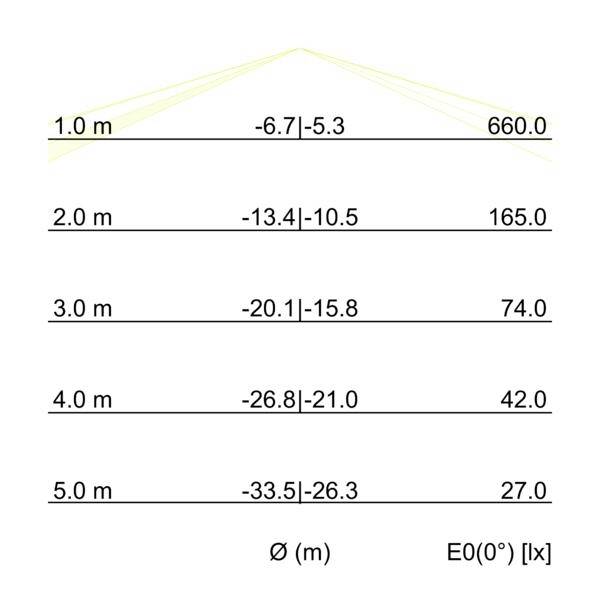

Table of illuminance values by distance: at 1.0 m, -6.7|-5.3 and 660.0 lx; 2.0 m, -13.4|-10.5 and 165.0 lx; 3.0 m, -20.1|-15.8 and 74.0 lx; 4.0 m, -26.8|-21.0 and 42.0 lx; 5.0 m, -33.5|-26.3 and 27.0 lx.

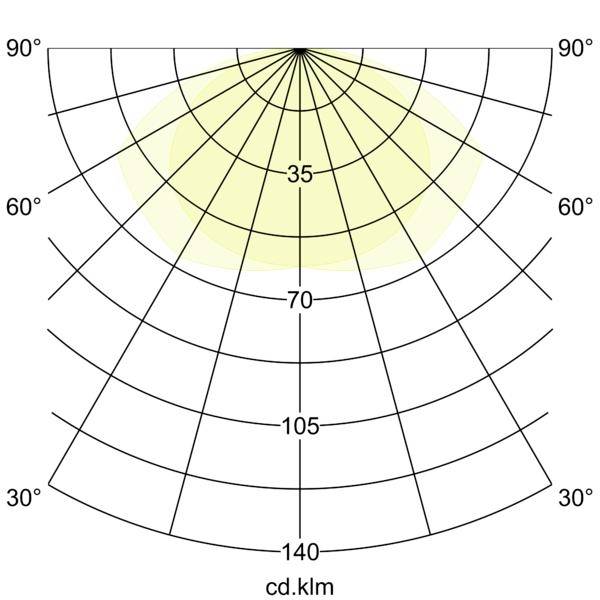

Polar light distribution plot with a yellow beam pattern centered at the top, showing candela per kilolumen on a 0–140 scale and angles from 30° to 90°.<br>

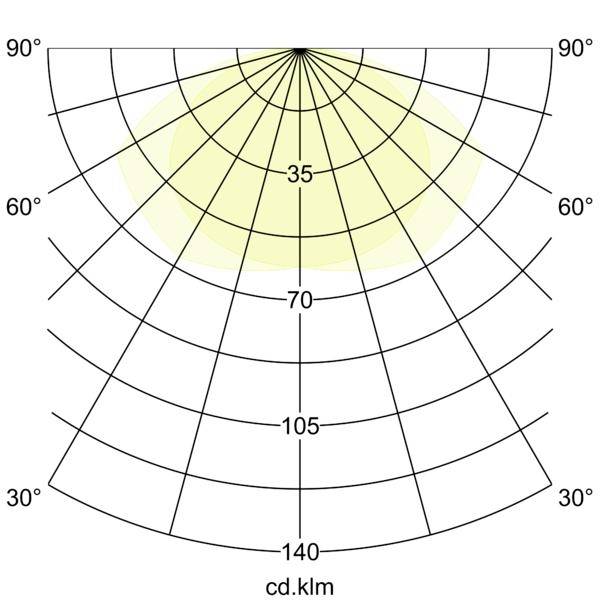

Polar photometric distribution chart showing a symmetric light beam, with angle markings from 90° to 30° and intensity rings labeled 35, 70, 105, 140 cd.klm.
Technical line drawing of a long rectangular hanging light fixture with dimensions labeled 1.495, 195, and 11.
Technical line drawing of a long suspended rectangular beam with dimensions 1.495, 195, and 12.5 indicated.
1/13
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

  • Power= 46 W Total luminous flux= 5850 lm Colour temperature= 4000 K White

Technical specifications

Product type

LED pendant light

Operating voltage

220 V DC/AC

240 V DC/AC

No. of bulbs

1

Bulb type

LED (monochrome)

w/o

Rating per bulb

46 W

46 W

Light features

Incl. ballast

Dimmable

Direct light emission

Indirect light emission

Selectable luminous flux

Incl. suspension

Pendulum length (max.)

150 cm

Protection class

I

IP20

IK03

Factory colour

White

Material

Aluminium

Plastic

Dim

(L x W x H) 1495 x 195 x 12.5 mm

n.rel.

Type

Square

Colour

White

Light bulb included

Yes

4000 K

Total luminous flux

5850 lm

Width

195 mm

Height

12.5 mm

Length

1495 mm

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3832552 Brumberg 49260073DA LED pendant light LED (monochrome) w/o 46 W White

Datasheet 3832552 Brumberg 49260073DA LED pendant light LED (monochrome) w/o 46 W White

User & Safety Instructions

User & Safety Instructions 3832552 Brumberg 49260073DA LED pendant light LED (monochrome) w/o 46 W White

Description

LED pendant lamp, 1,495 x 195 mm, DALI dimmable, 2CCT, transparent, matt white, square. Pendant mounting, ceiling mounting Design: Without socket, mounting type: Mounting location: Ceiling mounting, material: Aluminum / PMMA, protection class: Room side: According to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 46 W, number of light bulbs/sockets: 1 piece, light current: From 5,550 lm to 5,850 lm, color temperature: from 3,000 K to 4,000 K, light color: white, angle of radiation: 85°, adjustable: not adjustable, with operating device: yes, Dimmable: Yes, type of dimming: DALI-2.

This text is machine translated.
