Name: Brumberg 57191570 57191570 Surface-mount light
Brand: Brumberg
SKU: 3543454

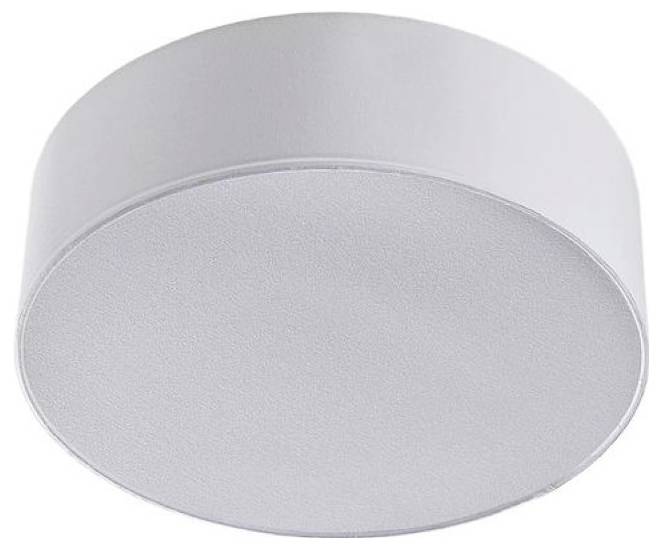

Round white flush-mount ceiling light fixture shown from below on a plain background.

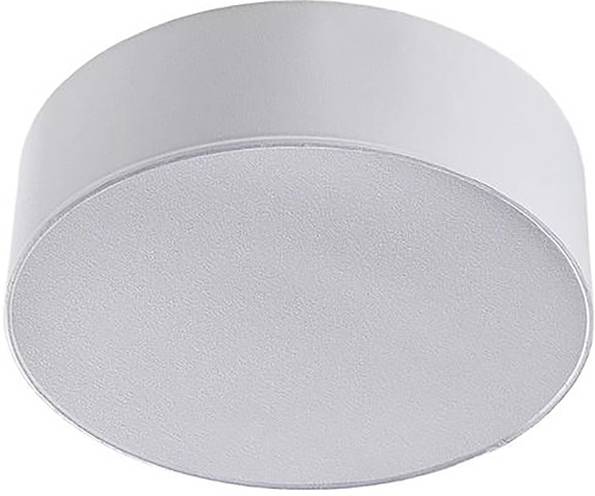

A white, circular ceiling light fixture, viewed from below, showing its simple, minimalist design.

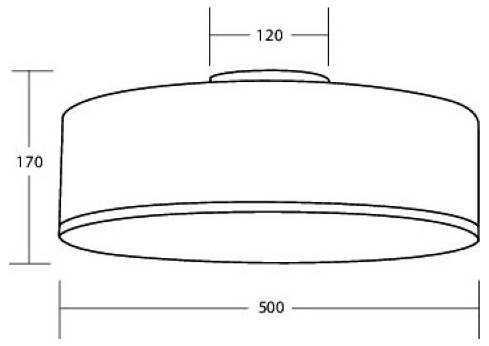

Technical drawing of a cylindrical container or fixture, showing dimensions: 500 wide, 170 high, and 120 on the top opening.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Brumberg lights mounted light 3x E27 57191570

Technical specifications

Protection class (IP) IP20
Protection class: I
Material of housing: Steel
Nominal voltage: 230 V
Voltage type AC
LED bulb, replaceable
Operating device: Not required
Energy efficiency class of light source according to EU directive 2019/2015: Not required
Adjustable color temperature: No.
Luminous flux can be set: No
Adjustable radiation angle: No.
Height/depth 170 mm
Type of wiring: Finish
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Suitable for mounting on the panel: Yes
Suitable for panel mounting: No.
Suitable for wall mounting: No.
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: No.
With motion detector: No.
With light sensor: No.
With bulb: No.
Suitable for the number of bulbs: 3
With operating device: No.
Removable operating device: No.
Dimmer 0-10 V: No
Dimmer 1-10 V: No
Dimming DALI-2: No.
DALI dimming: No.
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimmer function: No.
Light distribution: Symmetric
Light emission: Direct
Suitable for lamp output 15 W
Operation via Bluetooth: No.
External diameter: 500 mm
Suitable for light band configuration: No.
Suitable for screen workstations according to EN 12464-1: No.
Suitable for emergency light: No.
Compatible with Casambi: No.
E27 socket

Product type: Surface-mount light

: n.rel.

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3543454 Brumberg 57191570 57191570 Surface-mount light

User & Safety Instructions

User & Safety Instructions 3543454 Brumberg 57191570 57191570 Surface-mount light

Description

Ceiling surface-mount light, for E27 LED retrofit lamps, with 500 mm cloth screen, nickel matte / shade white, round. Design in a compact design for the harmonious implementation in an architectural space concept. Design: E27, mounting type: Mounting, mounting location: Ceiling mounting, material: Steel / material, protection class: From room: According to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 15 W, number of lights / sockets: 3 piece, adjustability: Not adjustable, without operating device, type of dimming: Other.
