Brumberg 60802644 60802644 LED floodlight
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

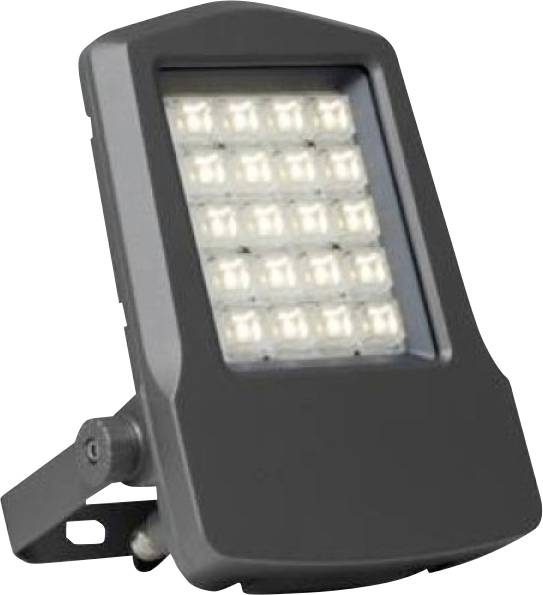

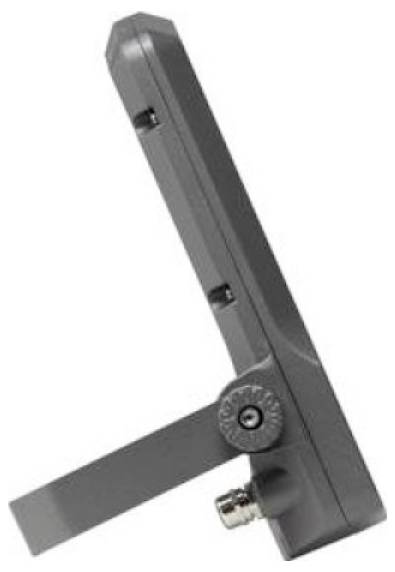

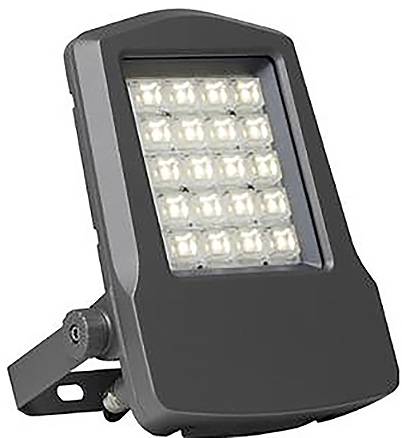

Brumberg LED floodlight 4000K, unbalanced, titan 60802644
Technical specifications
- Protection class (IP) IP66
- Protection class: I
- Impact strength: IK08
- Material of housing: Aluminium
- Nominal voltage: 230 V
- Voltage type AC
- Bulb: LED not replaceable
- Operating device: LED operating device voltage-controlled
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Type of wiring: Finish
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on the panel: Yes
- Suitable for panel mounting: No.
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: No.
- Suitable for traverse installation: No.
- Suitable for cable system: No.
- Adjustable: Pivoting
- With motion detector: No.
- With light sensor: No.
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Housing color: Titanium
- Surface brushed: No.
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimming function: Yes

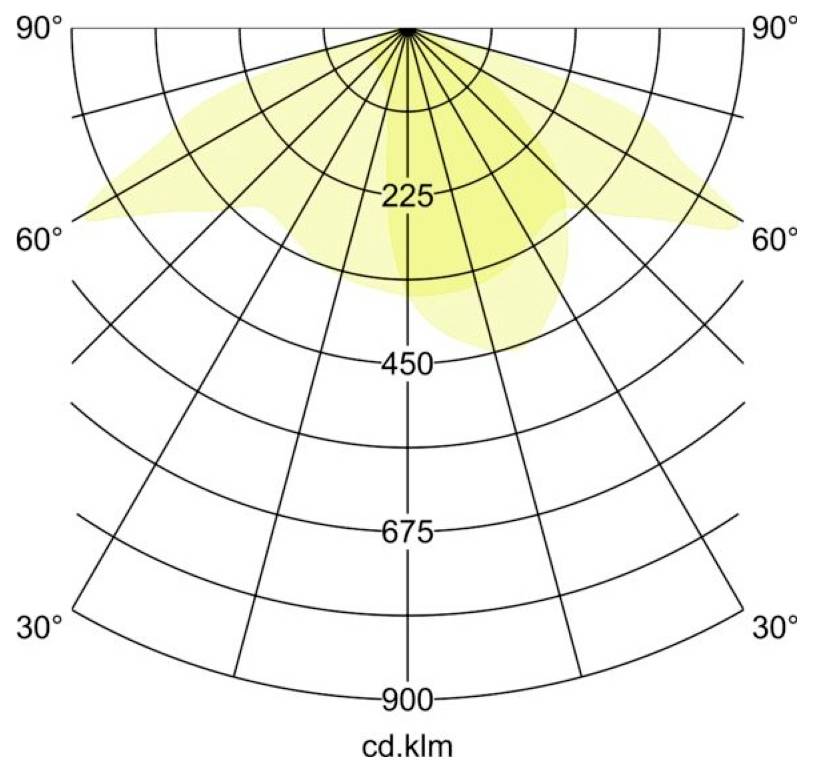

- Light distribution: Asymmetric
- Light emission: Direct
- Suitable for lamp output 20 W
- Max. System power 20 W
- Luminous flux: 2710 lm
- Rated light current according to IEC 62722-2-1: 2710 lm
- Operation via Bluetooth: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Cover material: Transparent glass
- Color consistency (McAdam ellipse): SDCM3
- Socket: Without
- Product type
LED floodlight
- Bulb type
LED (monochrome)
n.rel.
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3550816 Brumberg 60802644 60802644 LED floodlight
User & Safety Instructions
User & Safety Instructions 3550816 Brumberg 60802644 60802644 LED floodlight
Description
LED floodlight, IP66, asymmetric, switchable, titanium mat rectangular Design in a compact design for the harmonious implementation in an architectural space concept. Design: Without socket, mounting type: Mounting installation, mounting location: Wall mounting, material: Aluminium / glass, protection class: From room: According to DIN EN 60529: IP66, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 4,000 W, number of lights / sockets: 110 piece, light current: 30 lm, color temperature: 20 K, radiation angle longitudinal: 1°, reflection angle: 2,710°, cross With operating device: yes, dim: no, type of dimming: switchable.
