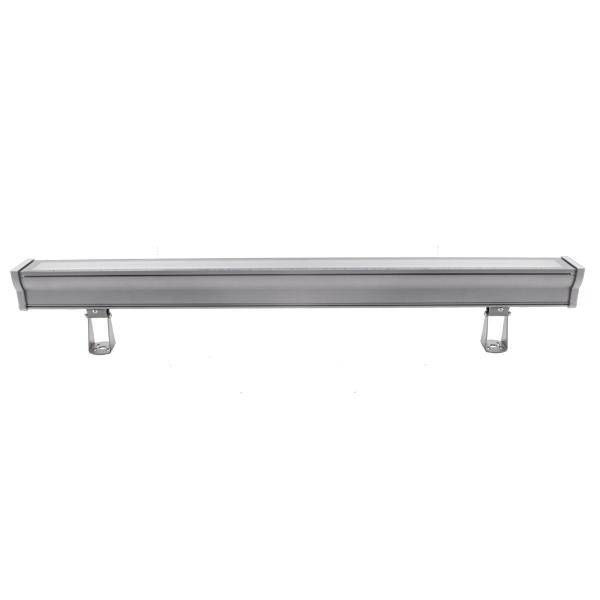

Brumberg 60861642 LED wall washer LED (monochrome) 44 W Titanium
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Power= 44 W Total luminous flux= 5290 lm Colour temperature= 3000 K RGBW
Technical specifications
- Product type
LED wall washer
- Operating voltage
230 V AC
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
44 W
44 W
3000 K
- Colour
RGBW
- Total luminous flux
5290 lm
- Light features
Suitable for wall mounting
Incl. ballast
Dimmable
Direct light emission
- Protection class
I
IP66 (front)
IK08
- Factory colour
Titanium
- Material
Aluminium
Glass (clear)
- Dim
(L x W x H) 1150 x 82 x 86 mm
n.rel.
- Light bulb included
Yes
- Width
82 mm
- Height
86 mm
- Length
1150 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3831401 Brumberg 60861642 LED wall washer LED (monochrome) 44 W Titanium
Datasheet 3831401 Brumberg 60861642 LED wall washer LED (monochrome) 44 W Titanium
User & Safety Instructions
User & Safety Instructions 3831401 Brumberg 60861642 LED wall washer LED (monochrome) 44 W Titanium
Description
LED Wall-washer, IP66, 1,150 mm, DALI dimmable, titanium matt, rectangular Design in a compact design for the harmonious implementation in an architectural space concept. Connection line sideways, design: Without socket, mounting type: Mounting mounting, mounting location: Wall mounting, material: Aluminum / glass, protection class: Space side: According to DIN EN 60529: IP66, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 44 3,000 W, number of bulbs / sockets: 10 piece, light current: 5,290 lm, color temperature: RGBW, angle of radiation: 1, Radiation angle: 40, adjustability: swiveling, with operating device: yes, dimmable: yes, type of dimming: DALI-DT6.
