Brumberg 65122103 65122103 LED bollard light LED (monochrome) w/o 8.5 W
EAN:
Part number:
Item no:
Highlights & Details

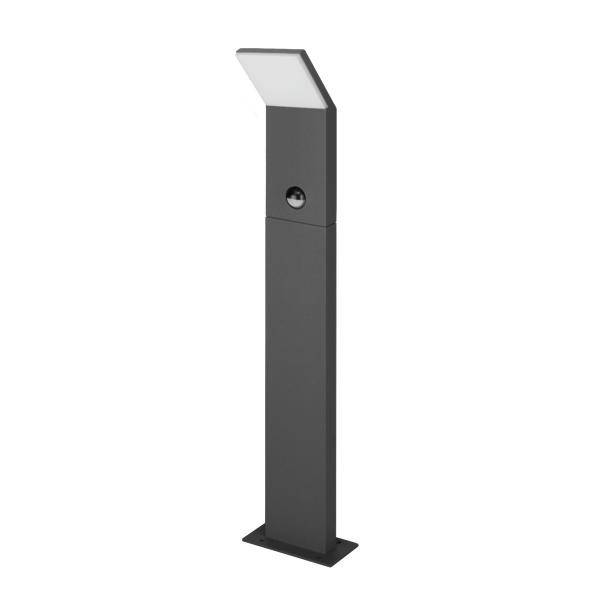

Brumberg lights LED bollard light 3000K, graphite 65122103
- Power= 8.5 W Total luminous flux= 680 lm Colour temperature= 3000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- With light sensor: No.
- With motion detector: Yes
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Socket: Without
- Material of housing: Aluminium
- Surface protection: Other
- Voltage type AC
- Nominal voltage: 230 V
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Protection class (IP) IP54
- Protection class: I
- Suitable for lamp output 8.5 W
- Max. System power 8.5 W
- Light emission: Direct
- Rated light current according to IEC 62722-2-1: 680 lm
- Light output 80 lm/W
- Light color: White
- Colour temperature: 3000 K
- Color Rendering Index CRI: 80-89
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.

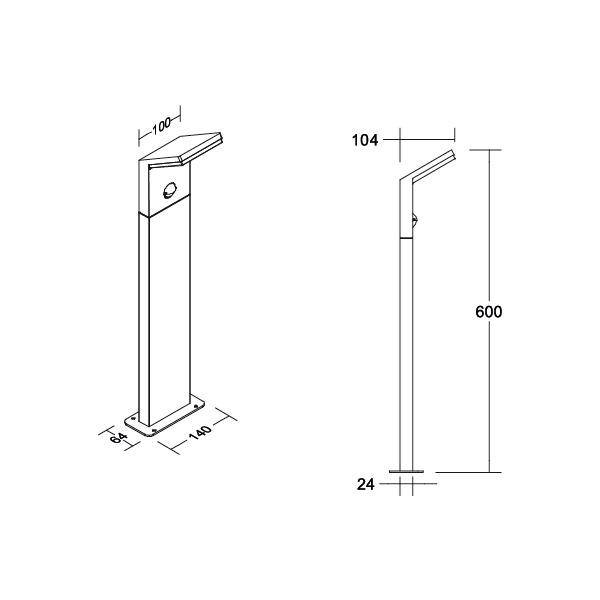

- Width 100 mm
- Height/depth 600 mm
- Length: 104 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Product type
LED bollard light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
w/o
- Rating per bulb
9 W
8.5 W
3000 K
- Colour
White
680 lm
- Total luminous flux
680 lm
- Light features
Incl. motion detector
- Protection class
I
IP54
- Material
Aluminium
- Dim
(L x W x H) 104.00 x 100.00 x 600.00 mm
n.rel.
- Type
Rectangular
- Light bulb included
Yes
- Width
100.00 mm
- Height
600.00 mm
- Length
104.00 mm
- Depth
600 mm
- Rated luminous flux
680 lm
- Colour rendering index
80-89
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3135822 Brumberg 65122103 65122103 LED bollard light LED (monochrome) w/o 8.5 W
Description
LED bollard light, IP54, structure graphite, rectangular. Design in a compact design for the harmonious implementation in an architectural space concept. Mounting type: Mounting, mounting location: Floor mounting, material: Aluminum / plastic, protection class: On the room side: According to DIN EN 60529: IP54, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 8.5 W, number of lights / sockets: 3,000 piece, light current: 120 lm, color temperature: From 3,000 K to 1 K, light color: White, angle: 680°, adjustable: not adjustable, with operating device: yes, Type of dimming: switchable.
