Brumberg 7412182032 LED surface-mount light LED (monochrome) 24 W Silver

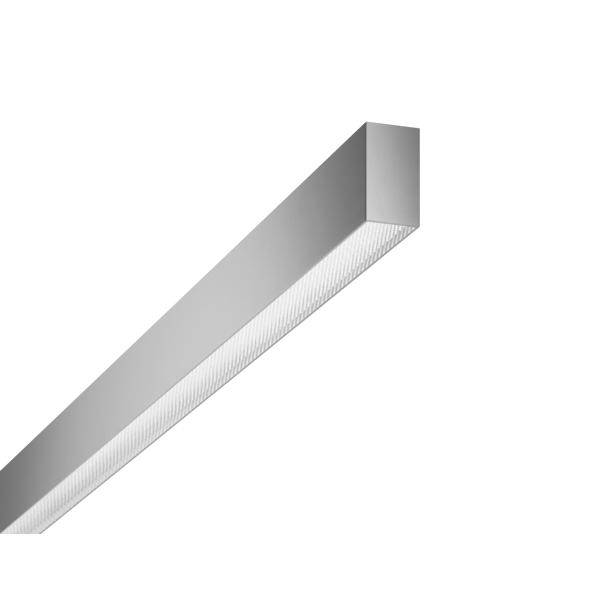

A long, silver rectangular light fixture shown diagonally on a plain white background.
A long, silver rectangular beam shown diagonally on a white background.
Diagram of light distribution in a cone, showing diameter Ø (m) and illuminance E0(0°) in lux at 1.0, 2.0, 3.0, 4.0, and 5.0 m, with values decreasing from 1303.5 to 52.1 lx.<br>
Polar light distribution diagram with a symmetrical yellow beam, showing angles from 30° to 90° and luminous intensity values 155, 310, 465, and 620 cd.
Simple technical drawing of a long horizontal rectangle labeled '2.260' with a small L-shaped detail below marked '75' and '40'.
1/5
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

  • Power= 24 W
  • Total luminous flux= 2700 lm
  • White

Technical specifications

Dim

(L x W x H) 2260 x 40 x 75 mm

Operating voltage

230 V AC

No. of bulbs

1

Product type

LED surface-mount light

Width

40 mm

Bulb type

LED (monochrome)

Height

75 mm

Length

2260 mm

Rating per bulb

24 W

24 W

Light features

Ceiling mount option

Incl. ballast

Dimmable

Direct light emission

Protection class

I

IP20 (Front)

IP20 (back panel)

Factory colour

Silver

Material

Aluminium

n.rel.

Colour rendering index

90-100

Colour

White

Light bulb included

Yes

Colour temperature (max.)

3000 K

Colour temperature (min.)

1800 K

Colour temperature range

1800 - 3000 K

Total luminous flux

2700 lm

Type

powder-coated

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3831859 Brumberg 7412182032 LED surface-mount light LED (monochrome) 24 W Silver

User & Safety Instructions

User & Safety Instructions 3831859 Brumberg 7412182032 LED surface-mount light LED (monochrome) 24 W Silver

Description

LED-attachment profile lamp direct, silver structure, rectangular. Design in a compact design for the harmonious implementation in an architectural space concept. Design: Without socket, mounting type: Mounting, mounting location: Ceiling mounting, material: Aluminium / steel / plastic, protection class: From room: According to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 24 W, light current: 80 lm, color temperature: From 3,000 K to 1,800 K, angle of radiation: 2,700°, adjustable: Not adjustable, with operating device: Yes, dimmable: Yes, Type of dimming: DALI DT8.

This text is machine translated.
