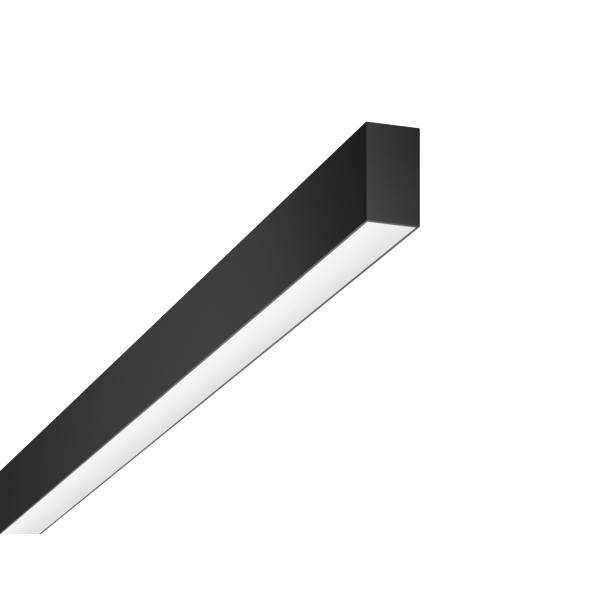

Brumberg 7413171016 LED surface-mount light LED (monochrome) 16.2 W Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Power= 16.2 W
- Total luminous flux= 1841 lm
- White
Technical specifications
- Dim
(L x W x H) 1140 x 40 x 75 mm
- Operating voltage
230 V AC
- No. of bulbs
1
- Product type
LED surface-mount light
- Width
40 mm
- Bulb type
LED (monochrome)
- Height
75 mm
- Length
1140 mm
- Rating per bulb
16.2 W
16.2 W
- Light features
Ceiling mount option
Incl. ballast
Dimmable
Direct light emission
- Protection class
I
IP20 (Front)
IP20 (back panel)
- Factory colour
Black
- Material
Aluminium
n.rel.
- Colour rendering index
90-100
- Colour
White
- Light bulb included
Yes
- Colour temperature (max.)
6500 K
- Colour temperature (min.)
2700 K
- Colour temperature range
2700 - 6500 K
- Total luminous flux
1841 lm
- Type
powder-coated
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3831868 Brumberg 7413171016 LED surface-mount light LED (monochrome) 16.2 W Black
User & Safety Instructions
User & Safety Instructions 3831868 Brumberg 7413171016 LED surface-mount light LED (monochrome) 16.2 W Black
Description
LED-attachment-profile lamp direct, BLK structure, rectangular. Design in a compact design for the harmonious implementation in an architectural space concept. Design: Without socket, mounting type: Mounting, mounting location: Ceiling mounting, material: Aluminium / steel / plastic, protection class: From room: According to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 16.2 W, light current: 80 lm, color temperature: From 2,700 K to 6,500 K, angle of radiation: 1,841°, adjustable: Not adjustable, with operating device: Yes, dimmable: Yes, Type of dimming: DALI DT8.
