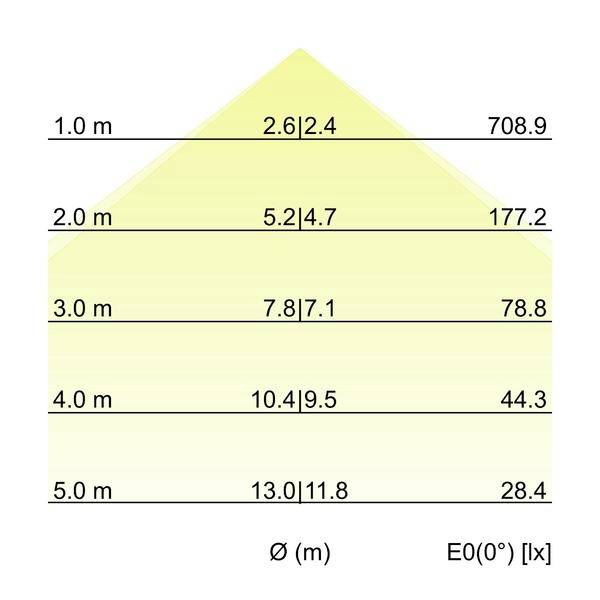

![Diagram of light spread in a room-shaped area, showing beam diameter Ø(m) and illuminance E0(0°) [lx] at heights from 1.0 m to 5.0 m.<br>](https://asset.conrad.com/media10/isa/160267/c1/-/en/003831952PI02T1789394270/image.jpg?x=400&y=400&format=jpg&ex=400&ey=400&align=center)
1/5
Brumberg 7428181016 LED recessed light LED (monochrome) 16.6 W Silver
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Power= 16.6 W
- Total luminous flux= 1720 lm
- White
Technical specifications
- Dim
(L x W x H) 1158 x 40 x 2 mm
- Operating voltage
230 V AC
- No. of bulbs
1
- Product type
LED recessed light
- Width
40 mm
- Bulb type
LED (monochrome)
- Height
2 mm
- Length
1158 mm
- Rating per bulb
16.6 W
16.6 W
- Light features
Ceiling mount option
Recess mount option
Incl. ballast
Dimmable
Direct light emission
- Protection class
I
IP20 (Front)
IP20 (back panel)
- Factory colour
Silver
- Material
Aluminium
n.rel.
- Colour rendering index
90-100
- Colour
White
- Light bulb included
Yes
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
1800 K
- Colour temperature range
1800 - 3000 K
- Total luminous flux
1720 lm
- Type
powder-coated
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3831952 Brumberg 7428181016 LED recessed light LED (monochrome) 16.6 W Silver
User & Safety Instructions
User & Safety Instructions 3831952 Brumberg 7428181016 LED recessed light LED (monochrome) 16.6 W Silver
Description
LED-installation-profile light direct, silver structure, rectangular. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Design: Without socket, mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminium / steel / plastic, protection class: Space side: According to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 16.6 W, light current: 1,720 lm, color temperature: From 3,000 K to 1,800 K, adjustability: Not adjustable, With operating device: Yes, dim: Yes, type of dimming: DALI DT8.
This text is machine translated.
This text is machine translated.
