Name: Brumberg 77134074 77134074 LED ceiling light LED (monochrome) w/o 35.8 W White
Brand: Brumberg
SKU: 3139023

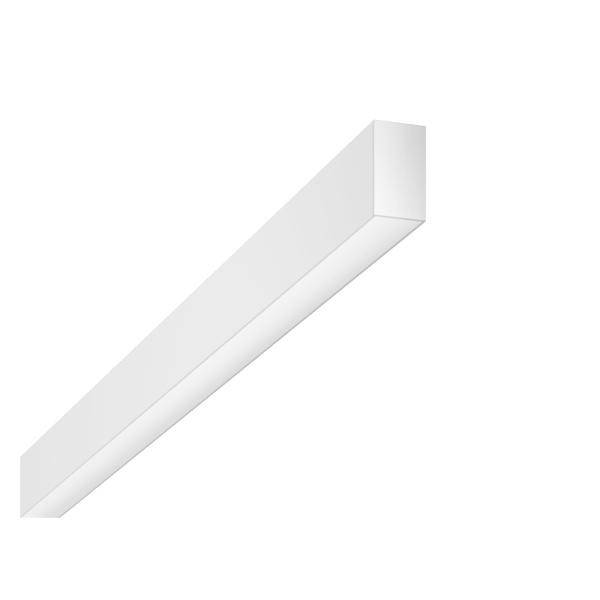

White, rectangular LED ceiling light in a minimalist design. Suitable for modern interiors and office lighting.

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Brumberg LED mounting profile lamp 4000K, DALI 77134074

Power= 35.8 W
Total luminous flux= 2860 lm
Colour temperature= 4000 K
Cool white

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Workplace training material - EN 12464-1: Yes
Suitable for light band configuration: No.
Socket: Without
Material of housing: Aluminium
Housing color: White
Design of grid: Without
Voltage type AC
Nominal voltage: 230 V
Operating device: LED operating device voltage-controlled
With operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
DALI dimming: Yes
Dimming DALI-2: No.
Dimmer DMX: No
Dimming programmable: No.
Dimmer DSI: No.
Dim. RF: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimmer function: No.
Reflector: Without
Light distribution: Symmetric
Light emission: Direct
Rated life L70/B50 at 25 °C: 60000 h
Protection class (IP) IP20
Protection class: I
Lamp with limited surface temperature "D-sign": No.
Integrated emergency power supply: No.
Suitable for lamp output 35.8 W
Max. System power 35.8 W
Rated light current according to IEC 62722-2-1: 2860 lm
Light color: White
Light output 79.89 lm/W
Colour temperature: 4000 K
Color Rendering Index CRI: 90-100
Constant luminous flux regulation: No.
Adjustable color temperature: No.
Luminous flux can be set: No
Adjustable radiation angle: No.
Width 40 mm
Height/depth 75 mm
Length: 2260 mm
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Bulb: LED not replaceable
With bulb: Yes

Dim: (L x W x H) 2260.00 x 40.00 x 75 mm

Type: Rectangular

Operating voltage: 230 V

Product type: LED ceiling light

Width: 40.00 mm

Bulb type: LED (monochrome)

Height: 75 mm

: w/o

Length: 2260.00 mm

Rating per bulb: 36 W

Depth: 75 mm

: 35.8 W

Light features: Dimmable

Protection class: I

: IP20

Factory colour: White

Material: Aluminium

: n.rel.

Colour rendering index: 90-100

Colour: Cool white

Light bulb included: Yes

: 4000 K

Colour temperature (max.): 4000 K

Colour temperature (min.): 4000 K

Colour temperature range: 4000 - 4000 K

Total luminous flux: 2860 lm

: 2860 lm

Rated luminous flux: 2860 lm

Nominal voltage: 230 V

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3139023 Brumberg 77134074 77134074 LED ceiling light LED (monochrome) w/o 35.8 W White

Description

LED-attachment profile, white, rectangular. Design in a compact design for the harmonious implementation in an architectural space concept. Mounting type: Mounting, mounting location: Ceiling mounting, material: Aluminum / acrylic, protection class on the room side: According to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 35.8W, light current: 2,860 lm, color temperature: 4,000 K, light color: White, Radiation angle: 80°, adjustability: not adjustable, with operating device: yes, type of dimming: DALI.
