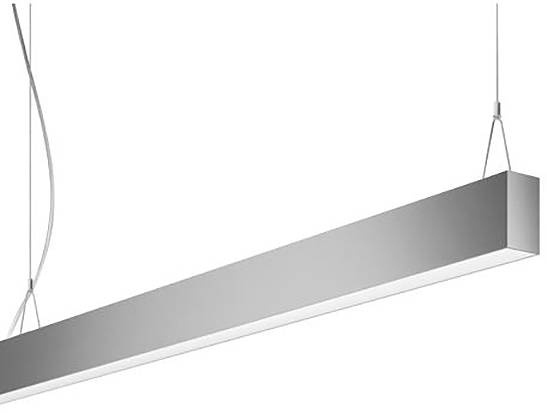

Brumberg 77244693 77244693 LED pendant light
EAN:
Part number:
Item no:
Technical specifications
- Width 40 mm
- Protection class (IP) IP20
- Protection class: I
- Material of housing: Aluminium
- Length: 2264 mm
- Nominal voltage: 230 V
- Voltage type AC
- Bulb: LED not replaceable
- Operating device: LED operating device voltage-controlled
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Colour temperature: 3000 K
- Color Rendering Index CRI: 90-100
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Height/depth 75 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- With bulb: Yes
- Housing color: Silver
- With operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: Without
- Light distribution: Symmetric
- Light emission: Direct
- Suitable for lamp output 62.7 W
- Max. System power 62.7 W
- Rated light current according to IEC 62722-2-1: 4850 lm
- Operation via Bluetooth: No.
- Suitable for light band configuration: No.
- Workplace training material - EN 12464-1: Yes
- Color consistency (McAdam ellipse): SDCM3
- Socket: Without
- With suspension: Yes
- Pendant length: 1500 mm
- Rated life L70/B50 at 25 °C: 60000 h
- Product type
LED pendant light
n.rel.
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549037 Brumberg 77244693 77244693 LED pendant light
Description
LED pendant profile light direct, silver, rectangular. Pendant mounting, ceiling mounting Design: Without socket, mounting type: Mounting mount, mounting location: Ceiling mounting, material: Aluminium / acrylic, protection class: Room side: According to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 62.7 W, light current: 4,850 lm, color temperature: 3,000 K, light color: White, Radiation angle: 80°, adjustability: not adjustable, with operating device: yes, type of dimming: DALI-DT6.
