1/3

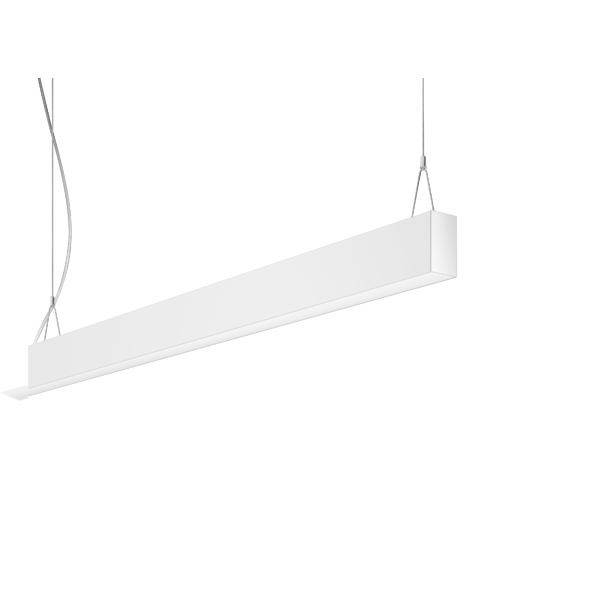

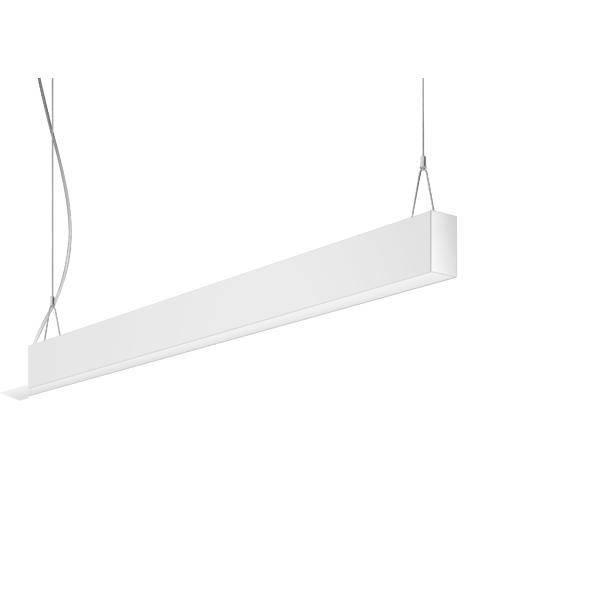

Brumberg 77354078 77354078 LED pendant light LED (monochrome) w/o 95 W White
EAN:
Part number:
Item no:
Highlights & Details
Brumberg LED hanging lights 2700-6500K, dim. 77354078
- Power= 95 W Total luminous flux= 11400 lm Colour temperature= 6500 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for screen workstations according to EN 12464-1: No.
- Suitable for light band configuration: No.
- Socket: Without
- Material of housing: Aluminium
- Housing color: White
- Design of grid: Without
- Voltage type AC
- Nominal voltage: 230 V
- Operating device: LED operating device voltage-controlled
- With operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: Yes
- Dimming DALI-2: No.
- Dimmer DMX: No
- Dimming programmable: No.
- Dimmer DSI: No.
- Dim. RF: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: Without
- Light distribution: Symmetric
- Light emission: Direct
- Rated life L70/B50 at 25 °C: 65000 h
- Protection class (IP) IP20
- Protection class: I
- Lamp with limited surface temperature "D-sign": No.
- Integrated emergency power supply: No.
- Suitable for lamp output 95 W
- Max. System power 95 W
- Rated light current according to IEC 62722-2-1: 11400 lm
- Light color: White
- Light output 120 lm/W
- Colour temperature 2700..6500 K
- Color Rendering Index CRI: 80-89
- Constant luminous flux regulation: No.
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.

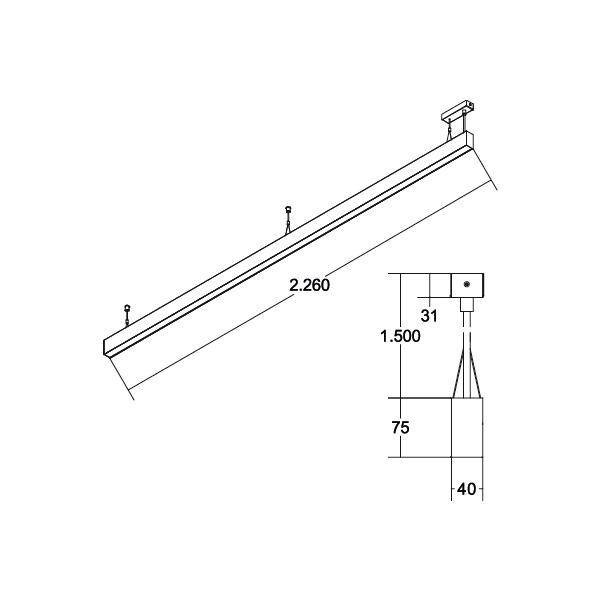

- Width 40 mm
- Height/depth 75 mm
- Length: 2260 mm
- With suspension: Yes
- Pendant length: 1500 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Product type
LED pendant light
- Operating voltage
230 V
- Bulb type
LED (monochrome)
w/o
- Rating per bulb
95 W
95 W
- Light features
Dimmable
- Protection class
I
IP20
- Factory colour
White
- Material
Aluminium
- Dim
(L x W x H) 2260.00 x 40.00 x 75.00 mm
n.rel.
- Type
Rectangular
- Colour
White
- Light bulb included
Yes
6500 K
- Total luminous flux
11400 lm
11400 lm
- Width
40.00 mm
- Height
75.00 mm
- Length
2260.00 mm
- Depth
75 mm
- Rated luminous flux
11400 lm
- Colour rendering index
80-89
- Colour temperature (max.)
6500 K
- Colour temperature (min.)
2700 K
- Nominal voltage
230 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3139627 Brumberg 77354078 77354078 LED pendant light LED (monochrome) w/o 95 W White
Description
LED pendant profile light direct/indirect, white, rectangular Pendant mounting, ceiling mounting method: Pendant mounting, mounting location: Ceiling mounting, material: Aluminum / acrylic, protection class: Room-side: According to DIN EN 60529, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 95W, light current: 80 lm, color temperature: From 2,700 K to 6,500 K, light color: White, angle of radiation: 11,400°, adjustable: Not adjustable, with operating device: Yes, Type of dimming: DALI DT8.
