Name: Brumberg 88183184DA LED track spotlight w/o 31 W LED (monochrome) Black
Brand: Brumberg
SKU: 3548244

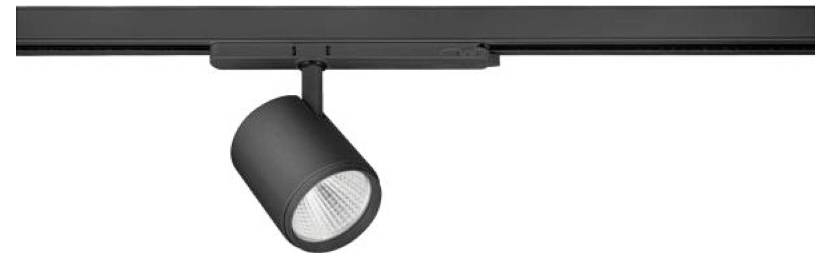

Black track lighting fixture with a single adjustable spotlight mounted on a rail.

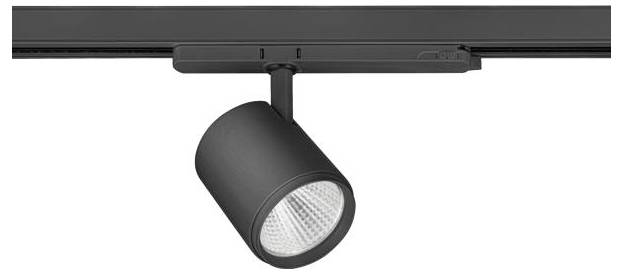

A black cylinder-shaped track light fixture mounted on a linear track, with a spotlight design, used for directional lighting in a room.

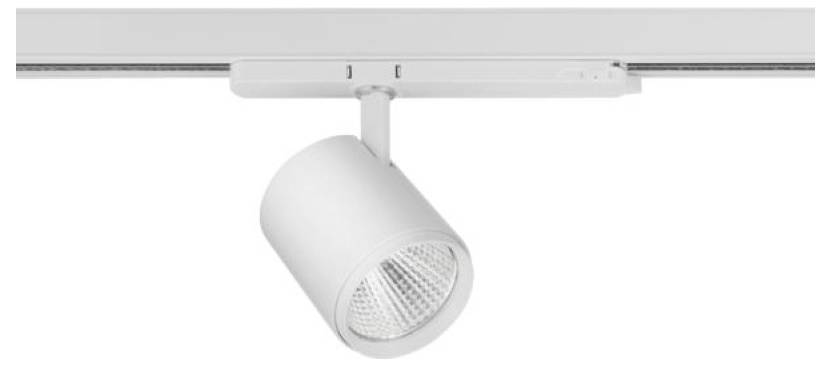

White adjustable track light spotlight mounted on a ceiling track, angled downward.

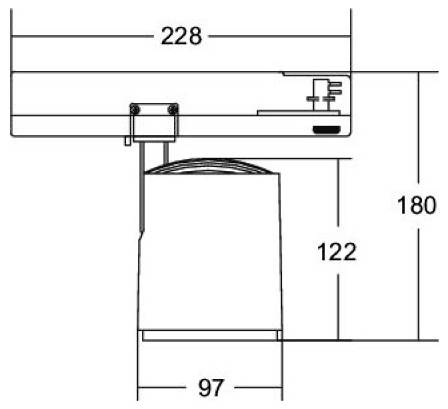

Technical dimension drawing of a device showing overall width 228, height 180, central component height 122, and base width 97.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Brumberg LED lights-rail emitter 230V 4000K 88183184DA

Power= 31 W Total luminous flux= 3989 lm Colour temperature= 4000 K White

Technical specifications

Protection class (IP) IP20
Surface protection: Powder-coated
Protection class: I
Material of housing: Aluminium
Nominal voltage: 230 V
Voltage type AC
Bulb: LED not replaceable
Operating device: LED operating device current-controlled
Energy efficiency class of light source according to EU directive 2019/2015: Not required
Light color: White
Colour temperature: 4000 K
Color Rendering Index CRI: 90-100
Adjustable color temperature: No.
Luminous flux can be set: No
Adjustable radiation angle: No.
Type of wiring: Finish
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Suitable for mounting on the panel: Yes
Suitable for panel mounting: No.
Suitable for wall mounting: No.
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: No.
Suitable for traverse installation: No.
Suitable for cable system: No.
With motion detector: No.
With light sensor: No.
With bulb: Yes
Suitable for the number of bulbs: 1
Black enclosure
Surface brushed: No.
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
Dimming DALI-2: No.
DALI dimming: Yes
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimmer function: No.
Reflector: High-gloss
Light distribution: Symmetric
Suitable for lamp output 31 W
Max. System power 31 W
Luminous flux: 3989 lm
Rated light current according to IEC 62722-2-1: 3989 lm
Operation via Bluetooth: No.
Outer diameter: 97 mm
Suitable for pedestal-/floor mounting: No.
Suitable for rail mounting: Yes
Suitable for clamp mounting: No.
Socket: Without

Product type: LED track spotlight

Operating voltage: 230 V

No. of bulbs: 1

: w/o

Bulb type: LED (monochrome)

Rating per bulb: 31 W

: 31 W

: 4000 K

Colour: White

Total luminous flux: 3989 lm

Light features: Dimmable

Protection class: IP20

Factory colour: Black

Material: Aluminium

: n.rel.

(Ø): 97 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3548244 Brumberg 88183184DA LED track spotlight w/o 31 W LED (monochrome) Black

User & Safety Instructions

User & Safety Instructions 3548244 Brumberg 88183184DA LED track spotlight w/o 31 W LED (monochrome) Black

Description

LED-rail emitter, DALI dimmable, structural black, round. Design in a compact design for the harmonious implementation in an architectural space concept. Design: Without socket, mounting type: Mounting, mounting location: Ceiling mounting, material: Aluminum, protection class: Room side: According to DIN EN 60529, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 31 W, number of bulbs / sockets: 30 piece, light current: 3,989 lm, color temperature: 4,000 K, light color: White, angle of radiation: 1°, Adjustable: rotating and head adjustable, With operating device: Yes, type of dimming: DALI.
