![Diagram of illuminance from a ceiling light: pyramid beam spread labeled Ø (m) and E0(0°) [lx], with values decreasing from 15823.0 at 1.0 m to 632.9 at 5.0 m.](https://asset.conrad.com/media10/isa/160267/c1/-/en/003550786PI05/image.jpg?x=400&y=400&format=jpg&ex=400&ey=400&align=center)
1/6
Brumberg 88184173DA LED track spotlight 33.5 W LED (monochrome) White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Brumberg lights LED-track emitters 230V 3000K 88184173DA
- Power= 33.5 W Total luminous flux= 4332 lm Colour temperature= 3000 K White
Technical specifications
- Protection class (IP) IP20
- Surface protection: Powder-coated
- Protection class: I
- Material of housing: Aluminium
- Nominal voltage: 230 V
- Voltage type AC
- Bulb: LED not replaceable
- Operating device: LED operating device current-controlled
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Colour temperature: 3000 K
- Color Rendering Index CRI: 90-100
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Type of wiring: Finish
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on the panel: Yes
- Suitable for panel mounting: No.
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: No.
- Suitable for traverse installation: No.
- Suitable for cable system: No.
- With motion detector: No.
- With light sensor: No.
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Housing color: White
- Surface brushed: No.
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: High-gloss

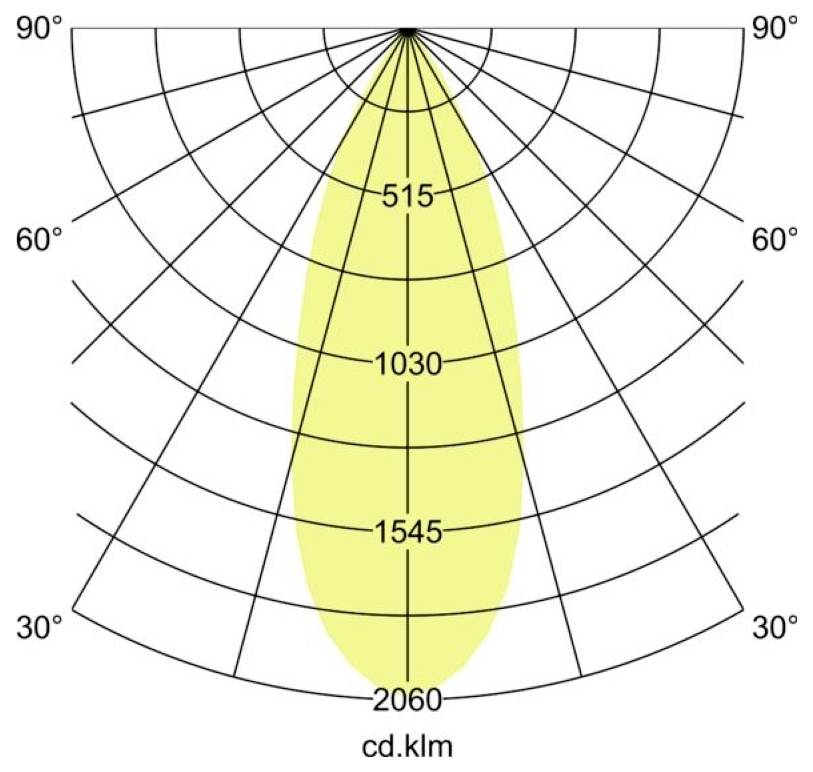

- Light distribution: Symmetric
- Suitable for lamp output 33.5 W
- Max. System power 33.5 W
- Luminous flux: 4332 lm
- Rated light current according to IEC 62722-2-1: 4332 lm
- Operation via Bluetooth: No.

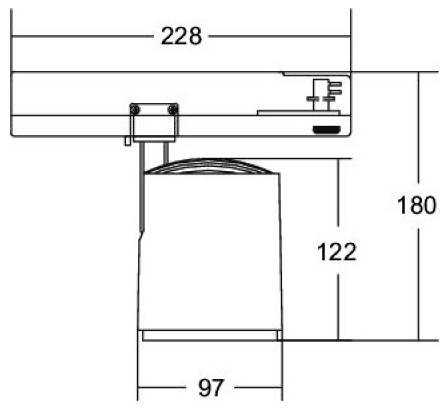

- Outer diameter: 97 mm
- Suitable for pedestal-/floor mounting: No.
- Suitable for rail mounting: Yes
- Suitable for clamp mounting: No.
- Max. Number of lights circuit breaker B16: 20
- Max. Number of lamps line circuit breakers C16: 32
- Product type
LED track spotlight
- Operating voltage
230 V AC
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
33.5 W
33.5 W
3000 K
- Colour
White
4332 lm
- Total luminous flux
4332 lm
- Light features
Dimmable
- Protection class
I
- Factory colour
White
- Material
Aluminium
n.rel.
- (Ø)
97 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3550786 Brumberg 88184173DA LED track spotlight 33.5 W LED (monochrome) White
User & Safety Instructions
User & Safety Instructions 3550786 Brumberg 88184173DA LED track spotlight 33.5 W LED (monochrome) White
Description

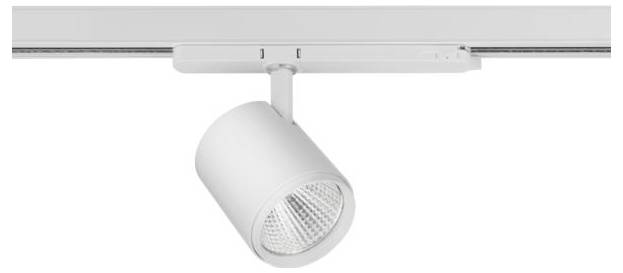

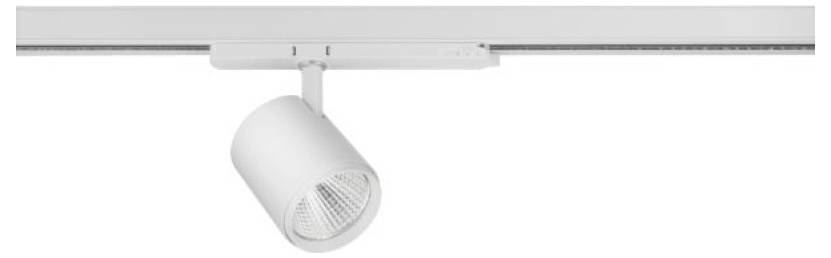

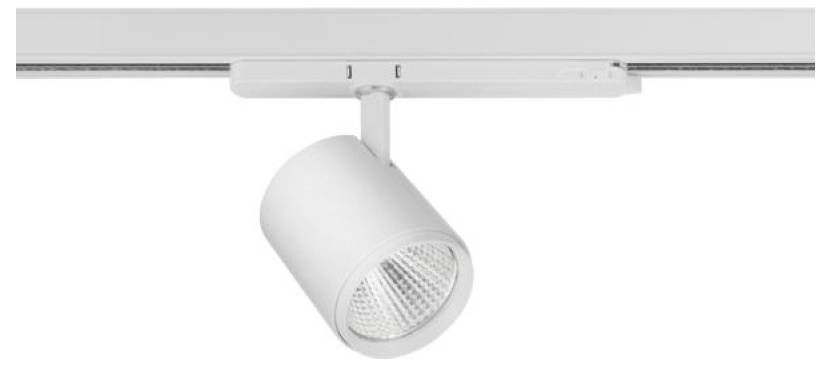

LED-rail emitter, rotary and swiveling, DALI dimmable, structural white, round. Design in a compact design for the harmonious implementation in an architectural space concept. Mounting type: Mounting, mounting location: Ceiling mounting, material: Aluminum, protection class on room side: According to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 33.5 W, number of bulbs / sockets: 1 piece, light current: 4,332 lm, color temperature: 3,000 K, light color: White, angle of radiation: 40°, Adjustable: rotating and head adjustable, With operating device: Yes, type of dimming: DALI.
This text is machine translated.
This text is machine translated.
