Brumberg 88271163DA LED recessed light LED (monochrome) Silver
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Total luminous flux= 5174 lm Colour temperature= 3000 K White
Technical specifications
- Product type
LED recessed light
- Operating voltage
230 V AC
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
41.5 W
- Total luminous flux
5174 lm
3000 K
- Colour
White
- Protection screen
Clear

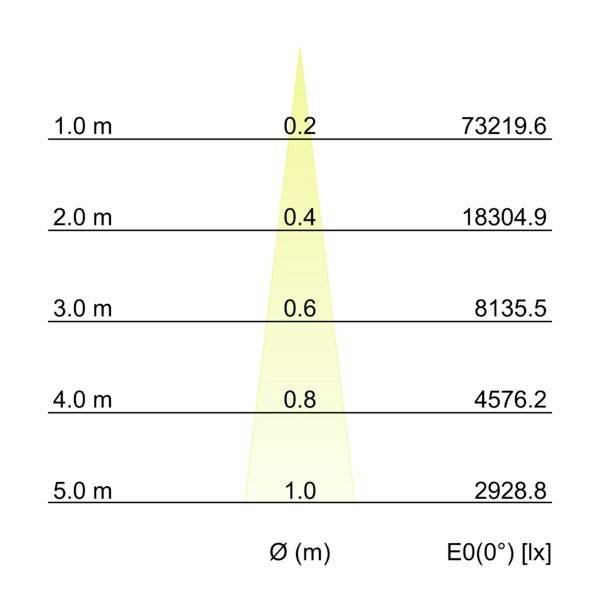

- Radiation angle
20°
- Light features
Recess mount option
Ceiling mount option
Pivoted
Swivelling
Incl. ballast
Dimmable
Direct light emission
- Recess diameter
170 mm
- Recess depth
136 mm
- Outside Ø
182 mm
- Protection class
II
- Factory colour
Silver
- Material
Aluminium
Glass
n.rel.
Yes
- Light bulb included
Yes
- Colour temperature range
3000 K
- Height
3 mm
- Type
powder-coated
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3832673 Brumberg 88271163DA LED recessed light LED (monochrome) Silver
User & Safety Instructions
User & Safety Instructions 3832673 Brumberg 88271163DA LED recessed light LED (monochrome) Silver
Description
LED installation emitter, rotary and swiveling, DALI dimmable, reflector silver, faceted, structure silver, round. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminium / glass / plastic, protection class: On the room side: According to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 41.5 3,000 W, number of lights / sockets: 12 piece, light current: 5,174 lm, color temperature: White, radiation angle: 1°, Adjustable: rotatable and head-adjustable, with operating device: yes, type of dimming: DALI-DT6.
This text is machine translated.
This text is machine translated.
