Brumberg 88373174 88373174 LED track spotlight LED (monochrome) w/o 32 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg 4000K 36Gr ws 88373174 LED Rail Lights
- Power= 32 W
- Total luminous flux= 2762 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Beam angle: Medium radiation 21-40°
- Type of wiring: Termination
- Operating device: LED operating device current-controlled
- Suitable for installation: Yes
- Suitable for busbar mounting: Yes
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: Yes
- With bulb: Yes
- Reflector: High gloss
- Product type
LED track spotlight
- Operating voltage
230 V AC
- No. of bulbs
1
- Bulb type
LED (monochrome)
w/o
- Rating per bulb
32 W
32 W
- Light features
Pivoted
Swivelling
Ceiling mount option
- Factory colour
White
- Material
Aluminium
- Dim
(Ø x H) 100 mm x 245 mm
n.rel.
No
- Weight
1.4 kg
- Colour
White
- Light bulb included
Yes
4000 K
- Total luminous flux
2762 lm
2762 lm
- Width
230 mm
- Height
245 mm
- Length
245 mm
- (Ø)
100 mm
IP20
- Protection class
I
Documents & Downloads
Datasheet
Datasheet 2292543 Brumberg 88373174 88373174 LED track spotlight LED (monochrome) w/o 32 W White
User & Safety Instructions
User & Safety Instructions 2292543 Brumberg 88373174 88373174 LED track spotlight LED (monochrome) w/o 32 W White
Description

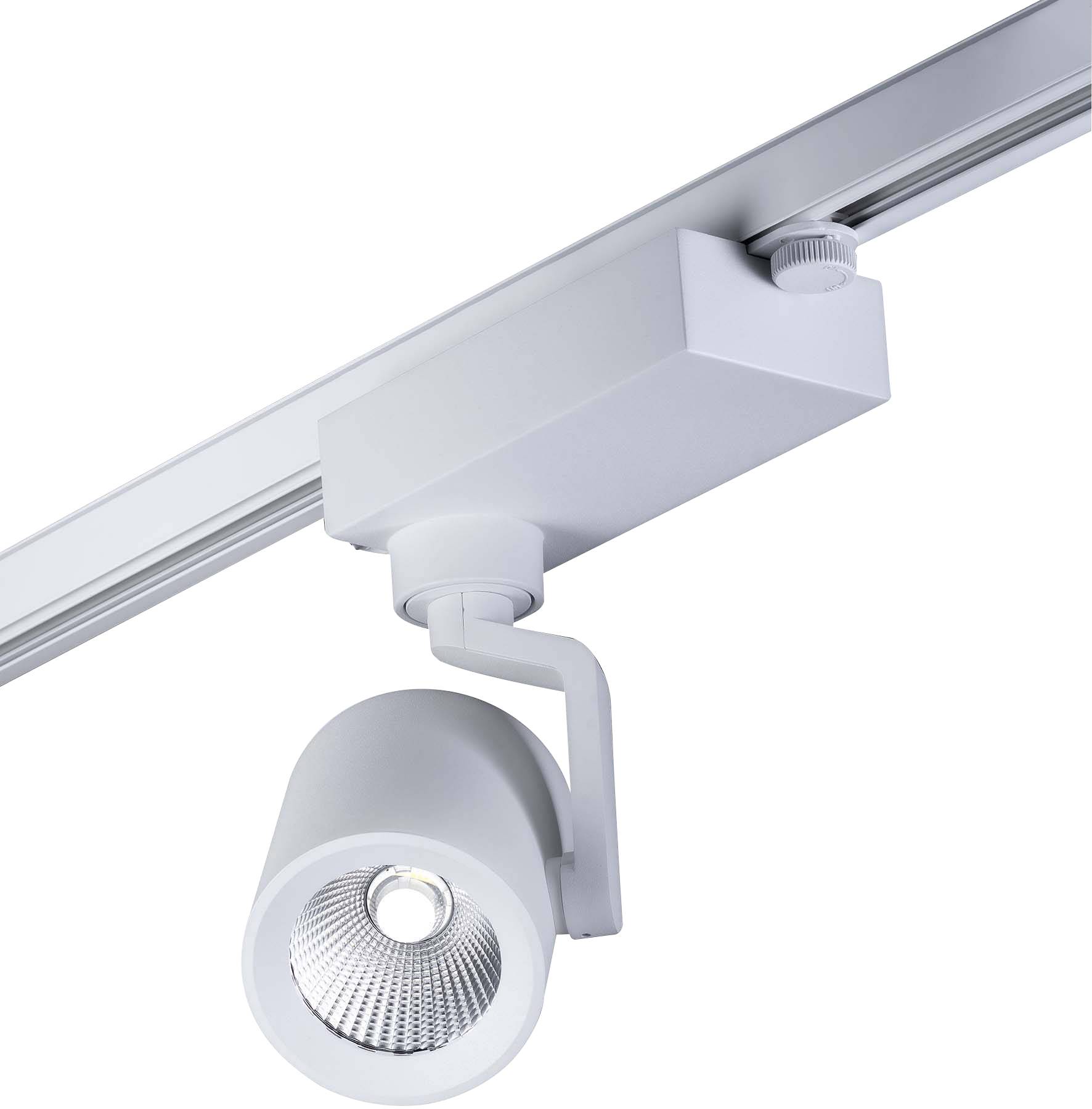

LED-Rail floodlight CORE, white. Compact design for harmonious implementation in harmonious, architectural room concepts. Heat dissipation: Passive (without fan), rotation angle: rotating/swiveling, lamp dimensions: Ø 100 mm x 245 mm, weight: 1.4 kg. Incl. Operating device, switchable, power factor > 0.9 (230 V AC 50 Hz). Light incl. Euro adapter for standard 3-phase rails, socket: Without, mounting type: Mounting mounting, mounting location: Ceiling mounting, material: Aluminum / glass / plastic, protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 34W, number of bulbs / sockets: 1.0 pcs, light current: 2,762lm, color temperature: 4000K, light color color: White, angle: 36° Adjustability: Rotatable and adjustable head, with operating device, type of dimming: Switchable,
