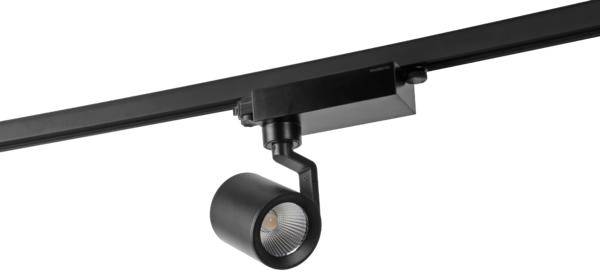

Brumberg 88373185 High voltage mounting rail light w/o 32 W LED (monochrome) Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg LED rail spotlight 3500K 88373185
- Power= 32 W
- Total luminous flux= 2724 lm
- Colour temperature= 3500 K
- White
Technical specifications
- Operating device: LED operating device current-controlled
- Color rendering index CRI: 80-89
- Suitable for installation: Yes
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: no.
- Suitable for clamp mounting: no.
- Suitable for busbar mounting: Yes
- Lamp: LED not replaceable
- Light distribution: Symmetrical
- With operating device: Yes
- With bulb: Yes
- Reflector: High gloss
- Voltage type: AC
- Product type
High voltage mounting rail light
- Operating voltage
230 V
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
32 W
32 W
3500 K
- Colour
White
2724 lm
- Total luminous flux
2724 lm
- Light features
Pivoted
Swivelling
IP20
- Protection class
I
- Factory colour
Black
- Material
Aluminium
- Weight
1.4 kg
- Dim
(Ø x H) 100 mm x 245 mm
n.rel.
- Width
230 mm
- Height
245 mm
- (Ø)
100 mm
- Light bulb included
Yes
- Outside Ø
100 mm
Documents & Downloads
Datasheet
Datasheet 2291229 Brumberg 88373185 High voltage mounting rail light w/o 32 W LED (monochrome) Black
User & Safety Instructions
User & Safety Instructions 2291229 Brumberg 88373185 High voltage mounting rail light w/o 32 W LED (monochrome) Black
Description
CORE LED rail light Compact design for harmonious implementation in harmonious, architectural room concepts. Heat dissipation: Passive (without fan), rotation angle: rotating/swiveling, lamp dimensions: Ø 100 mm x 245 mm, weight: 1.4 kg. Incl. Operating device, switchable, power factor > 0.9 (230 V AC 50 Hz). Light incl. Euro adapter for standard 3-phase rails, socket: Without, mounting type: Mounting mounting, mounting location: Ceiling mounting, material: Aluminum / glass / plastic, protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 32W, number of bulbs / sockets: 1.0 pcs, light current: 2.724lm, color temperature: 3500K, light color: White, angle: 36° Rotatable and adjustable head, with operating device, type of dimming: Switchable,
