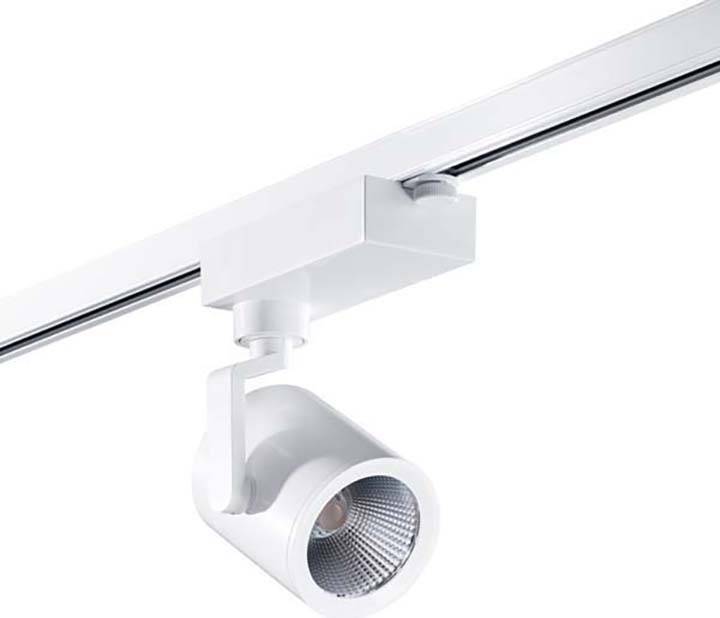

Brumberg 88377175 88377175 LED track spotlight LED (monochrome) w/o 43 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg lights LED-rail emitter 38Gr.,3500K, ws 88377175
- Power= 43 W
- Total luminous flux= 3917 lm
- Colour temperature= 3500 K
- White
Technical specifications
- Beam angle: Medium radiation 21-40°
- Type of wiring: Termination
- Operating device: LED operating device current-controlled
- Suitable for installation: Yes
- Suitable for busbar mounting: Yes
- Lamp: LED not replaceable
- Light distribution: Symmetrical
- With operating device: Yes
- With bulb: Yes
- Reflector: High gloss
- Product type
LED track spotlight
- Operating voltage
230 V AC
- No. of bulbs
1
- Bulb type
LED (monochrome)
w/o
- Rating per bulb
43 W
43 W
- Light features
Pivoted
Swivelling
Ceiling mount option
- Factory colour
White
- Material
Aluminium
- Dim
(Ø x H) 116 mm x 237 mm
n.rel.
No
- Weight
1.8 kg
- Colour
White
- Light bulb included
Yes
3500 K
- Total luminous flux
3917 lm
3.917 lm
- Width
116 mm
- Height
237 mm
- Length
268 mm
- (Ø)
116 mm
IP20
- Protection class
I
Documents & Downloads
Datasheet
Datasheet 2294108 Brumberg 88377175 88377175 LED track spotlight LED (monochrome) w/o 43 W White
User & Safety Instructions
User & Safety Instructions 2294108 Brumberg 88377175 88377175 LED track spotlight LED (monochrome) w/o 43 W White
Description
LED-Rail floodlight CORE, white. Compact design for harmonious implementation in harmonious, architectural room concepts. Heat dissipation: Passive (without fan), rotation angle: rotating/swiveling, lamp dimensions: Ø 116 mm x 237 mm, weight: 1.8 kg. Incl. Operating device, switchable, power factor > 0.9 (230 V AC 50 Hz). Light incl. Euro adapter for standard 3-phase rails. Socket: None, Mounting type: Mounting, Mounting location: Ceiling mounting, Material: Aluminum / glass / plastic, Protection type: According to DIN EN 60529: IP20, Protection class: (EN 61140) I, Voltage: 230V AC 50Hz, Power: 43.2W, Number of bulbs / sockets: 1.0 pcs, Light current: 3.917lm, Color temperature: 3500K, Light color: White, Radiation angle: 38°, Adjustability: Rotatable and adjustable head, with operating device, type of dimming: Switchable,
