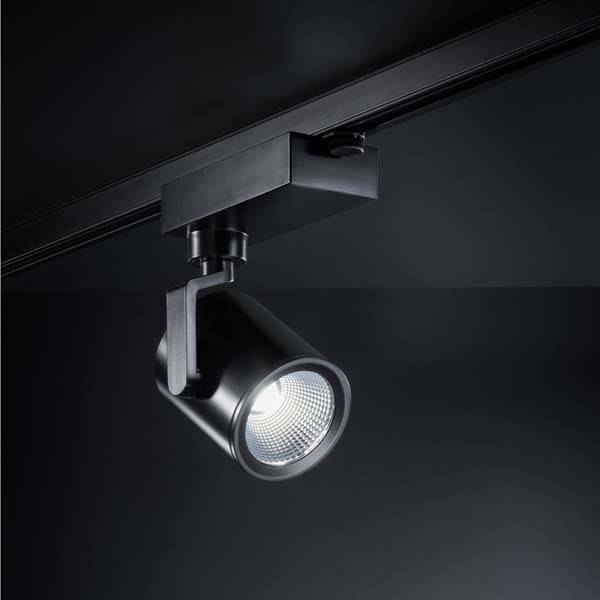

Brumberg 88377185 High voltage mounting rail light w/o 43 W LED (monochrome) Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Lights LED Rail Lights 38Gr.,3500K, sw 88377185
- Power= 43 W Total luminous flux= 3917 lm Colour temperature= 3500 K White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 3917 lm
- Operating device: LED operating device current-controlled
- Colour temperature: 3500 K
- Color rendering index CRI: 80-89
- Suitable for installation: Yes
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: no.
- Suitable for clamp mounting: no.
- Suitable for busbar mounting: Yes
- Lamp: LED not replaceable
- Light distribution: Symmetrical
- With operating device: Yes
- With bulb: Yes
- Reflector: High gloss
- Voltage type: AC
- Product type
High voltage mounting rail light
- Operating voltage
230 V
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
43 W
43 W
3500 K
- Colour
White
3917 lm
- Total luminous flux
3917 lm
- Max. length
237 mm
- Light features
Pivoted
Swivelling
IP20
- Protection class
I
- Factory colour
Black
- Material
Aluminium
- Weight
1.8 kg
n.rel.
- Width
116 mm
- Height
237 mm
- Length
268 mm
- (Ø)
116 mm
- Outside Ø
116 mm
- Radiation angle
40°
Documents & Downloads
Datasheet
Datasheet 2291177 Brumberg 88377185 High voltage mounting rail light w/o 43 W LED (monochrome) Black
User & Safety Instructions
User & Safety Instructions 2291177 Brumberg 88377185 High voltage mounting rail light w/o 43 W LED (monochrome) Black
Description
CORE LED rail spotlight, black. Compact design for harmonious implementation in harmonious, architectural room concepts. Heat dissipation: Passive (without fan), rotation angle: rotating/swiveling, lamp dimensions: Ø 116 mm x 237 mm, weight: 1.8 kg. Incl. Operating device, switchable, power factor > 0.9 (230 V AC 50 Hz). Light incl. Euro adapter for standard 3-phase rails. Socket: None, Mounting type: Mounting, Mounting location: Ceiling mounting, Material: Aluminum / glass / plastic, Protection type: According to DIN EN 60529: IP20, Protection class: (EN 61140) I, Voltage: 230V AC 50Hz, Power: 43.2W, Number of bulbs / sockets: 1.0 pcs, Light current: 3.917lm, Color temperature: 3500K, Light color: White, Radiation angle: 38°, Adjustable: Rotatable and adjustable head, with operating device, type of dimming: Switchable,
