Brumberg 88398183 88398183 High voltage mounting rail light 1-phase w/o 32 W LED (monochrome) Black
EAN:
Part number:
Item no:
Highlights & Details
Brumberg 1-ph LED rail spotlights DALI, 3000K 88398183
- Power= 32 W
- Colour temperature= 3000 K
- Warm white
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for panel mounting: No.
- Suitable for mounting on the panel: Yes
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for traverse installation: No.
- Suitable for pedestal-/floor mounting: No.
- Suitable for rail mounting: Yes
- Suitable for clamp mounting: Yes
- Suitable for cable system: No.
- With motion detector: No.
- With light sensor: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Socket: Without
- Material of housing: Aluminium
- Surface protection: Other
- Black enclosure
- Surface brushed: No.
- Voltage type AC
- Nominal voltage: 230 V
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Dimming depends on the operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: High-gloss
- Light distribution: Symmetric
- Radiation angle: Medium radiation 21-40°
- Constant luminous flux regulation: No.
- Protection class (IP) IP20
- Protection class: I
- Suitable for lamp output 32 W
- Max. System power 32 W
- Light color: White
- Colour temperature: 3000 K
- Color Rendering Index CRI: 90-100
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Height/depth 263 mm
- Length: 235 mm
- Type of wiring: Finish
- Lamp with limited surface temperature "D-sign": No.
- Integrated emergency power supply: No.
- Light output 32 lm/W
- IFTTT support available: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- Product type
High voltage mounting rail light
- Series
1-phase
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
w/o
- Rating per bulb
32 W
32 W
3000 K
- Colour
Warm white
- Light features
Dimmable
IP20
- Protection class
I
- Factory colour
Black
- Material
Aluminium
n.rel.
- Height
263 mm
- Length
235.00 mm
- Colour rendering index
90-100
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Light bulb included
Yes
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3138942 Brumberg 88398183 88398183 High voltage mounting rail light 1-phase w/o 32 W LED (monochrome) Black
Description

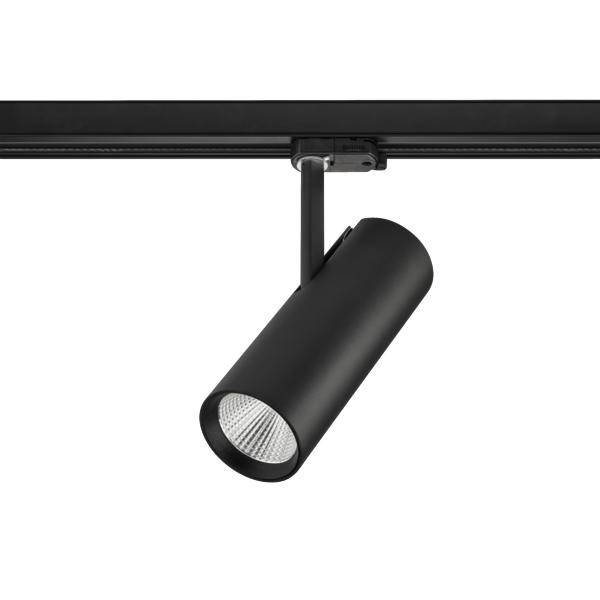

LED-rail emitter, structure black, round. Busbar mounting, ceiling mounting Heat dissipation: Passive (without fan), incl. operating device, switchable, (230 V AC 50 Hz). Light including Euro adapter for standard 3-phase rails. Mounting type: Busbar mounting, mounting location: Ceiling mounting, material: Aluminium, protection class on the room side: According to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 32W, number of lights / sockets: 1.0 pcs, color temperature: 3,000 K, light color: White, angle of radiation: 30°, adjustability: Swivel and head adjustable, with operating device: Yes, type of dimming: DALI.
