Image similar

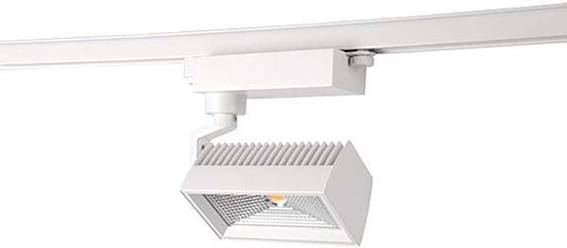

Brumberg 88687175 High voltage mounting rail light 3-phase w/o 43 W LED (monochrome) White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Lights LED Wallwasher 3500K white 8868687175
- Power= 43 W
- Total luminous flux= 3694 lm
- Colour temperature= 3500 K
- White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 3679 lm
- Operating device: LED operating device current-controlled
- With bulb: Yes
- Colour temperature: 3500 K
- Color rendering index CRI: 80-89
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for wall mounting: no.
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: Yes
- With bulb: Yes
- Reflector: High gloss
- Voltage type: AC
- Cover material: Transparent glass
- Product type
High voltage mounting rail light
- Series
3-phase
- Operating voltage
230 V
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
43 W
43 W
3500 K
- Colour
White
3.694 lm
- Total luminous flux
3694 lm
- Light features
Swivelling
- Radiation angle
80°
IP20
- Protection class
II
- Factory colour
White
- Material
Aluminium
- Weight
1.1 kg
- Dim
(L x W x H) 235 x 145 x 90 mm
n.rel.
- Width
145 mm
- Height
90 mm
- Length
235 mm
Documents & Downloads
Datasheet
Datasheet 2292995 Brumberg 88687175 High voltage mounting rail light 3-phase w/o 43 W LED (monochrome) White
User & Safety Instructions
User & Safety Instructions 2292995 Brumberg 88687175 High voltage mounting rail light 3-phase w/o 43 W LED (monochrome) White
Description
LED flush-mounted wallwasher, white. Designed in a compact design for quick mounting without tools for ceiling installation. Incl. Light source: 1x LED COB, power LED: 40 W, system performance: 43.2 W, heat dissipation: Passive (without fan), material: Aluminum / glass, rotation angle: Swiveling, lamp dimensions: L 235 mm x W 145 mm x H 90 mm, color reproduction: CRI > 80, weight: 1.1 kg, mechanical installation depth depending on the swivel angle (45° - 0°) from 50 mm - 90 mm. Incl. Operating device, switchable, power factor > 0.9 (230 V AC 50 Hz). Socket: None, Mounting type: Installation, Mounting location: Ceiling mounting, Material: Aluminum / glass, Protection type: According to DIN EN 60529: IP20, Protection class: (EN 61140) II, Voltage: 230V AC 50Hz, Power: 43.2W, Number of bulbs / sockets: 1.0 Stk, Light current: 3.694lm, Color temperature: 3500K, Light color: White, Radiation angle: 110°, Adjustable: Can be swiveled, with operating type:
