Name: Brumberg 88706184DA LED track spotlight 14.5 W LED (monochrome) Black
Brand: Brumberg
SKU: 3549288

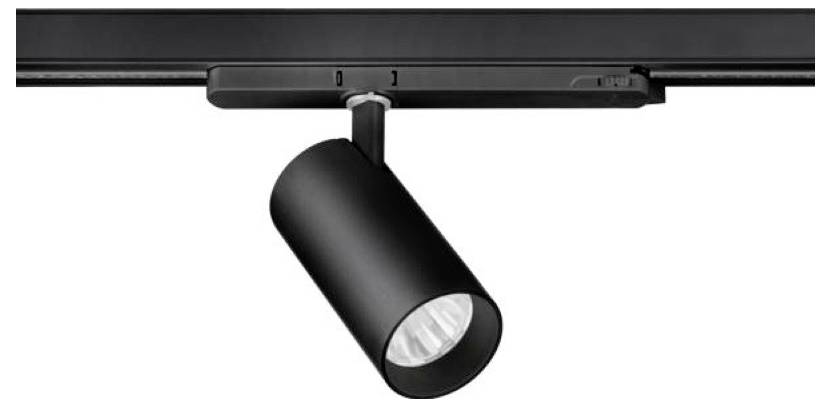

Black cylindrical track light spotlight mounted on a ceiling rail, angled downward.

A black track light with a cylindrical spotlight is mounted on a rail, positioned to direct light downward.

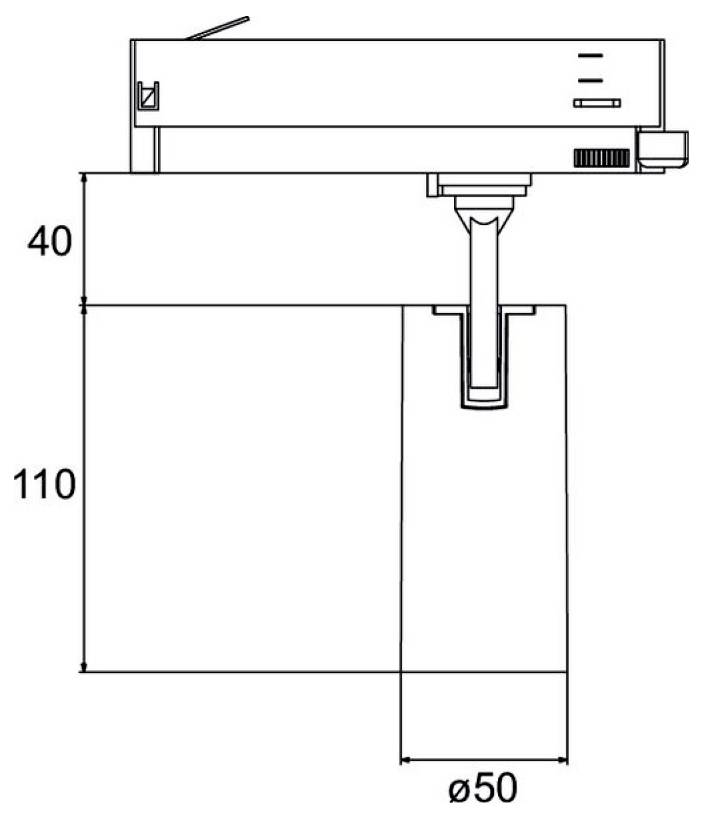

Technical drawing of a cylindrical faucet or fixture with dimensions marked 40, 110, and diameter 50 mm.

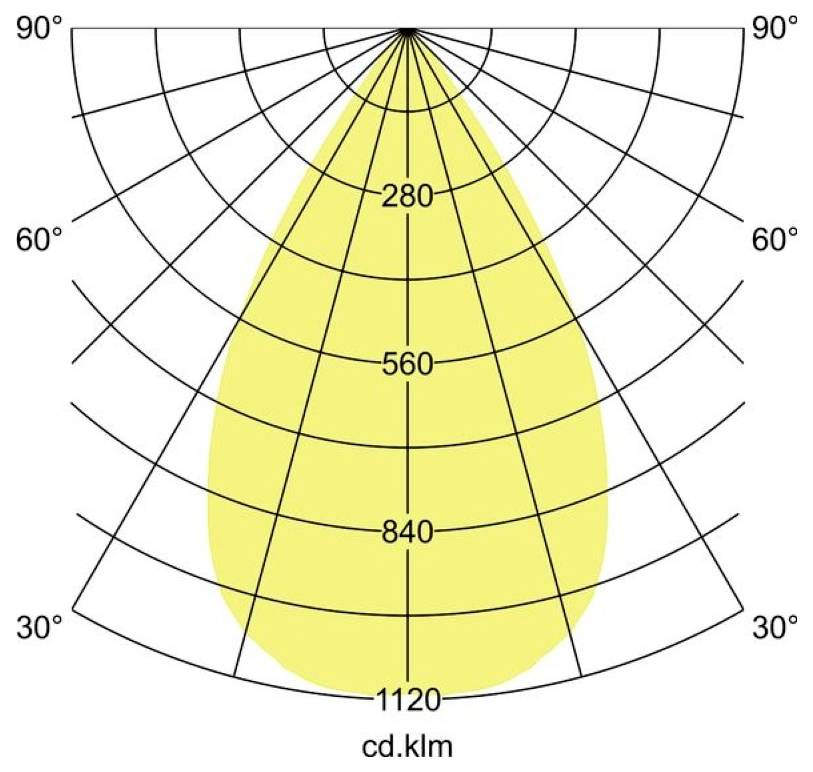

Polar light distribution chart showing a symmetric yellow beam, with angle labels from 30° to 90° and intensity marked 280, 560, 840, 1120 cd.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Brumberg LED track spotlight 230V 4000K 88706184DA

Power= 14.5 W Total luminous flux= 1782 lm Colour temperature= 4000 K White

Technical specifications

Protection class (IP) IP20
Surface protection: Powder-coated
Protection class: II
Material of housing: Aluminium
Nominal voltage: 230 V
Voltage type AC
Bulb: LED not replaceable
Operating device: LED operating device current-controlled
Energy efficiency class of light source according to EU directive 2019/2015: Not required
Light color: White
Colour temperature: 4000 K
Color Rendering Index CRI: 90-100
Adjustable color temperature: No.
Luminous flux can be set: No
Adjustable radiation angle: No.
Type of wiring: Finish
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Suitable for mounting on the panel: Yes
Suitable for panel mounting: No.
Suitable for wall mounting: No.
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: No.
Suitable for traverse installation: No.
Suitable for cable system: No.
With motion detector: No.
With light sensor: No.
With bulb: Yes
Suitable for the number of bulbs: 1
Black enclosure
Surface brushed: No.
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
Dimming DALI-2: No.
DALI dimming: Yes
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimmer function: No.
Reflector: High-gloss
Light distribution: Symmetric
Suitable for lamp output 14.5 W
Max. System power 14.5 W
Luminous flux: 1782 lm
Rated light current according to IEC 62722-2-1: 1782 lm
Operation via Bluetooth: No.
External diameter: 50 mm
Suitable for pedestal-/floor mounting: No.
Suitable for rail mounting: Yes
Suitable for clamp mounting: No.

Product type: LED track spotlight

Operating voltage: 230 V AC

No. of bulbs: 1

Bulb type: LED (monochrome)

Rating per bulb: 14.5 W

: 14.5 W

: 4000 K

Colour: White

: 1782 lm

Total luminous flux: 1782 lm

Light features: Dimmable

Protection class: II

Factory colour: Black

Material: Aluminium

: n.rel.

(Ø): 50 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3549288 Brumberg 88706184DA LED track spotlight 14.5 W LED (monochrome) Black

User & Safety Instructions

User & Safety Instructions 3549288 Brumberg 88706184DA LED track spotlight 14.5 W LED (monochrome) Black

Description

LED-rail emitter, rotary and swiveling, DALI dimmable, structural black, round. Design in a compact design for the harmonious implementation in an architectural space concept. Mounting type: Mounting, mounting location: Ceiling mounting, material: Aluminium / glass / plastic, protection class: On the room side: According to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 14.5 4,000 W, number of lights / sockets: 60 piece, light current: 1,782 lm, color temperature: White, angle of radiation: 1°, Adjustable: rotating and head adjustable, With operating device: Yes, type of dimming: DALI-2.

This text is machine translated.
