Name: Brumberg 88706185DA LED track spotlight 14.5 W LED (monochrome) Black
Brand: Brumberg
SKU: 3549800

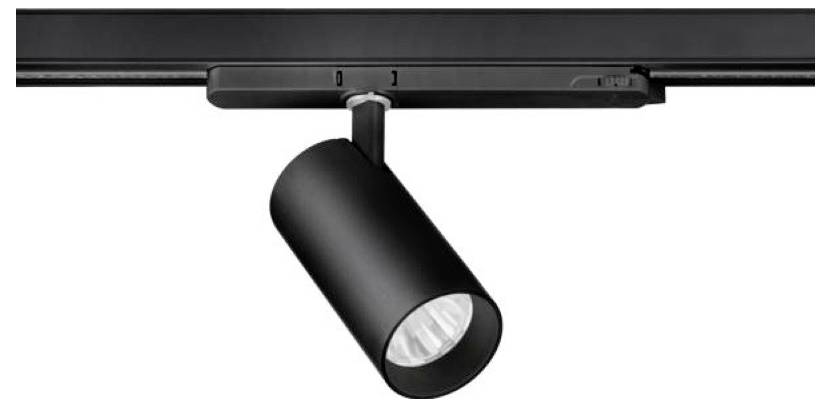

Black adjustable track light spotlight mounted on a ceiling track against a white background.

'Black track lighting fixture with cylindrical adjustable spotlight, mounted on a ceiling track.'

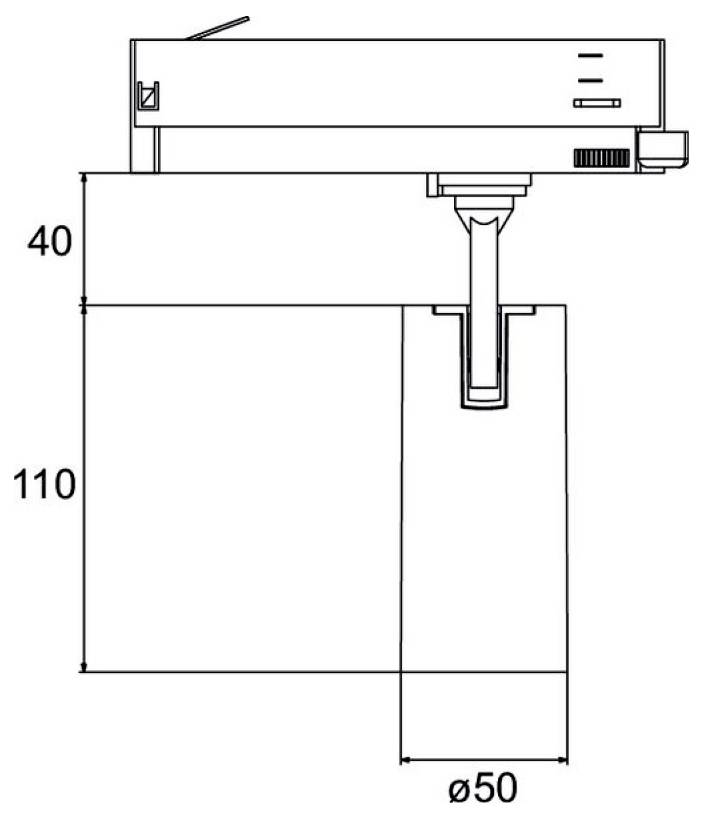

Technical drawing of a cylindrical component with a top-mounted housing; dimensions marked 40, 110, and diameter 50.

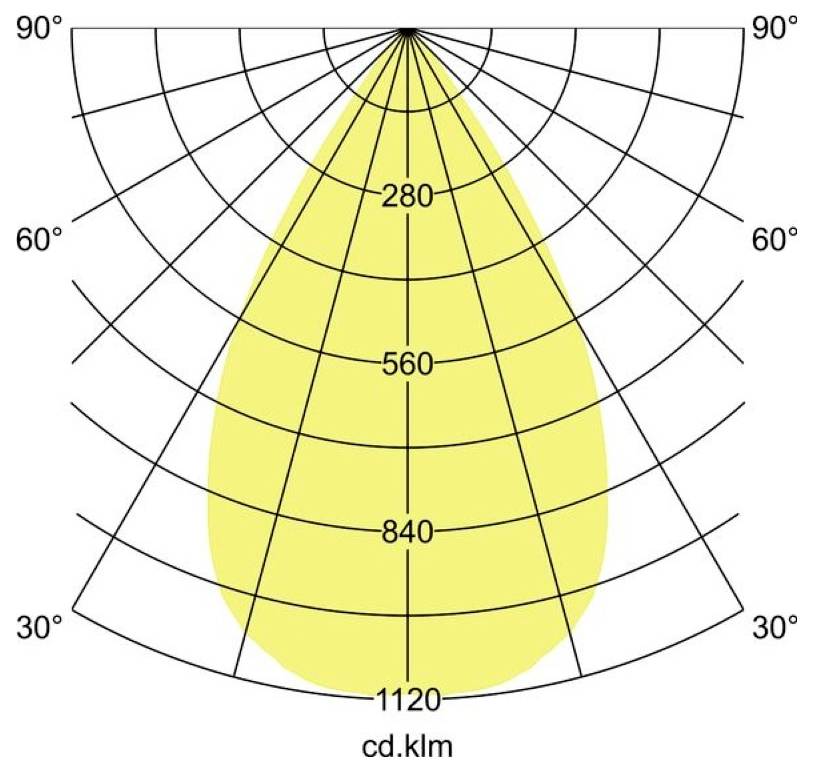

Polar light distribution chart with yellow beam pattern centered vertically, showing intensity rings labeled 280, 560, 840, and 1120 cd.klm.<br>

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Brumberg lights LED track spotlight 230V 3500K 88706185DA

Power= 14.5 W Total luminous flux= 1773 lm Colour temperature= 3500 K White

Technical specifications

Protection class (IP) IP20
Surface protection: Powder-coated
Protection class: II
Material of housing: Aluminium
Nominal voltage: 230 V
Voltage type AC
Bulb: LED not replaceable
Operating device: LED operating device current-controlled
Energy efficiency class of light source according to EU directive 2019/2015: Not required
Light color: White
Colour temperature: 3500 K
Color Rendering Index CRI: 90-100
Adjustable color temperature: No.
Luminous flux can be set: No
Adjustable radiation angle: No.
Type of wiring: Finish
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Suitable for mounting on the panel: Yes
Suitable for panel mounting: No.
Suitable for wall mounting: No.
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: No.
Suitable for traverse installation: No.
Suitable for cable system: No.
With motion detector: No.
With light sensor: No.
With bulb: Yes
Suitable for the number of bulbs: 1
Black enclosure
Surface brushed: No.
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
Dimming DALI-2: No.
DALI dimming: Yes
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimmer function: No.
Reflector: High-gloss
Light distribution: Symmetric
Suitable for lamp output 14.5 W
Max. System power 14.5 W
Luminous flux: 1773 lm
Rated light current according to IEC 62722-2-1: 1773 lm
Operation via Bluetooth: No.
External diameter: 50 mm
Suitable for pedestal-/floor mounting: No.
Suitable for rail mounting: Yes
Suitable for clamp mounting: No.

Product type: LED track spotlight

Operating voltage: 230 V

No. of bulbs: 1

Bulb type: LED (monochrome)

Rating per bulb: 14.5 W

: 14.5 W

: 3500 K

Colour: White

: 1773 lm

Total luminous flux: 1773 lm

Light features: Pivoted

Protection class: II

Factory colour: Black

Material: Aluminium

: n.rel.

(Ø): 50 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3549800 Brumberg 88706185DA LED track spotlight 14.5 W LED (monochrome) Black

User & Safety Instructions

User & Safety Instructions 3549800 Brumberg 88706185DA LED track spotlight 14.5 W LED (monochrome) Black

Description

LED-rail emitter, rotary and swiveling, DALI dimmable, structural black, round. Design in a compact design for the harmonious implementation in an architectural space concept. Mounting type: Mounting, mounting location: Ceiling mounting, material: Aluminium / glass / plastic, protection class: On the room side: According to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 14.5 3,500 W, number of lights / sockets: 60 piece, light current: 1,773 lm, color temperature: White, angle of radiation: 1°, Adjustable: rotating and head adjustable, With operating device: Yes, type of dimming: DALI-2.
