Brumberg 88724164DA LED track spotlight Built-in LED 24 W LED (monochrome) Silver
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Brumberg LED lights-rail emitter 230V 4000K 88724164DA
- Power= 24 W Total luminous flux= 3056 lm Colour temperature= 4000 K White
Technical specifications
- Protection class (IP) IP20
- Surface protection: Powder-coated
- Protection class: II
- Material of housing: Aluminium
- Nominal voltage: 230 V
- Voltage type AC
- Bulb: LED not replaceable
- Operating device: LED operating device current-controlled
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 90-100
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Type of wiring: Finish
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on the panel: Yes
- Suitable for panel mounting: No.
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: No.
- Suitable for traverse installation: No.
- Suitable for cable system: No.
- With motion detector: No.
- With light sensor: No.
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Housing color: Silver
- Surface brushed: No.
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: High-gloss

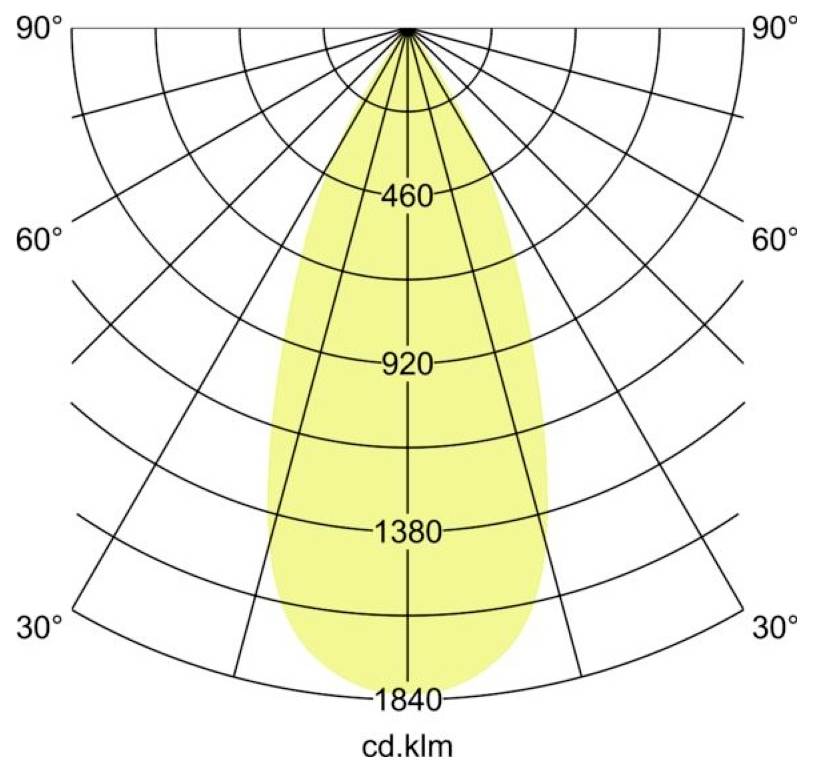

- Light distribution: Symmetric
- Suitable for lamp output 24 W
- Max. System power 24 W
- Luminous flux: 3056 lm
- Rated light current according to IEC 62722-2-1: 3056 lm
- Operation via Bluetooth: No.

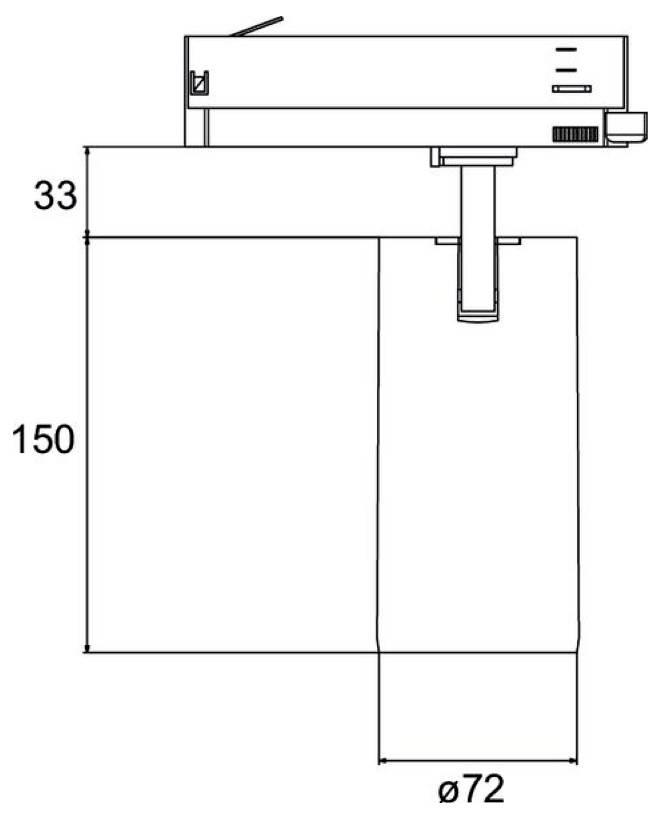

- Outer diameter: 70 mm
- Suitable for pedestal-/floor mounting: No.
- Suitable for rail mounting: Yes
- Suitable for clamp mounting: No.
- Product type
LED track spotlight
- Operating voltage
230 V
- No. of bulbs
1
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
24 W
24 W
4000 K
- Colour
White
3056 lm
- Total luminous flux
3056 lm
- Light features
Dimmable
- Protection class
II
- Factory colour
Silver
- Material
Aluminium
n.rel.
- (Ø)
70 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3550794 Brumberg 88724164DA LED track spotlight Built-in LED 24 W LED (monochrome) Silver
User & Safety Instructions
User & Safety Instructions 3550794 Brumberg 88724164DA LED track spotlight Built-in LED 24 W LED (monochrome) Silver
Description

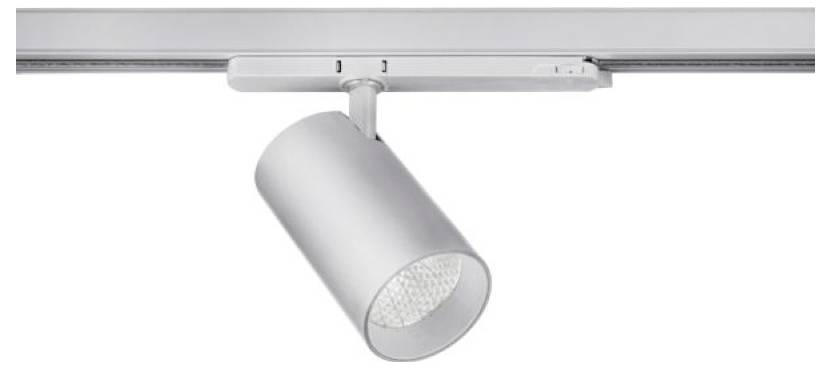

LED-rail emitter, rotary and swiveling, DALI dimmable, structural silver, round. Design in a compact design for the harmonious implementation in an architectural space concept. Mounting type: Mounting, mounting location: Ceiling mounting, material: Aluminium / glass / plastic, protection class: On the room side: According to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 24 4,000 W, number of lights / sockets: 40 piece, light current: 3,056 lm, color temperature: White, angle of radiation: 1°, Adjustable: rotating and head adjustable, With operating device: Yes, type of dimming: DALI-2.
