Name: Brumberg 88814173 88814173 LED ceiling light LED (monochrome) Bulb cannot be changed 9 W White
Brand: Brumberg
SKU: 3137265

Highlights & Details

Brumberg LED panel-mounted light 230V 40gr., 3000K 88814173

Power= 9 W
Total luminous flux= 1081 lm
Colour temperature= 3000 K
White

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for wall mounting: No.
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: Yes
Suitable for panel mounting: No.
Suitable for mounting on the panel: Yes
Suitable for light band configuration: No.
Suitable for the number of bulbs: 1
Material of housing: Aluminium
Housing color: White
Cover material: Transparent glass
Design of grid: Without
Voltage type AC
Nominal voltage: 230 V
Operating device: LED operating device current-controlled
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
Dimming DALI-2: No.
DALI dimming: No.
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Dimming depends on the operating device: No.
Without dimming function: Yes
Light distribution: Symmetric
Light emission: Direct
Protection class (IP) IP20
Protection class: I
Lamp with limited surface temperature "D-sign": No.
Suitable for emergency light: No.
Integrated emergency power supply: No.
With motion detector: No.
With light sensor: No.
With air vents: No.
Suitable for lamp output 9 W
Max. System power 9 W
Light output 120.11 lm/W
Rated light current according to IEC 62722-2-1: 1081 lm
Light color: White
Colour temperature: 3000 K
Color Rendering Index CRI: 90-100
Constant luminous flux regulation: No.
Height/depth 113 mm
External diameter: 50 mm
Type of wiring: Finish
Adjustable color temperature: No.
Luminous flux can be set: No
Adjustable radiation angle: No.
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Bulb: LED not replaceable
With bulb: Yes

Dim: (Ø x H) 50 mm x 113.00 mm

Type: Circular

Operating voltage: 230 V

No. of bulbs: 1

Product type: LED ceiling light

Width: 50 mm

Bulb type: LED (monochrome)

Height: 113.00 mm

: Bulb cannot be changed

Rating per bulb: 9 W

Depth: 113 mm

: 9 W

(Ø): 50 mm

Light features: Incl. ballast

Protection class: I

: IP20

Factory colour: White

Material: Aluminium

: n.rel.

Colour rendering index: 90-100

Colour: White

Light bulb included: Yes

: 3000 K

Colour temperature (max.): 3000 K

Colour temperature (min.): 3000 K

Colour temperature range: 3000 - 3000 K

Total luminous flux: 1081 lm

: 1081 lm

Rated luminous flux: 1081 lm

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3137265 Brumberg 88814173 88814173 LED ceiling light LED (monochrome) Bulb cannot be changed 9 W White

Description

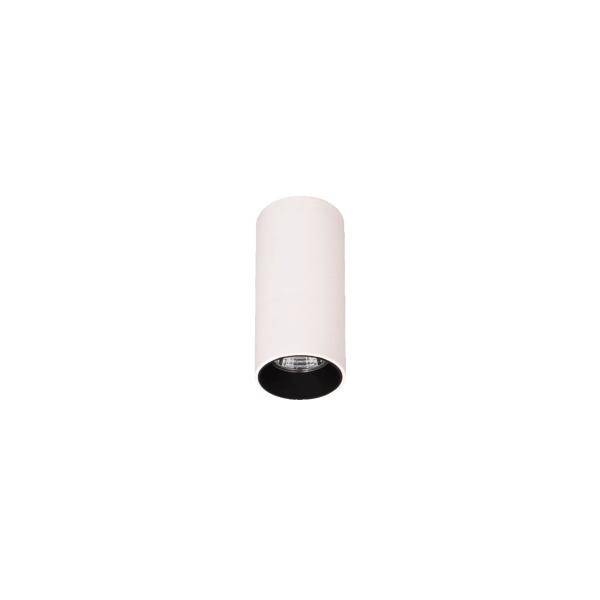

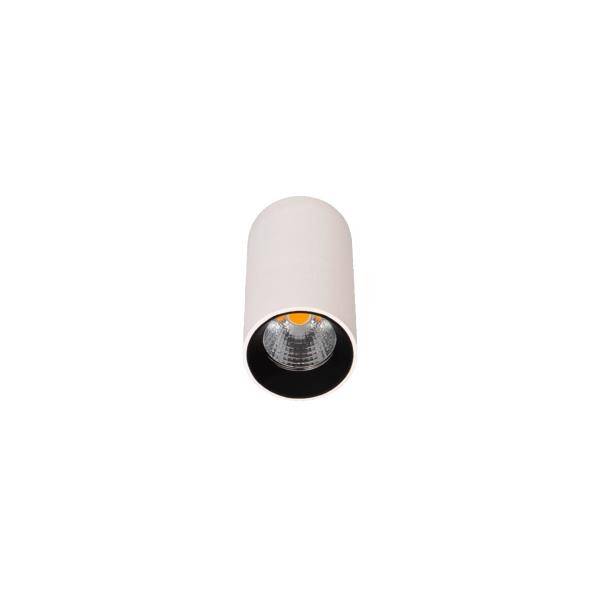

LED-ceiling-mounted downlight, switchable, structure white, round. Design in a compact design for the harmonious implementation in an architectural space concept. Design: Without socket, mounting type: Mounting mounting, mounting location: Ceiling mounting, material: Aluminium / glass / plastic, protection class: Space side: According to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 9 3,000 W, number of lights / sockets: 40 piece, light current: 1,080 lm, color temperature: White, angle of radiation: 1°, Adjustable: not adjustable, with operating device: yes, dimmable: no, type of dimming: switchable.

This text is machine translated.
