Name: Brumberg 88844184DA 88844184DA LED surface-mount light
Brand: Brumberg
SKU: 3545089

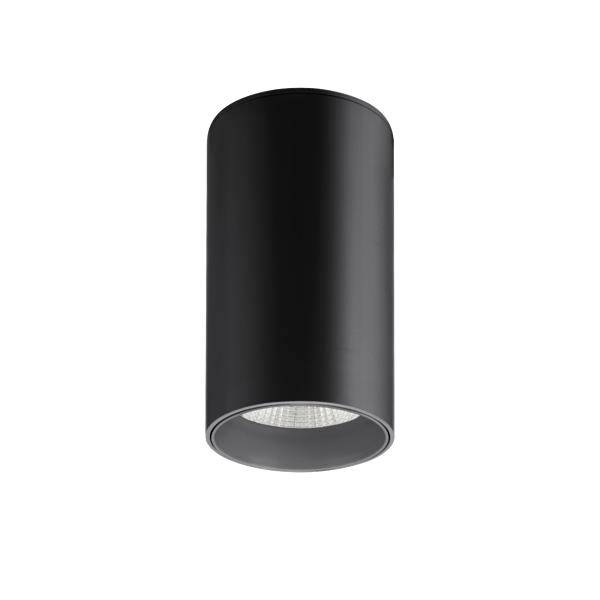

Black cylindrical ceiling-mounted spotlight on a white background, showing a recessed circular light opening at the bottom.<br>

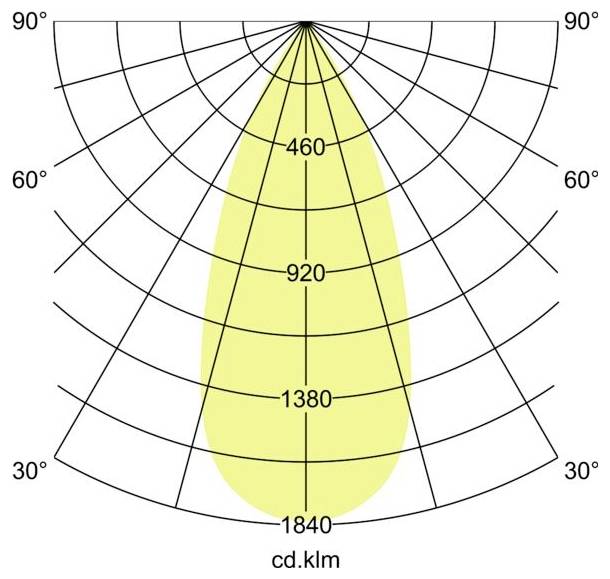

Polar light distribution chart showing a narrow forward beam, with intensity levels labeled 460, 920, 1380, and 1840 cd.klm.

Polar light distribution diagram showing a narrow, symmetric beam with intensity levels labeled 460, 920, 1380, and 1840 cd.klm.<br>

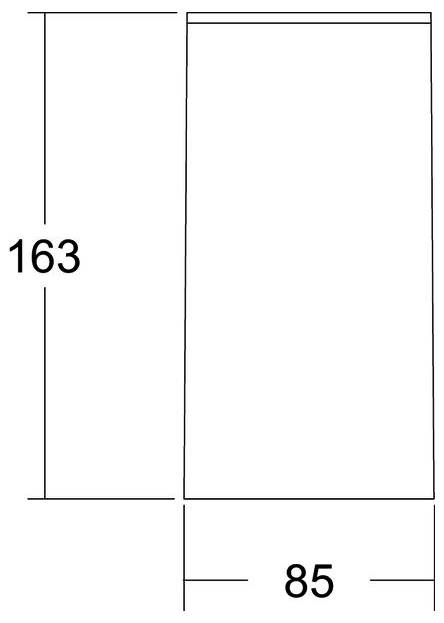

Simple dimension diagram of a tall rectangle measuring 163 high by 85 wide.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Brumberg LED panel-mounted light 230V 4000K 88844184DA

Technical specifications

Protection class (IP) IP20
Protection class: I
Material of housing: Aluminium
Nominal voltage: 230 V
Voltage type AC
Bulb: LED not replaceable
Operating device: LED operating device current-controlled
Energy efficiency class of light source according to EU directive 2019/2015: Not required
Light color: White
Colour temperature: 4000 K
Color Rendering Index CRI: 90-100
Adjustable color temperature: No.
Luminous flux can be set: No
Adjustable radiation angle: No.
Height/depth 163 mm
Type of wiring: Finish
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Suitable for mounting on the panel: Yes
Suitable for panel mounting: No.
Suitable for wall mounting: No.
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: No.
With motion detector: No.
With light sensor: No.
With bulb: Yes
Suitable for the number of bulbs: 1
Black enclosure
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
Dimming DALI-2: No.
DALI dimming: Yes
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimmer function: No.
Light distribution: Symmetric
Light emission: Direct
Suitable for lamp output 28 W
Max. System power 28 W
Rated light current according to IEC 62722-2-1: 3711 lm
Operation via Bluetooth: No.
Outer diameter: 85 mm
Suitable for light band configuration: No.
Surface protection housing: Powder-coated
Cover material: Transparent glass
Suitable for emergency light: No.
With air vents: No.
Compatible with Casambi: No.

Product type: LED surface-mount light

: n.rel.

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3545089 Brumberg 88844184DA 88844184DA LED surface-mount light

User & Safety Instructions

User & Safety Instructions 3545089 Brumberg 88844184DA 88844184DA LED surface-mount light

Description

LED Ceiling-mount downlight, DALI dimmable, structured black, round. Design in a compact design for the harmonious implementation in an architectural space concept. Design: Without socket, mounting type: Mounting mounting, mounting location: Ceiling mounting, material: Aluminium / glass / plastic, protection class: Space side: According to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 28 4,000 W, number of lights / sockets: 40 piece, light current: 3,711 lm, color temperature: White, angle of radiation: 1°, Adjustable: not adjustable, with operating device: yes, dimmable: yes, type of dimming: DALI.

This text is machine translated.
