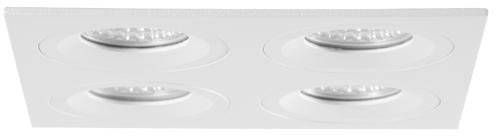

Brumberg Brumberg Leuchten 45030170 Recess bracket White
EAN:
Part number:
Item no:
Technical specifications
- Design: 4-fold
- Operating device: Electronic transformer
- Dimming depends on the operating device: Yes
- Phase section dimming: no.
- Suitable for panel mounting: Yes
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: no.
- With bulb: no.
- Dim
(L x W) 175 mm x 175 mm
- Product type
Recess bracket
- Factory colour
White
n.rel.
- Recess width
160 mm
- Recess length
165 mm
- Material
Aluminium
- Width
175 mm
- Length
175 mm
IP20
- Protection class
III
- No. of bulbs
4
- Type
Square
- Light features
Dimmable
Ceiling mount option
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2337473 Brumberg Brumberg Leuchten 45030170 Recess bracket White
Description
Installation unit for LED modules, structural white, square. Designed in a compact design for quick mounting without tools for ceiling installation. Design: Without socket, mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminum, protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) III, power: 4x LED, max. 14W, number of bulbs / sockets: 4.0 pcs, without operating device, type of dimming: Other.
