Brumberg Busbar Busbar Black 88488280

Black aluminum extrusion profile shown in cross-section, with a smooth outer panel and internal channels for mounting or sliding components.

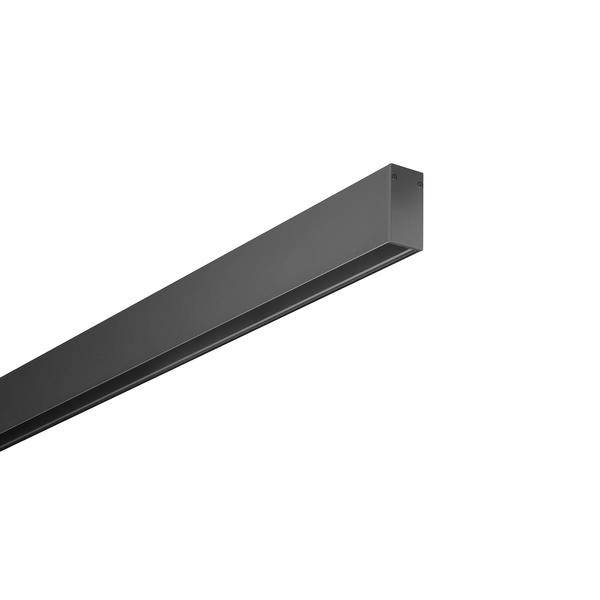

Black rectangular LED light fixture shown diagonally on a white background.

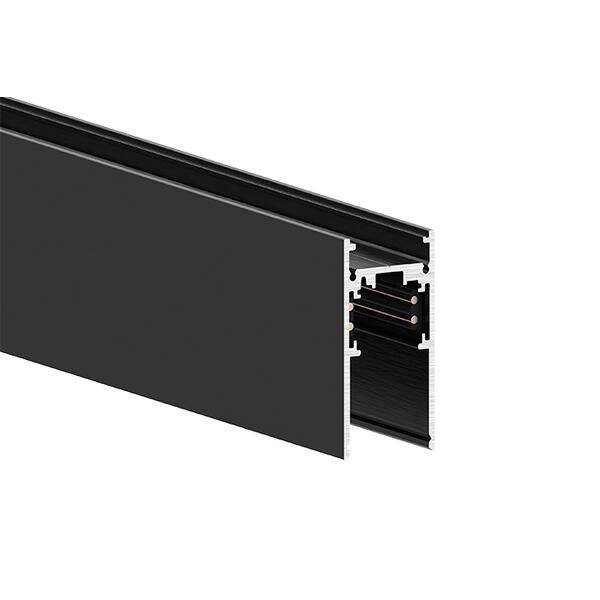

Black aluminum extruded linear LED channel profile shown in cross-section with a matte cover and internal mounting track.<br>

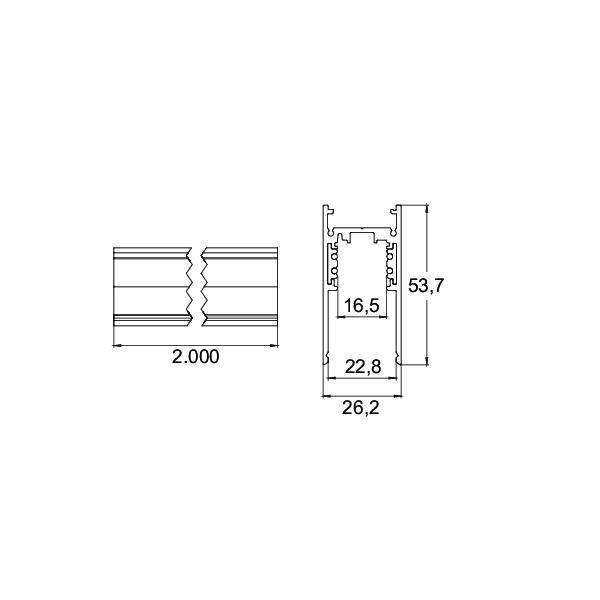

Technical drawing of a profile section and length detail, showing 2,000 mm length and cross-section dimensions 26.2, 53.7, 22.8, and 16.5 mm.
1/4
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Product type

Busbar

Component

Busbar

Operating voltage

48 V

60 V

Protection class

III

Factory colour

Black

Material

Aluminium

Dim

(L x W x H) 2000 x 26.2 x 53 mm

Width

26.2 mm

Height

53 mm

Length

2000 mm

Type

rectangular, matt

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3831815 Brumberg Busbar Busbar Black 88488280

Datasheet 3831815 Brumberg Busbar Busbar Black 88488280

User & Safety Instructions

User & Safety Instructions 3831815 Brumberg Busbar Busbar Black 88488280

Description

High 48 V busbar, length 2,000 mm, black, rectangular. Design in a compact design for the harmonious implementation in an architectural space concept. Mounting type: On-board mounting, mounting location: Ceiling/wall/pendant mounting, material: Aluminium, enclosure rating: Room side (DIN EN 60529) IP20, protection class: (DIN EN 61140) III, voltage: 48 V DC.
