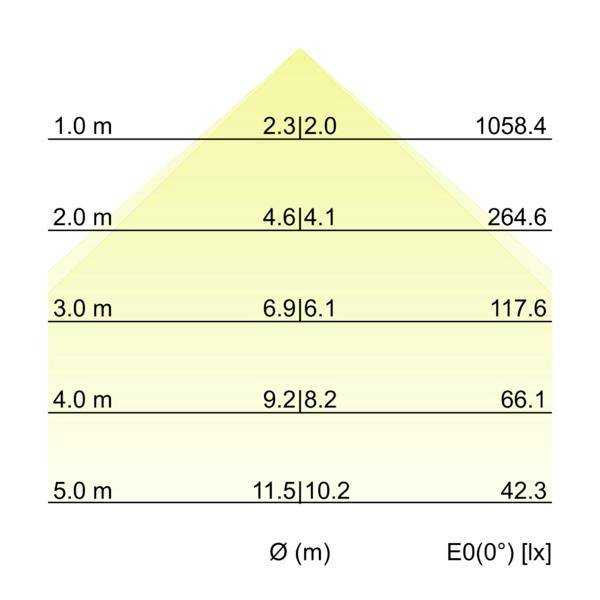

![Chart of illumination vs diameter and height: rows 1.0 m to 5.0 m with Ø (m) values 2.3, 4.6, 6.9, 9.2, 11.5 and E0(0°) [lx] values 1058.4, 264.6, 117.6, 66.1, 42.3.](https://asset.conrad.com/media10/isa/160267/c1/-/en/003831043PI02T1789393949/image.jpg?x=400&y=400&format=jpg&ex=400&ey=400&align=center)
1/5
Brumberg LED track spotlight w/o 20 W LED (monochrome) Silver
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Power= 20 W Total luminous flux= 2600 lm Colour temperature= 3000 K White
Technical specifications
- Product type
LED track spotlight
- Operating voltage
220 V AC
240 V AC
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
20 W
20 W
3000 K
- Colour
White
- Total luminous flux
2600 lm
- Light features
Ceiling mount option
Pivoted
Incl. ballast
Direct light emission
IK02
- Protection class
II
- Factory colour
Silver
- Material
Steel
n.rel.
- Width
64 mm
- Height
25 mm
- Length
294 mm
- Type
powder-coated
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3831043 Brumberg LED track spotlight w/o 20 W LED (monochrome) Silver
User & Safety Instructions
User & Safety Instructions 3831043 Brumberg LED track spotlight w/o 20 W LED (monochrome) Silver
Description
LED-rail beamer, rotatable, switchable, structural silver, rectangular. Rail mounting, ceiling mounting Design: LED, mounting type: Bus rail mounting, mounting location: Ceiling mounting, material: Steel / plastic, protection class: In accordance with DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 20 3,000 W, number of lights / sockets: 97 piece, light current: 2,600 lm, color temperature: White, light angle longitudinal: 1°, color: Angle of radiation cross: 91°, adjustability: rotation, with operating device: yes, dimmable: no, type of dimming: switchable.
