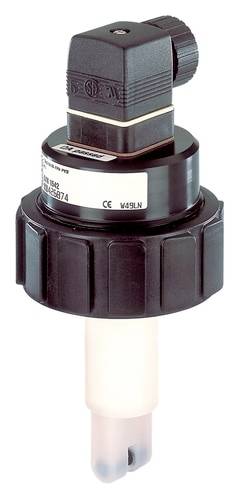

Image similar
Bürkert Conductance sensor 8220 426874 1 pc(s)
Product type
Conductance sensor
Type
8220
Connector
Plug
Sealant
FKM
Cable length
10 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Sealing material - parts in contact with medium Sealing material: FKM (fluororubber)
- Sealing material - Sensor/housing material: FKM (fluororubber)
- Pressure & temperature - nominal pressure (DIN EN 1333): PN 10
- Pressure & Temperature - Temperature Medium min 0 °C.
- Pressure & Temperature - Temperature Medium max. 100 °C.
- Pressure & temperature - ambient temperature min: 0 °C.
- Pressure & temperature - temperature Surroundings max. 60 °C
- Electrical connection - Electrical connection 1 Type: Connector picture Form A according to DIN EN 175301-803
- Electrical connection - Electrical connection 1 Number: 1 pieces
- Electrical connection - Electrical connection 1 Number of contacts: 4 pieces
- Electrical connection - Electrical connection 1 Material Category: Plastics
- Electrical connection - Electrical connection 1 Material: PA (Polyamide)
- Electrical connection - Electrical connection 1 type: Terminal strip
- Electrical connection - Device plug in the range of supply: Enclosed
- Electrical connection - Device socket Art. No. - Type: 00572264 - 2518
- Electronics - Fitting Electronic Interface: Insertion 2 (Zoll)
- Fitting type: Outer thread
- Fitting fittings connection thread type: G
- Fittings - fittings Connection thread: 2
- Functions - Local parameterization: No.
- Functions - Parameterization disconnected: No.
- Functions - Fixed parameterization: No.
- Functions - Temperature compensation: No.
- Functions - cell constant: 1 1/cm
- Functions - neutrino version: No.
- Device Properties - Product Subgroup: Analysis
- Device properties - device design: Compact
- Measured values - unit of measurement value: µS/cm
- Measured values - temperature: Yes
- Measured values - PH: No.
- Measured values - conductive: Yes
- Measured values - inductive conductivity: No.
- Measurements - ORP: No.
- Measured values - total chlorine: No.
- Measured values - chlorine free: No.
- Measurements - Chlorine dioxide: No.
- Measured values - oxygen: No.
- Measurements - Ozone: No.
- Measurements - Turbidity: No.
- Measured values - Measuring accuracy 1: 3
- Measured values - measuring accuracy temperature (°C): -1°C.
- Measured values - measured value min.: 5
- Measured values - measured value max.: 10,000
- Protection class - protection class of measuring device (IP): IP65
- Sensor - number of electrodes: 2 pcs
- Sensor - electrode Material: Technical ceramics
- Sensor - Sensor fitting Material Category: Plastics
- Sensor - Sensor fitting Material: PVDF (Polyvinylidene fluoride)
- Sensor - Insertion Sensor Length: Short
- Software / communication - display type: No display
- Software / communication - output signal: Raw signal for connection to the multiCELL transmitter/controller Type8619
- Materials - Electronics housing Material Category: Plastics
- Materials - electronics housing material: PEHD
- Materials - Nut Material: PC (Polycarbonate)
- Materials - Electronic casing Cast: Resin
- Product type
Conductance sensor
- Type
8220
- Connector
Plug
- Sealant
FKM
- Cable length
10 m
- Media temperature (min.)
0 °C
- Max. media temperature
100 °C
- Max. operating pressure
10 bar
IP65
- Min. ambient temperature
0 °C
- Max. ambient temperature
60 °C
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3047622 Bürkert Conductance sensor 8220 426874 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047622 Bürkert Conductance sensor 8220 426874 1 pc(s)
Description
The conductivity sensor is a compact design with integrated conductivity electrodes with different electrode types. Four different conductivity sensors with different cell constants cover a wide measuring range. A Pt1000 for automatic temperature compensation is integrated in the sensor unit by default.
This sensor supplies a raw signal and is supplied with a standard connector in accordance with EN 175301‑803.
The sensor must be connected to the Bürkert type 8619 multiCELL. A 4 x 1.5 mm² shielded cable is provided for connection (cable length: Max. 10 m).
The conductivity sensor is installed in an insertion fitting type S020, which is available in a wide range of materials (details are included in the data sheet of the S020). An extended version as well as a immersion fitting are available for use in tanks and containers.
This text is machine translated.
This sensor supplies a raw signal and is supplied with a standard connector in accordance with EN 175301‑803.
The sensor must be connected to the Bürkert type 8619 multiCELL. A 4 x 1.5 mm² shielded cable is provided for connection (cable length: Max. 10 m).
The conductivity sensor is installed in an insertion fitting type S020, which is available in a wide range of materials (details are included in the data sheet of the S020). An extended version as well as a immersion fitting are available for use in tanks and containers.
