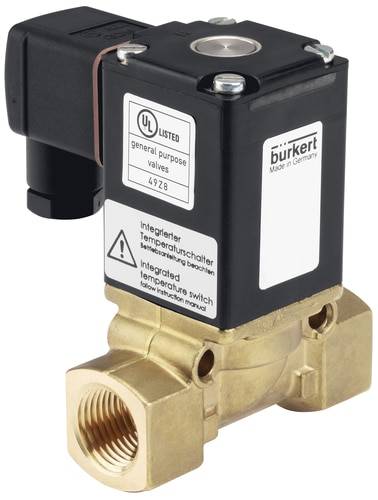

Bürkert Directly actuated valve 85295 0290 24 V DC G 1 1/2 sleeve Nominal width (details) 40.0 mm Positively controlled
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
2/2-way solenoid valve for gases and liquids
- From 0 bar differential pressure switch
- Vacuum suitable
- Reliable
- Robust
Technical specifications
- Cable connection G11/2"
- Nominal diameter 40.0mm
- Kv-Wert 16.0 m³/h
- Pressure range 0 - 12 bar
- Voltage 024 V/UC/DC
- Medium temperature -10 to +80 °C
- Ambient temperature +55 °C max.
- Opening time 300 - 1000 ms
- Closing time 700 - 4000 ms
- Electrical Power consumption 100 W (braking) 9 Watt (operation)
- Product type
Directly actuated valve
- Operating voltage
24 V DC
- Max. operating pressure
12 bar
- Enclosure material
Brass
- Connection
G 1 1/2 sleeve
- Operating temperature
-10 °C (min)
- Media temperature (range)
-10 up to +80 °C
- Manufacturer part #
85295
- Operating pressure (min.)
0 bar
- Min. operating temperature
-10 °C
- Sealant
NBR
- Function
2/2-way
- Weight
3.000 kg
- Max. media temperature
+80 °C
- Media temperature (min.)
-10 °C
- Medium
Inert substances
- Nominal width
40.0 mm
- Features
Sleeve
- Width
85 mm
- Height
154 mm
- Length
126 mm
- QNn value
17300 l/min
IP65
- Max. ambient temperature
+55 °C
- Min. ambient temperature
0 °C
- Operating principle
Positively controlled
- KV value
266.67 l/min
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 623731 Bürkert Directly actuated valve 85295 0290 24 V DC G 1 1/2 sleeve Nominal width (details) 40.0 mm Positively controlled
User & Safety Instructions
User & Safety Instructions 623731 Bürkert Directly actuated valve 85295 0290 24 V DC G 1 1/2 sleeve Nominal width (details) 40.0 mm Positively controlled
Description
This sturdy continuity valve with servo diaphragm and hard coupled forced increase is closed without current. It is perfectly suitable for vacuum or closed circuits, for neutral gases and liquids.
This text is machine translated.
This text is machine translated.
Features
- Forced coupled continuity valve
- Closed without current
- Housing Brass material
- Sealing Material NBR
- Coil Material Epoxy (Class H)
- Voltage tolerance: ± 10%
- Nominal operating mode: continuous operation 100% duty cycle
- Electrical connection to DIN EN 175301-803 shape A (DIN 43650)
- IP65 degree of protection with device socket
- Any installation position, preferably drive upwards
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
