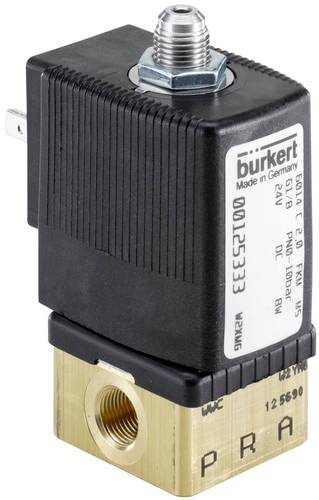

Image similar
Bürkert Magnetic valve 20043155 6014 230 V Nominal width (details) 2 mm 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
3/2-way solenoid valve, direct action
- Direct-acting and compact valve up to nominal width DN 2.5
- Vibration-resistant, screwed coil system
- Banjo fittings for direct mounting on pneumatic valves
- Explosion-proof versions
- Energy-saving kick and drop designs available
Technical specifications
- Coil (Kern) - spool size 32 mm
- Material: PPS (polyphenylene sulfide)
- Seal material:FKM
- Nominal width 2 mm
- Lead wire connection: Banjo design hollow screw P-G1/8 x A-G1/4
- Special feature: Manual operation, PA button with locking, screw slot
- Voltage 230 volt
- Frequency: 50 Hz
- Medium temperature (degree C) (max): 100
- Ambient temperature (degree C) (max): 55
- Ambient temperature (degree C) (min): -10
- Pressure (bar) (max): 10
- Medium temperature (degree C) (min): -10
- 3/2-way; at rest output A de-energized
- Power consumption 8 watt
- Duty cycle (%): 100
- Opening time (msec) (max): 15
- Closing time (ms) (max): 20
- KV VALUE (M*3/H): 0.086
- Opening time (ms) (min): 10
- Closing time (ms) (min): 15
- Pressure (max) at gas: 10
- Product type
Magnetic valve
- Operating voltage
230 V
- Max. operating pressure
10 bar
- Operating temperature
-10 °C (min)
- Media temperature (range)
-10 up to 100 °C
- Manufacturer part #
20043155
- Min. operating temperature
-10 °C
- Sealant
FKM
- Function
3/2-way
- Max. media temperature
100 °C
- Media temperature (min.)
-10 °C
- Nominal width
2 mm
- Features
P port connector (G1/8)
- Max. ambient temperature
55 °C
- Min. ambient temperature
-10 °C
- KV value
0.086 m³/h
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3048044 Bürkert Magnetic valve 20043155 6014 230 V Nominal width (details) 2 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3048044 Bürkert Magnetic valve 20043155 6014 230 V Nominal width (details) 2 mm 1 pc(s)
Description
Valve 6014 is a direct-acting hitch valve. Plug and core guide pipe are welded to increase pressure and leakage protection. Depending on the application, different sealing material combinations are available. A Bürkert-specific flange design (SFB) allows the space-saving assembly of valves on a multi-connection plate. Kick and drop coils are available to reduce electrical power consumption during operation.
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
