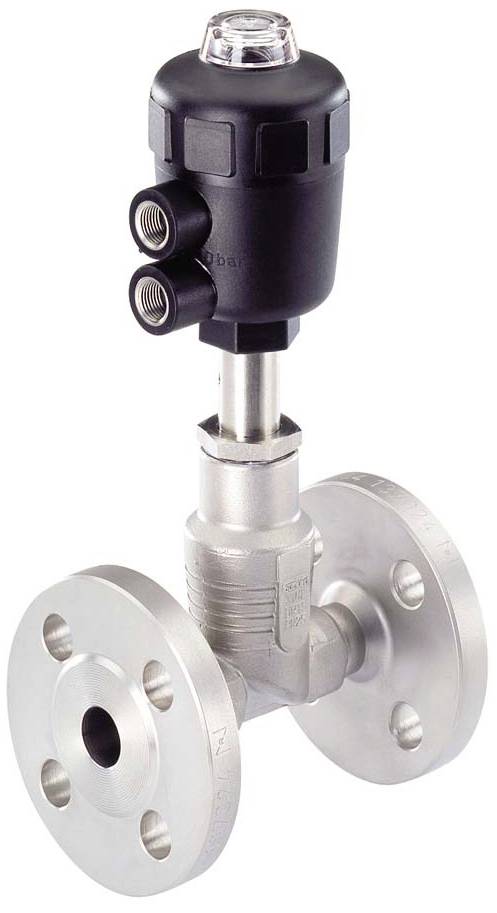

Image similar
Bürkert Pneumatic valve 2012 344183 12 bar (max) 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Drive - Drive design: PA drive, VA threaded bush on control air connection
- Drive - drive size: DM 125 mm
- Mode of action - control function: Closed with spring force
- Material: Stainless steel
- Seal material PTFE
- Nominal width 65 mm
- Wire connection: Flange end according to DIN EN 1092-1 for DN65 (PN25) (old DIN 2634)
- Medium temperature (degree C) (max): 185
- Ambient temperature (degree C) (max): 60
- Ambient temperature (degree C) (min): -10
- Pressure (bar) (max): 12
- Medium temperature (degree C) (min): -10
- Ways/positions: 2 ways / 2 positions
- Arm/drive interface: Nipple thread M84 x 2 (standard DN 65)
- Control air connection: Thread G1/4, socket
- Control pressure (min): 5.7
- Control pressure (max): 7
- KV VALUE (M*3/H): 73
- Product type
Pneumatic valve
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
344183
- Dim
(Ø) 125 mm
- Max. operating pressure
12 bar
- Pressure range
12 bar (max)
- (Ø)
125 mm
- Pipe Ø
65 mm
- Control pressure (max.)
7 bar
- Control pressure (min.)
5.7 bar
- Type
2012
- Max. ambient temperature
60 °C
- Min. ambient temperature
-10 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3047470 Bürkert Pneumatic valve 2012 344183 12 bar (max) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047470 Bürkert Pneumatic valve 2012 344183 12 bar (max) 1 pc(s)
Description
The externally controlled straight-seat valve consists of a pneumatically actuated piston drive and a 2/2-way straight-seat valve housing. The drive is made from PA or PPS for special operating conditions. The reliable, self-adjusting gland ensures high tightness. These maintenance-free and robust valves can be retrofitted with a comprehensive range of accessories for position indication, lift limitation or manual operation.
