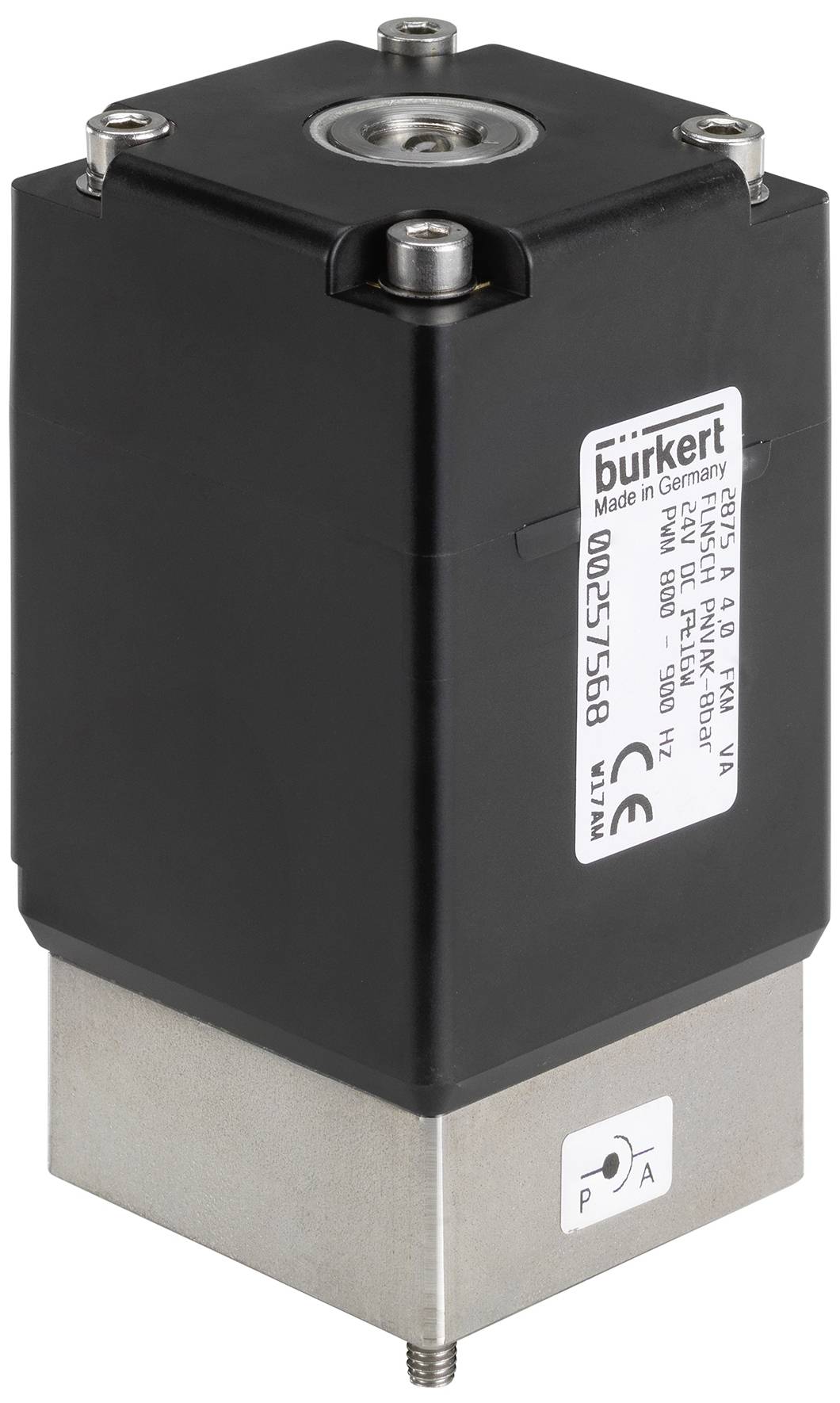

Bürkert Proportional pressure regulator 299840 2875 Flange Nominal width (details) 2 mm Enclosure material Stainless ste
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
2/2-way proportional valve
- Excellent setting range
- Very good response
- Compact adjusting valve design
- Nominal diameters DN 2...9.5 mm
- Optional: Explosion-protected coil
Technical specifications
- Sealing Material - Seat Seal Material Category: Elastomers
- Sealing material - Seat sealing Material: EPDM (Ethylene-Propylene-Diene-Rubber)
- Sealing material - external sealing Material: EPDM (Ethylene-Propylene-Diene-Rubber)
- Pressure & Temperature - Temperature Medium min -30 °C.
- Pressure & Temperature - Temperature Medium max. 90 °C.
- Pressure & temperature - ambient temperature min: -30 °C.
- Pressure & temperature - temperature Surroundings max. 40 °C
- Pressure & temperature - nominal pressure at least -1 bar
- Pressure & temperature - nominal pressure max. 20 bar
- Pressure & Temperature - pressure difference max. 20 bar
- Electrical connection - Device socket in the range of supply: Not included
- Electrical connection - Electrical connection Type: Line cable
- Electrical connection - Electrical connection Position: In flow direction left
- Electrical connection - Electrical connection Line length: 3,000 mm
- Electrical connection - Electrical connection Number of contacts: 2 + protective conductor
- Electrical connection - Electrical connection type: Male
- Equipment characteristics - main valve operating principle: Seat valve
- Device properties - rated mode/duty cycle: 100%
- Equipment properties - Flow: Under seat
- Device properties - Vacuum version: No.
- Device Properties - Oxygen Type: No.
- Device features - Drive type: Lifting anchor
- Device properties - operation: Direct action
- Device Properties - Media Separation: No.
- Device features - switching function: Continuous
- Device Properties - Analysis Execution: No.
- Device Properties - Steam Type: No.
- Equipment characteristics - core management: Shaped spring
- Device properties - Mounting (flange) Type: Metric screws
- Equipment properties - Mounting (flange) Material: Stainless steel
- Features - PWM frequency min.: 400 Hz
- Device features - PWM frequency max. 500 Hz
- Device properties - setting range: 1:100
- Equipment characteristics - core management 2: Bushings
- Medium & Calibration - installation position: Arbitrary
- Medium & Calibration - suitable for liquid media: Yes
- Medium & calibration - suitable for gaseous media: Yes
- Nominal width (kV value) - QNn value (gas): 129 l/min.
- Nominal width (kV value) - main valve nominal width 1 (P) (mm): 2 mm
- Nominal width (kV value) - kV Water value: 0.12 m3/h.
- Nominal width (kV value) - Main valve nominal width 1 (inch): 5/64 inch
- Process/cable connection - cable connection 1 type: Flange
- Process/cable connection - cable connection 2 type: Flange
- Process/cable connection - cable connection 1 Flange: Bürkert-Flanch 45 x 45 Design A1Bürkert-Flanch 45 x 45 Design A1
- Process/cable connection - cable connection 2 Flange: Bürkert-Flanch 45 x 45 Design A1Bürkert-Flanch 45 x 45 Design A1
- Protection class IP rating (max. for suitable connection) IP65
- Voltage - voltage min. / nominal voltage: 24 V
- Voltage - voltage max. / nominal voltage 24 V
- Voltage - AC voltage: Yes
- Voltage - DC voltage: Yes
- Voltage - voltage tolerance positive: 10%
- Voltage - voltage tolerance negative: 10%
- Coil (Kern) - spool size 49 mm
- Coil (Kern) - coil type: Block screwed
- Coil (Kern) - Material coil (envelope): EP (epoxy resin)
- Coil (Kern) - Thermal insulation class of the drive: H
- Coil (Kern) - part Kern in contact with medium Material: Stainless steel
- Coil (Kern) - part that is in contact with the medium Plug material: Stainless steel
- Coil (Kern) - Part in contact with medium Core guide tube Material: Stainless steel
- Coil (Kern) - Part in contact with medium Core guide element 1 Material: Stainless steel
- Coil (Kern) - Part in contact with medium Core guide element 2 Material: PEEK (polyether ether ketone)
- Coil (Kern) - part in contact with medium Distance sleeve Material: Stainless steel
- Coil (Kern) - part in contact with medium press-in seat Material: Stainless steel
- Materials - main valve material in contact with medium: Stainless steel
- Operating principle - fluid line connection Number: 2
- Operation - Valve function Number of switching positions: 2
- Operation - Valve function: A - closed at rest - pressure connection 1 (P/NC)A - closed at rest - pressure connection 1 (P/NC)
- Approvals - nominal power 15 W
- Approval type IECExIECEx
- Type of approval: II 2 G Ex MB IIC T4 GB, Ex MB IIC T4 GB
- Voltage frequency 50 Hz
- Product type
Proportional pressure regulator
- Operating voltage
24 V
- Enclosure material
Stainless steel
- Connection
Flange
- Max. operating pressure
20 bar
- Operating temperature
-30 °C (min)
- Min. operating temperature
-30 °C
- Current consumption
15 W
- Manufacturer part #
299840
- Operating pressure (min.)
-1 bar
- Sealant
EPDM
- Function
2/2-way
- Media temperature (range)
-30 up to 90 °C
- Max. media temperature
90 °C
- Media temperature (min.)
-30 °C
- Medium
Gases
- Nominal width
2 mm
- Features
Flange
- QNn value
129 l/min
IP65
- Max. ambient temperature
40 °C
- Min. ambient temperature
-30 °C
- Operating principle
Direct action
- KV value
0.12 m³/h
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3047040 Bürkert Proportional pressure regulator 299840 2875 Flange Nominal width (details) 2 mm Enclosure material Stainless ste
User & Safety Instructions
User & Safety Instructions 3047040 Bürkert Proportional pressure regulator 299840 2875 Flange Nominal width (details) 2 mm Enclosure material Stainless ste
Description
The direct-acting proportional valve type 2875 can be used as actuator for process control. Due to a more elastic seat seal, the valve is sealed in the range of the nominal pressure related to the nominal diameter (integrated shut-off function). The actuator anchor of the valve is mounted in a friction-less manner, WAS leads to an extraordinary actuating behavior. This valve is particularly suitable for demanding control tasks (high setting range, dry gases, etc.).
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
