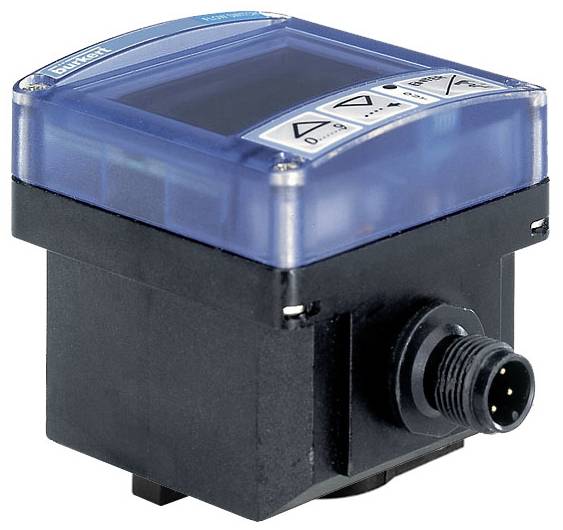

Image similar
Bürkert SE32 560403 1 pc(s)
Type
SE32
Connector
M12
Media temperature (min.)
0 °C
Max. media temperature
100 °C
IP rating
IP65
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Sealing material - Seal housing/cover material: Silicone
- Pressure & Temperature - Temperature Medium min 0 °C.
- Pressure & Temperature - Temperature Medium max. 100 °C.
- Pressure & temperature - ambient temperature min: 0 °C.
- Pressure & temperature - temperature Surroundings max. 60 °C
- Input / Output Analog Number: 1
- In/outputs - output 1 type analogue Current 4-20 mA
- Inputs/outputs - Output analog current Effect Source: Yes
- Inputs/outputs - Output analog current Effect Lower: Yes
- Electrical connection - Electrical connection 1 Type: Plug - M12
- Electrical connection - Electrical connection 1 Number: 1 pieces
- Electrical connection - Electrical connection 1 Number of contacts: 5 pieces
- Electrical connection - Electrical connection 1 Material Category: Light metals
- Electrical connection - Electrical connection 1 Material: Die-cast zinc, nickel-plated
- Electrical Connection - Operational Supply Type: 4 conductors
- Electrical connection - Electrical connection 1 type: Male
- Electrical connection - seal Electrical connection 1 Material: Neoprene
- Electronics - Fittings Electronics Interface: inLine
- Functions - continuous measurement: Yes
- Functions - Dosage: No.
- Functions - Switch: No.
- Functions - Local parameterization: Yes
- Functions - Parameterization disconnected: No.
- Functions - Fixed parameterization: No.
- Functions - Time Dosage: No.
- Functions - Batch Dosing: No.
- Functions - Advanced Diagnostics: No.
- Functions - Quantity Counter: No.
- Device Properties - Product Sub-Group: Flow
- Device properties - device design: Compact
- Label - front film material Category: Plastics
- Label - front film material: Polyester
- Measured values - flow (volume): Yes
- Measured Values - Flow (Ground): No.
- Measured values - temperature: No.
- Measured values - Density: No.
- Measured values - concentration 1: No.
- Measured Values - Accuracy Volume flow in relation to measured value: 1%
- Protection class - protection class of measuring device (IP): IP65
- Sensor type: Impeller/oval wheel
- Sensor - impeller type: Magnetic
- Sensor - Detection of flow direction: No.
- Sensor – impeller measurement principle Detection: Hall
- Software / communication - display type: Display
- Voltage - DC voltage min.: 12 V
- Voltage - DC voltage max. 36 V.
- Voltage - battery voltage: No.
- Materials - Electronics housing Material Category: Plastics
- Materials - electronics housing Material: PC (polycarbonate)
- Materials - screws Material: Stainless steel
- Materials - Cover Material: PC (Polycarbonate)
- Type
SE32
- Connector
M12
- Media temperature (min.)
0 °C
- Max. media temperature
100 °C
IP65
- Content
1 pc(s)
- UKCA
yes
