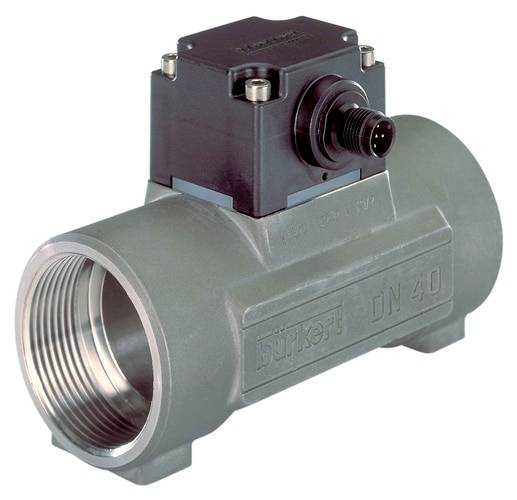

Image similar
Bürkert Vane flow meter 8012 556927 1 pc(s)
Product type
Vane flow meter
Type
8012
Outputs
Current (analogue)
Material
Brass
Sealant
FKM
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Material: Brass
- Seal material:FKM
- Line connection G 1 1/2 sleeve
- Special feature: Special Parameter display
- Voltage 12-36 volt
- Frequency: Direct current
- Sensor: Signal recording by Hall sensor
- Measuring range: Fixed set
- Function sensor: Measurement, current modulation
- Design: Housing with M12 x 1 plug
- Output: Current signal 4-20mA and transistor
- Missing attributes: Output 4-20 mA à 0-30m3/h.
- Medium temperature (degree C) (max): 100
- Ambient temperature (degree C) (max): 60
- Ambient temperature (degree C) (min): -15
- Pressure (bar) (max): 16
- Medium temperature (degree C) (min): -15
- Product type
Vane flow meter
- Type
8012
- Outputs
Current (analogue)
- Material
Brass
- Sealant
FKM
- Enclosure material
Brass
- Media temperature (min.)
-15 °C
- Max. media temperature
100 °C
- Max. operating pressure
16 bar
- Min. ambient temperature
-15 °C
- Max. ambient temperature
60 °C
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3047921 Bürkert Vane flow meter 8012 556927 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047921 Bürkert Vane flow meter 8012 556927 1 pc(s)
Description
The flow meter with impeller is available in magnetic or optical versions.
In the magnetic version, the measuring instrument is particularly designed for use in neutral and slightly aggressive, low-solid liquids. The optical version is intended exclusively for use with infrared-permeable liquids.
Type 8012 consists of a fitting (type S012) and an electronic module (type SE12) connected to screws. The fitting system designed by Bürkert ensures easy installation in all DN 06…DN 65 piping. Type 8012 can also be integrated into customer-specific block systems.
Depending on the version of the electronic module, type 8012 is available
- A pulse output or
- A pulse output and a 4…20 mA current output signal.
The pulse output, which can be transmitted and processed by a separate Bürkert transmitter/controller, generates a configurable frequency proportional to the flow rate or can be used as a switching output.
This text is machine translated.
In the magnetic version, the measuring instrument is particularly designed for use in neutral and slightly aggressive, low-solid liquids. The optical version is intended exclusively for use with infrared-permeable liquids.
Type 8012 consists of a fitting (type S012) and an electronic module (type SE12) connected to screws. The fitting system designed by Bürkert ensures easy installation in all DN 06…DN 65 piping. Type 8012 can also be integrated into customer-specific block systems.
Depending on the version of the electronic module, type 8012 is available
- A pulse output or
- A pulse output and a 4…20 mA current output signal.
The pulse output, which can be transmitted and processed by a separate Bürkert transmitter/controller, generates a configurable frequency proportional to the flow rate or can be used as a switching output.
This text is machine translated.
