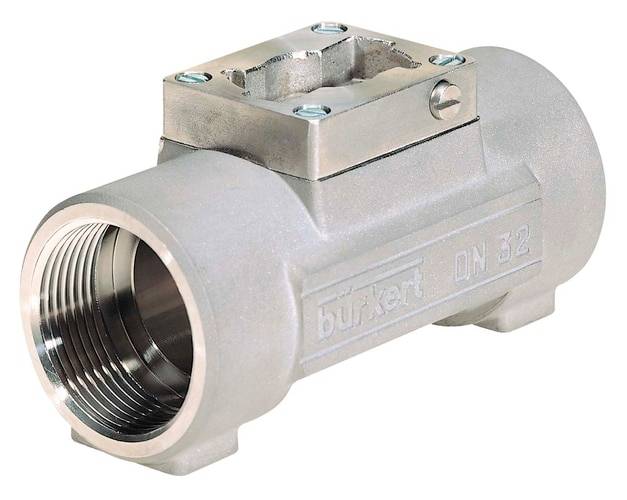

Image similar
Bürkert Vane flow meter S030 423984 1 pc(s)
Product type
Vane flow meter
Packaging type
Piece
Type
S030
Material
PVDF
Sealant
FKM
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Sealing material - parts in contact with medium Sealing material: FKM (fluororubber)
- Pressure & temperature - nominal pressure (DIN EN 1333): PN 16
- Pressure & Temperature - Temperature Medium min -15 °C.
- Pressure & Temperature - Temperature Medium max. 100 °C.
- Electronics - Fittings Electronics Interface: inLine
- Device Properties - Product Subgroup: Fitting
- Equipment characteristics - installation length 129 mm
- Medium & Calibration - Dynamic Viscosity min: 0 cp
- Medium & Calibration - Dynamic Viscosity max. 300 cp
- Measured values - measured value of volume flow min: 1,357
- Measured values - measured value of volume flow max.: 45,239
- Measured values - unit of measurement value: L/h
- Nominal diameter (kV value) - nominal diameter of measuring tube (DN): 40 mm
- Process/line connection – line connection 1 type: Internal thread
- Process/line connection - line connection material Category: Metals
- Process/cable connection - cable connection material: Brass
- Process/cable connection - cable connection 1 Thread name: 1 1/2
- Process/cable connection - cable connection 1 Thread type: G.
- Sensor type: Impeller
- Sensor - impeller Material: PVDF (polyvinylidene fluoride)
- Sensor - impeller type: Magnetic
- Sensor - impeller Axle material: Ceramic
- Sensor - Storage Material Category: Technical ceramics
- Sensor - bearing material: Ceramic
- Materials - fitting material: Brass
- Materials - measuring tube material: Brass
- Operating principle - fluid line connection Number: 2
- Packaging type
Piece
- Product type
Vane flow meter
- Type
S030
- Material
PVDF
- Sealant
FKM
- Enclosure material
Brass
- Nominal diameter
40 mm
- Media temperature (min.)
-15 °C
- Max. media temperature
100 °C
- Max. operating pressure
16 bar
- Weight
1370 g
- Length
129 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3047258 Bürkert Vane flow meter S030 423984 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047258 Bürkert Vane flow meter S030 423984 1 pc(s)
Description
The type S030 sensor fitting has an integrated impeller for measuring the flow rate and is specially designed for operation with neutral, slightly aggressive, solid-free liquids.
The compact sensor fitting (S030) must be equipped with a Bürkert transmitter (type SE30, SE30 Ex, SE32, SE35, SE36 or 8611) which can be connected quickly and easily with a bayonet fitting.
The Bürkert "inLine Quarter-Turn" technology is a construction that ensures leak-free operation.
The transmission of the blade wheel revolutions to the transmitter is done contact-free by means of permanent magnets integrated in the blade wheel. The transmitter can be mounted or dismantled without opening the pipe. A running process does not need to be interrupted.
This text is machine translated.
The compact sensor fitting (S030) must be equipped with a Bürkert transmitter (type SE30, SE30 Ex, SE32, SE35, SE36 or 8611) which can be connected quickly and easily with a bayonet fitting.
The Bürkert "inLine Quarter-Turn" technology is a construction that ensures leak-free operation.
The transmission of the blade wheel revolutions to the transmitter is done contact-free by means of permanent magnets integrated in the blade wheel. The transmitter can be mounted or dismantled without opening the pipe. A running process does not need to be interrupted.
This text is machine translated.
