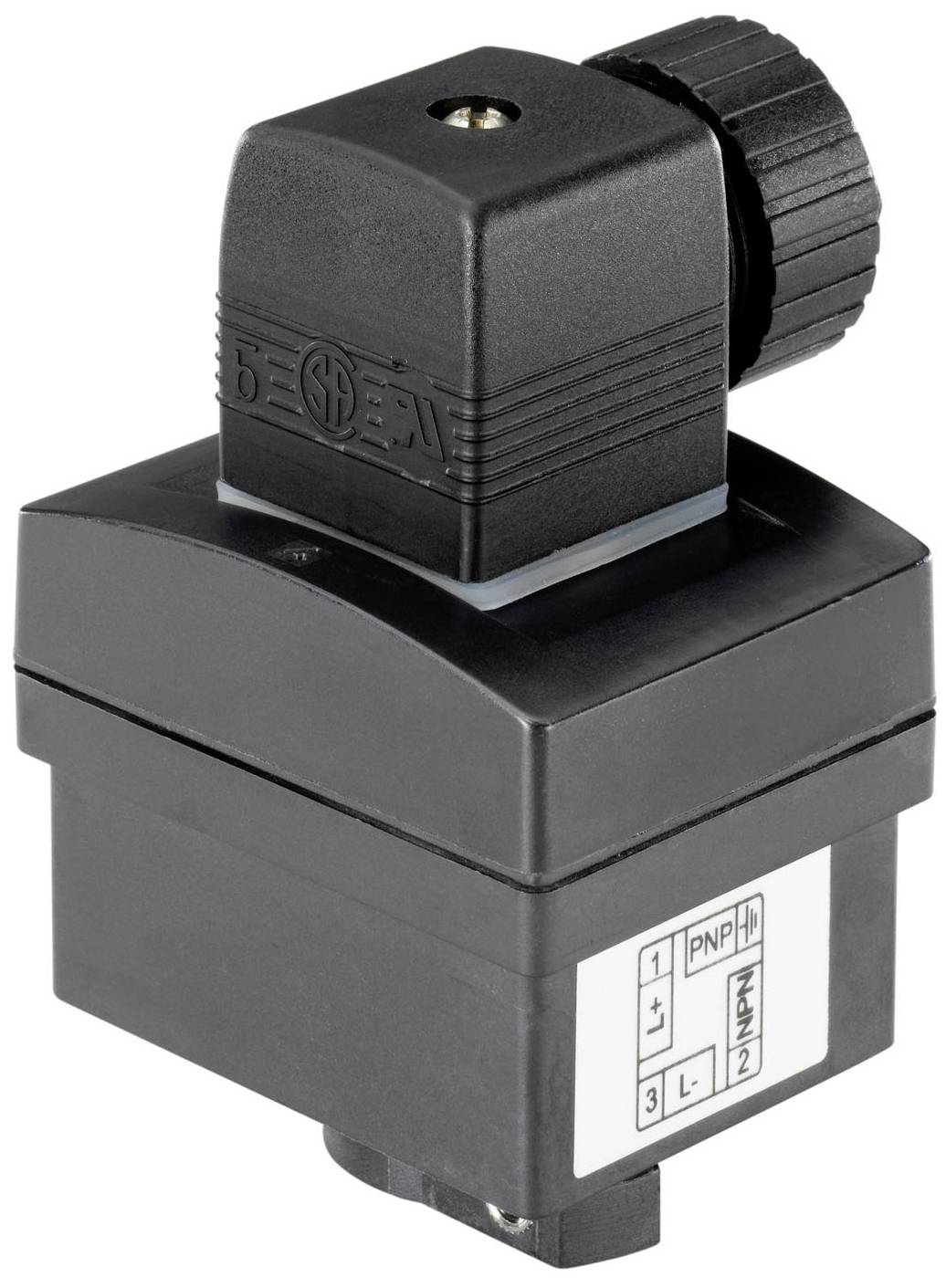

Bürkert Vane flow sensor SE30 423914 1 pc(s)
Product type
Vane flow sensor
Type
SE30
Connector
Plug
Outputs
NPN
Material
Polycarbonate (PC)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Pressure & Temperature - Temperature Medium min -15 °C.
- Pressure & Temperature - Temperature Medium max. 100 °C.
- Pressure & temperature - ambient temperature min: -15 °C.
- Pressure & temperature - temperature Surroundings max. 60 °C
- Inputs/outputs - output 1 digital type: Transistor
- Inputs/outputs - output 1 digital transistor contact free 0.01 A
- Inputs/outputs - output 1 digital transistor Connection NPN: Yes
- Inputs/outputs - output 1 digital transistor Connection PNP: No.
- Electrical connection - Electrical connection 1 Type: Connector picture Form A according to DIN EN 175301-803
- Electrical connection - Electrical connection 1 Number: 1 pieces
- Electrical connection - Electrical connection 1 Number of contacts: 4 pieces
- Electrical connection - Device plug in the range of supply: Enclosed
- Electrical connection - Device socket Art. No. - Type: 00572264 - 2518
- Electronics - Fittings Electronics Interface: inLine
- Functions - continuous measurement: Yes
- Functions - Dosage: No.
- Functions - Switch: No.
- Functions - Local parameterization: No.
- Functions - Parameterization disconnected: No.
- Functions - Fixed parameterization: No.
- Device Properties - Product Sub-Group: Flow
- Device features - Setup device: Bayonet
- Measured values - flow (volume): Yes
- Measured Values - Flow (Ground): No.
- Measured values - temperature: No.
- Measured values - Density: No.
- Measured values - concentration 1: No.
- Measured Values - Accuracy Volume flow in relation to measured value: 1%
- Protection class - protection class of measuring device (IP): IP65
- Sensor type: Impeller/oval wheel
- Sensor – impeller measurement principle Detection: Hall
- Software / communication - display type: No display
- Voltage - DC voltage min.: 12 V
- Voltage - DC voltage max. 36 V.
- Voltage - battery voltage: No.
- Materials - Electronics housing Material Category: Plastics
- Materials - electronics housing Material: PC (polycarbonate)
- Materials - Electronic casing Cast: Resin
- Materials - Cover Material: PC (Polycarbonate)
- Product type
Vane flow sensor
- Type
SE30
- Connector
Plug
- Outputs
NPN
- Material
Polycarbonate (PC)
- Enclosure material
Polycarbonate (PC)
- Media temperature (min.)
-15 °C
- Max. media temperature
100 °C
- Accuracy ±
1 %
IP65
- Min. ambient temperature
-15 °C
- Max. ambient temperature
60 °C
- Content
1 pc(s)
- UKCA
yes
