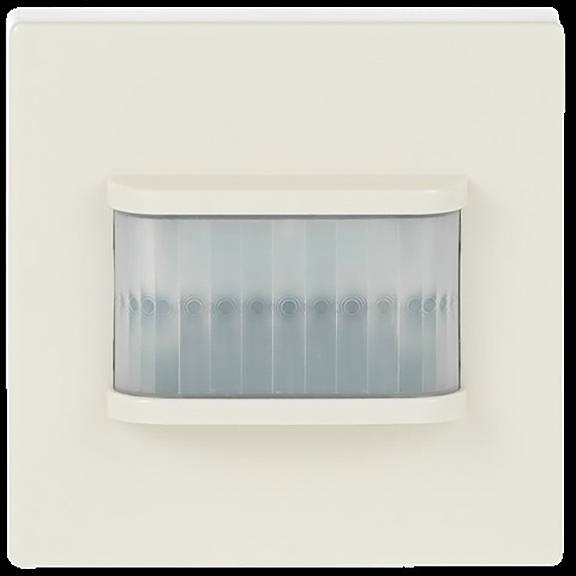

Busch-Jaeger 2CKA006132A0364 Flush mount Motion detector
EAN:
Part number:
Item no:
Technical specifications
- Design: Motion detector
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: white
- Halogen-free: Yes
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Material quality: Thermoplastic
- RAL number (similar): 1013
- Suitable for protection class (IP): IP20
- Response brightness adjustable: No.
- Max. Range to one side: 6 m.
- Max. Range: Front 6 m
- Capturing field Diameter on floor: 6 m.
- Horizontal coverage angle: 0..180°
- Operating mode switch: No.
- Staircase monitoring: Yes
- Min Switch-on time 10 seconds
- Max. duty cycle 17 min
- Constant light control: No.
- HVAC activation: No.
- Network-compatible: No.
- Suitable for wireless transmission: No.
- Low-level detection/back field monitoring: No.
- Installation height 1.1 m
- Response sensitivity adjustable: No.
- Teach-Function for Response Brightness: No.
- Dimming function with dimming element: No.
- Animal slope: No.
- With orientation light: No.
- Product type
Motion detector
- Mounting type
Flush mount
- Similar RAL
1013
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3550425 Busch-Jaeger 2CKA006132A0364 Flush mount Motion detector
Description
Motion detectors with up to 4 channels
The bus connection takes place via the supplied bus terminal.
With integrated KNX bus coupler.
Design line: Platform 63, future® linear, solo®, karat®, Busch-dynasty®
Design line variant: Future®, future® linear
Product line: KNX
This text is machine translated.
The bus connection takes place via the supplied bus terminal.
With integrated KNX bus coupler.
Design line: Platform 63, future® linear, solo®, karat®, Busch-dynasty®
Design line variant: Future®, future® linear
Product line: KNX
