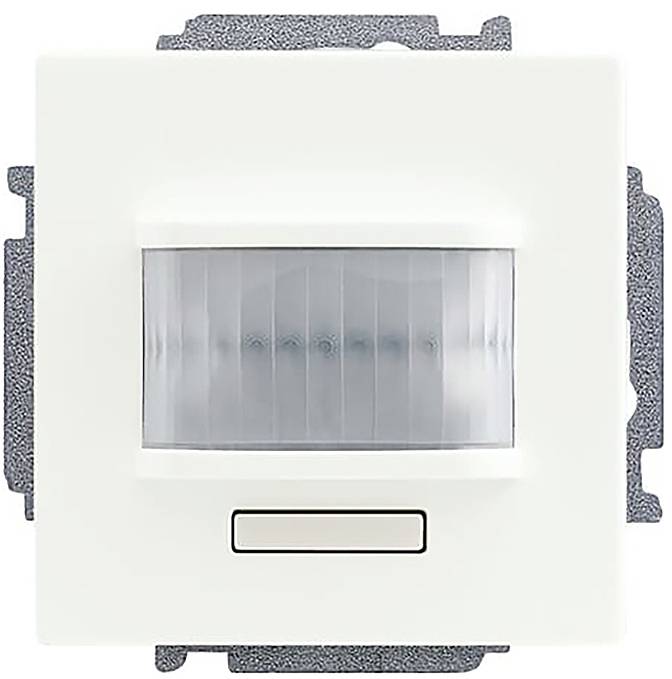

Busch-Jaeger 2CKA006200A0062 Flush mount Motion detector/actuator 180 °
EAN:
Part number:
Item no:
Technical specifications
- Height: 71 mm
- Width 71 mm
- Depth: 56 mm
- Mounting depth: 32 mm
- Design: Motion detector
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: Studio white
- Surface protection: Painted
- Design of surface: Matt
- KNX bus system: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Other
- Number of channels: 1
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Bidirectional radio: Yes
- With bus connection: No.
- Min Depth of the device socket 32 mm
- Material quality: Thermoplastic
- RAL number (similar): 9016
- Response brightness adjustable: Yes
- Optimum mounting height 1.1 m.
- Max. Range to one side: 3 m.
- Max. Range: Front 6 m
- Angle of coverage vertical 19°
- Horizontal coverage angle 180°
- Staircase monitoring: Yes
- Min Switch-on time 30 seconds
- Max. duty cycle 30 min
- Animal slope: Yes
- Extension input: Yes
- Switch output 2300 W
- Product type
Motion detector/actuator
- Detection angle
180°
6 m
- Mounting type
Flush mount
- Operating voltage
230 V AC
- Switching capacity
2300 W
- Similar RAL
9016
- Width
71 mm
- Height
71 mm
- Dim
(W x H) 71 mm x 71 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3551889 Busch-Jaeger 2CKA006200A0062 Flush mount Motion detector/actuator 180 °
Description
Please use successor article. Combination of 62762-884-WL (2CKA006200A0175) and 64811 U (2CKA006800A3041).
Motion detector/switch actuator 1-fold, wireless for Busch-free@home®
With selection lens for capturing with animal cutters.
Communication with the free@home system takes place wirelessly.
For automatic switching of Busch-free@home® actuators as a function of motion and brightness.
Post-run time of the actuator can be programmed via the web interface of the system access point.
For switching 230 V~ consumers.
With integrated switch actuator
Switching function is also available without prior programming (pre-configured).
Configuration can be changed subsequently via the web interface (groups, scenes, ).
3-conductor connection technology (neutral conductor required).
With 230 V extension input (on/off).
With snap fastener
Programming via the Web interface of the System Access Point.
For more information on commissioning and operation, refer to the System Manual and the Online User's Guide.
Design line: Platform 63, future® linear, Busch-aXcent®, karat®
Design line variant: Future® linear - matt, Busch-aXcent®, Busch-aXcent® pure
Product line: Busch-free@home® Wireless, Busch-free@home®
This text is machine translated.
