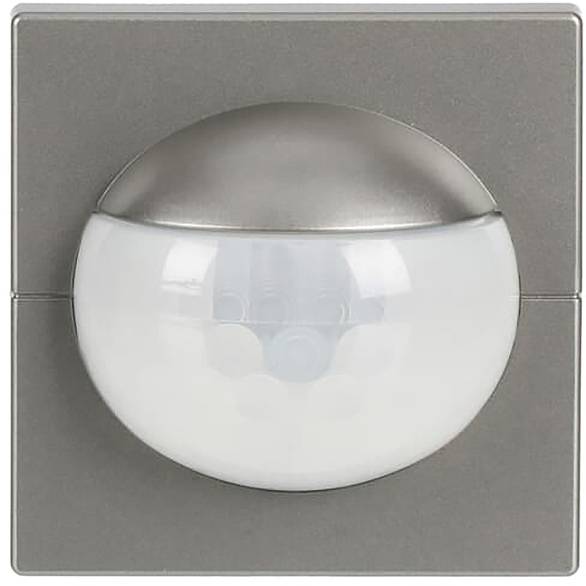

Busch-Jaeger 2CKA006200A0248 Flush mount Motion detector and brightness sensor Relay Stainless steel Non-stop lighting m
EAN:
Part number:
Item no:
Technical specifications
- Design: Motion detector
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: Stainless steel
- Halogen-free: Yes
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Material quality: Thermoplastic
- Suitable for protection class (IP): IP20
- Response brightness adjustable: Yes
- Max. Range to one side: 8 m.
- Max. Range: Front 8 m
- Horizontal coverage angle: 13..180°
- Operating mode switch: Yes
- Staircase monitoring: Yes
- Min Switch-on time 30 seconds
- Max. duty cycle 30 min
- Constant light control: No.
- HVAC activation: No.
- Network compatible: Yes
- Suitable for wireless transmission: Yes
- Low-level detection/back field monitoring: No.
- Installation height 2.2 m
- Response sensitivity adjustable: No.
- Teach-Function for Response Brightness: Yes
- Dimming function with dimming insert: Yes
- Animal slope: No.
- With orientation light: No.
- Switch-off delay, self-learning: No.
- Motion detector/pushbutton combination: Yes
- Product type
Motion detector and brightness sensor
8 m
- Mounting type
Flush mount
- Contact type
Relay
- Factory colour
Stainless steel
- Height
31 mm
- features
Non-stop lighting mode
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548612 Busch-Jaeger 2CKA006200A0248 Flush mount Motion detector and brightness sensor Relay Stainless steel Non-stop lighting m
Description
Motion sensor with ambient light measurement
For automatically switching consumers depending on motion and brightness.
Push button function is possible at any time
For detection to the ground.
For detection in staircases.
With 4 recording levels.
In combination with dimmer insert Flex: Lighting dimmer function and optional light value storage.
With time-controlled basic lighting function.
With timer-controlled night-glare protection function.
With activated switch-off warning in case of staircase operation.
Compatible with all Flex inserts.
Works with free@home wireless.
Remote control via Bluetooth via Smartphone/tablet APP.
Programming via Bluetooth with the Busch-free@home APP or via the web-interface of the system access point.
Multi lens: Also suitable for mounting height of 2.20 m.
Extension of the detection area by main/extension combination.
Additional switch-on possibility via push-button input at the flush-mounted application.
Timer with Astro function.
Automatic summer/winter time adjustment (can be switched off).
With continuous/continuous-off function.
With teach-in function of the brightness switching threshold.
With brightness-independent test mode for evaluating the detection area.
With detection display in test mode.
Monitoring density: 54 sectors with 224 switching segments.
Switch-off delay: 10 s to 30 min or short-time pulse adjustable to 1 s.
For relay insert Flex, 1-way, 64811 U.
For relay insert Flex, 2-way, 64821 U.
For e-contact-insert Flex,1-way, 64814 U.
For LED push-button dimmer use Flex, 64851 U.
For extension use Flex, 64891 U.
Mounting height 31 mm
Please order the appropriate UP-insert separately.
The range specifications refer to an ambient temperature of 21 °C.
Design line: Pure stainless steel
Product line: Busch-Flextronics® Wireless, Busch-free@home® Wireless, Busch-free@home®
