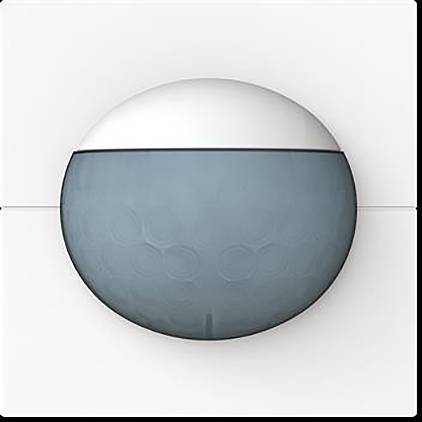

Busch-Jaeger 2CKA006200A0308 Flush mount Motion detector and brightness sensor Relay Non-stop lighting mode
EAN:
Part number:
Item no:
Technical specifications
- Design: Motion detector
- Mounting type: Flush-mounted
- Colour: white
- Halogen-free: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Material quality: Thermoplastic
- RAL number (similar): 9016
- Suitable for protection class (IP): IP20
- Max. Range to one side: 8 m.
- Max. Range: Front 8 m
- Horizontal coverage angle: 13..180°
- Min Switch-on time 30 seconds
- Max. duty cycle 30 min
- With orientation light: No.
- Product type
Motion detector and brightness sensor
8 m
- Mounting type
Flush mount
- Contact type
Relay
- Similar RAL
9016
- Height
31 mm
- features
Non-stop lighting mode
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548457 Busch-Jaeger 2CKA006200A0308 Flush mount Motion detector and brightness sensor Relay Non-stop lighting mode
Description
Motion sensor with ambient light measurement
For automatically switching consumers depending on motion and brightness.
Push button function is possible at any time
For detection to the ground.
For detection in staircases.
With 4 recording levels.
In combination with dimmer insert Flex: Lighting dimmer function and optional light value storage.
With time-controlled basic lighting function.
With timer-controlled night-glare protection function.
With activated switch-off warning in case of staircase operation.
Compatible with all Flex inserts.
Works with free@home wireless.
Remote control via Bluetooth via Smartphone/tablet APP.
Programming via Bluetooth with the Busch-free@home APP or via the web-interface of the system access point.
Multi lens: Also suitable for mounting height of 2.20 m.
Extension of the detection area by main/extension combination.
Additional switch-on possibility via push-button input at the flush-mounted application.
Timer with Astro function.
Automatic summer/winter time adjustment (can be switched off).
With continuous/continuous-off function.
With teach-in function of the brightness switching threshold.
With brightness-independent test mode for evaluating the detection area.
With detection display in test mode.
Monitoring density: 54 sectors with 224 switching segments.
Switch-off delay: 10 s to 30 min or short-time pulse adjustable to 1 s.
For relay insert Flex, 1-way, 64811 U.
For relay insert Flex, 2-way, 64821 U.
For e-contact-insert Flex,1-way, 64814 U.
For LED push-button dimmer use Flex, 64851 U.
For extension use Flex, 64891 U.
Mounting height 31 mm
Please order the appropriate UP-insert separately.
The range specifications refer to an ambient temperature of 21 °C.
Design line: Busch-art linear®
Design line Variant: Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - real material
Product line: Busch-Flextronics® Wireless, Busch-free@home® Wireless, Busch-free@home®
This text is machine translated.
