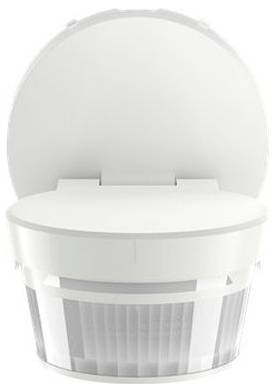

Busch-Jaeger 2CKA006200A0861 Ceiling Motion detector 280 ° White
EAN:
Part number:
Item no:
Technical specifications
- Product type
Motion detector
- Detection angle
280°
16 m
- Mounting type
Ceiling
- Operating voltage
230 V
- Switching capacity
2300 W
- Factory colour
White
- Similar RAL
9016
- Type
Low-level detection, can be networked
- Width
110 mm
- Height
124.4 mm
- Dim
(W x H x D) 110 x 124.4 x 150 mm
- Weight
430 g
- Depth
150 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3818820 Busch-Jaeger 2CKA006200A0861 Ceiling Motion detector 280 ° White
Description
Electronic motion detector for detecting thermal movements.Setting the basic functions optionally via Poti or Busch-free@home® Next APP.Outputs: 1 NO, potential-bound.Combined with other Busch-Flextronics® wireless components.Can be used as a wireless device in Busch-free@home®. Display of detection and operating modes.Floor and back field monitoring.Flexible mounting by three joints.Level adjustment: +/- 30°.Profile lens for best surveillance: 110 sectors with 440 switching segments. Brightness-independent test mode for evaluating the detection range.Integrated dismantling difficulty.Additional possibility of switching on via Busch-free@home® wireless sensors as extension.Integrated twilight sensor - threshold adjustable.Optionally "angular design" via Busch-Wächter® frame 6851/DR-xxx (not included in the delivery).Automatic suppression.Automatic range stabilization Summer/winter mode.When used in conjunction with a relay/contactor is Art. RC No. 6899 to provide.Mounting:- One-point mounting possible. Suitable for wall and ceiling mounting. For corner mounting in connection with corner adapter (6851/EA-xxx) (not included)- Multi cable entry at the back and side panel with sealing collar mounting on ISO switch box (68 mm) possible- connecting terminals with lever for one, fine or multi-wired conductor Optional adjustment of the basic functions via:- Switch-off delay: 10 s to 30 min, short-term pulse switching threshold twilight, test operating Busch-free@home® Next APP/Busch-free@home®:- Switch-off delay: 10 s to 30 min, short-time pulse threshold twilight test mode, duration ON, duration OFF comfort function (duration on at dusk, watchful operation from time)- timer (timer for the connected lighting)- detection field left/front/right in 3 levels- feedback detection sensitivity - mode (normal, staircase, continuous operation) Measured values/sensor for use in actions/alarms as switching thresholds: lux brightness limit: 0.5 to 1,000 1,000 to 100,000 Lux.Design line: PROproduct line: Busch-free@home® wireless, Busch-free@home®
